ANT- TONA - F9FT -  70 cm - 21 element

 "DX" version  (=432 MHz)

18.1 dBi - (according to the TONA)



element

lengh
[mm]

distance from reflector [mm]

rem.
1 - Reflector 360 0
2 - Driven element 325 x 45 136  see fig 2 &  3
3 - Director 1 325 183
4 - Director 2 315 253
5 - Director 3 305 434
6 - Director 4 305 619
7 - Director 5 300 818
8 - Director 6 300 1053
9 - Director 7 300 1323
10 - Director 8 295 1594
11 - Director 9 290 1864
12 - Director 10 290 2133
13 - Director 11 290 2404
14 - Director 12 290 2674
15 - Director 13 285 2944
16 - Director 14 285 3211
17 - Director 15 285 3487
18 - Director 16 280 3758
19 - Director 17 280 4028
20 - Director 18 275 4292
21 - Director 19 275 4568

Boom cca 4575   17 x 17 mm
Bazooka 130   D = 14, d = 12 (see fig.1 & 4)
all element      D = 4 mm

Stacking distance
E plane 1,62 m   for minimum side lobes
H plane 1,58   for minimum side lobes


Fig. 1 Bazooka

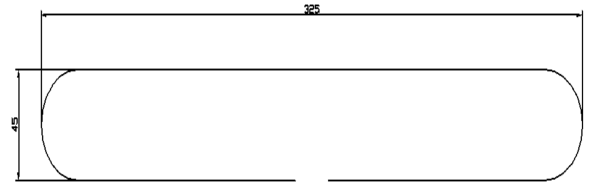

Fig. 2 Driven element

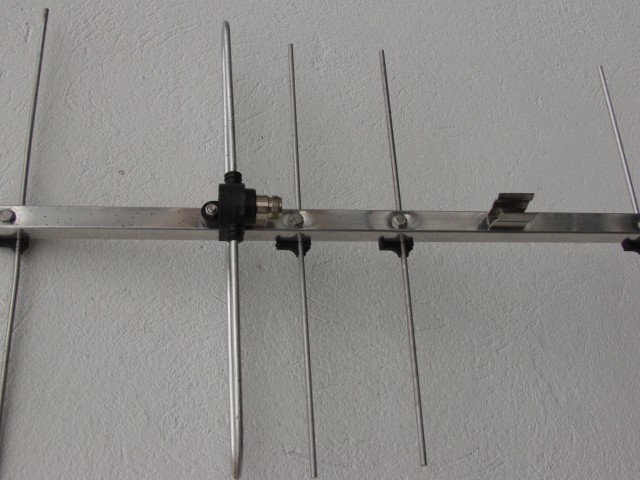

Fig. 3 Part with driven element

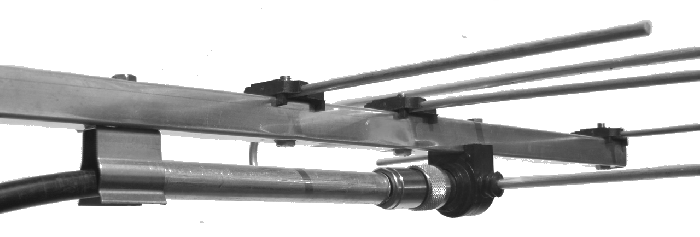

Fig. 4 Bazooka
