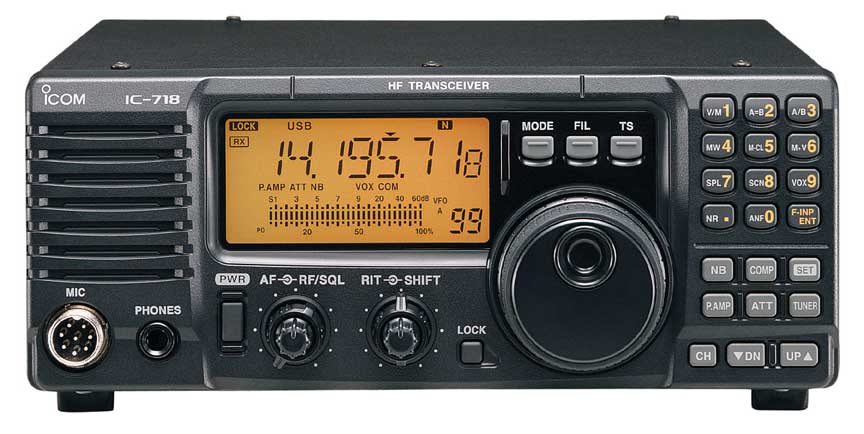

GENERAL
- Frequency Range:
- RX 0.030-29.999999 MHz (guaranteed range: 0.5-29.999999 MHz)
- TX 1.800-1.999999 MHz, 3.500-3.999999 MHz (varies with version)
- 7.000-7.300000 MHz, 10.100-10.150000 MHz
- 14.000-14.350000 MHz, 18.068-18.168000 MHz
- 21.000-21.450000 MHz, 24.890-24.990000 MHz
- 28.000-29.700000 MHz
- Mode: USB, LSB, CW, RTTY (FSK), AM
- No. of memory channels: 101 (99 regular, 2 scan edges)
- Frequency resolution: 1 Hz
- Frequency stability: Less than ±200 Hz from 1 minute to 60 minutes
after power on.
After that rate of stability less than ±30 Hz/hr. at +25° (+77F).
Temperature fluctuations 0°C to +50°C (+32F to +122F) less than ±350
Hz.
- Power supply requirement: 13.8 V DC ±15% (negative ground)
- Current drain (at 13.8 V DC):
- Receive: stand-by 1.3 A ; max audio 2.0 A
- Transmit: max. power 20.0 A
- Usable temperature range: -10°C to +60°C (+14F to+140F)
- Antenna connector: SO-239 (50 ohm)
- Dimensions: 240mm (W) x 95mm (H) x 239mm (D)
(projections not included) 9 7/16in (W) x 3 3/4in (H) x 9 13/32in (D)
- Weight: 3.8 kg; 8 lb 6 oz
- ACC connector: 13-pin
- REMOTE connector: 2-conductor 3.5 (d) mm; (1/8")
TRANSMITTER
- Modulation system:
- SSB: Balanced modulation
- AM: Low level modulation
- Output power:
- SSB, CW, RTTY: 5-100W
- AM: 2-40W
- Spurious emissions: Less than -50 dB below peak output power
spurious freq.; below 30 MHz: -50dB, above 30 MHz: -60dB
- Carrier suppression: More than 40 dB
- Unwanted sideband: More than 50 dB
- Microphone connector: 8-pin connector (600 ohm)
- KEY connector: 3 conductor 6.5 (d) mm (1/4")
- SEND connector: Phono (RCA)
- ALC connector: Phono (RCA)
RECEIVER
- Receiver system: Double-conversion superheterodyne
- Sensitivity: (10 dB S/N)
- SSB, CW, RTTY: 0.16 µV (1.8-29.999999 MHz)
- AM: 13 µV (0.5-1.799999 MHz)
- AM: 2 µV (1.8-29.999999 MHz)
- SQL sensitivity: Less than 5.6 µV (SSB)
- Selectivity:
- SSB, CW, RTTY: More than 2.1 kHz/-6 dB
- Less than 4.5 kHz/-60 dB
- AM: More than 6.0 kHz/-6 dB
- Less than 20 kHz/-40 dB
- Spurious and image rejection ratio: More than 70 dB (1.8-29.999999
MHz)
- Audio output power: More than 2.0W at 10% distortion with at 8 ohm
load (at 13.8 V DC)
- RIT variable range: ±1200 Hz
- PHONES connector: 3-conductor 6.5 (d) mm (1/4")
- EXT SP connector: 2-conductor 3.5 (d) mm (1/8") /8 ohms
All stated specifications are typical and subject to
change without notice or obligation
SUPPLIED ACCESSORIES:
- Hand microphone
- Spare fuses
- DC power cable
OPTIONS
- IC-PW1 HF+50 MHz 1kW Linear Amplifier
- AH-2b antenna element
- AH-4 HF+50 MHz Automatic antenna tuner
- AT-180 automatic antenna tuner
- PS-85 DC Power supply
- SM-20 desktop microphone
- SM-8 desktop microphone
- SM-6 desktop microphone
- HM-36 hand microphone (same as supplied)
- CT-17 CI-V level converter
- CR-338 high stability crystal unit
- UT-102 voice synthesizer
- UT-106 DSP Unit
- Filters
- FL-52A CW/RTTY narrow; 500 Hz/-6 dB
- FL-53A CW narrow; 250 Hz/-6 dB
- FL-96 SSB wide; 2.8 kHz/-6 dB
- FL-222 SSB narrow; 1.8 kHz/-6dB
- FL-257 SSB wide; 3.3 kHz/-6dB
- AH-710 folded dipole antenna
- SP-7 external speaker
- SP-20 external speaker
- SP-21 external speaker
- OPC-599 ACC 13 pin cable adapter
- IC-MB5 mobile bracket
- MB-23 carrying handle
|
