Direct
Digital Frequency Synthesis
Two 10-bit and three 8-bit direct digital synthesizers are used in the
FT-1000MP local oscillator system. Driven by a single TCXO master
oscillator, these synthesizers produce extremely fine tuning in thirteen user selectable steps down to 0.625 Hz. The multiple DDS system provides
pure local signals which form the foundation of the outstanding receiver
and transmitter performance. A choice of optional TCXOs ensures
state-of-the-art stability--ideal for digital operations.
Shuttle-jog™
Tuning Knob
The Shuttle-jog™ Tuning Knob may be routed in either direction and
provides efficient QSY instead of spinning the VFO knob. The more the
"jog" ring is moved from the center, the progressive frequency
steps increase. The Shuttle- jog™ tuning steps and stepping speed are
accessible from the Menu system. In addition to the revolutionary new
Shuttle-jog™ Tuning Knob, the FT-1000MP has five other tuning methods,
Main and Sub VFO Tuning Knobs, Direct Keypad Entry, Panel and Microphone
Up/Down Keys and Memory/VFO CH Selector.
|
Enhanced
Digital Signal Processing (EDSP)
The FT-1000MP introduces the Yaesu exclusive Enhanced Digital Signal
Processing system to the world of HF operating. Operational both in
receive and transmit modes, EDSP provides 4 random-noise reduction
protocols, audio enhancement with 4 voice response equalization programs
for both RX and TX, and an automatic notch filter which identifies and
eliminates multiple interfering carriers or heterodynes. Selectable
contours of the EDSP bandpass filtering offer low, mid, and high- range
roll-off responses, allowing the operator to cope with changing
interference conditions. Improved signal-to-noise ratio, razor-sharp
selectivity curves, and outstanding transmitted signal clarity are yours
with the exclusive EDSP system.
EDSP IF
Demodulating & Processing
For SSB, CW and AM, the receiver 3rd IF output is applied to a special
10.24 kHz EDSP IF for demodulation and processing. The selectable digital
bandpass filters provide optimized bandwidth and frequency response.
EDSP
Noise Reduction
In addition to a highly-effective dual-mode IF Noise Blanker, the
FT-1000MP boasts an EDSP Noise Reduction system with 4 noise reduction
protocols to help with changing noise characteristics.
EDSP
Contour Selections
Unique DSP filter networks aid in QRM reduction. Select Low, Mid, or
High-cut responses or band pass filters from the front panel. Use the
different contour selections to enhance intelligence recovery under
different interference situations.
EDSP RX
Audio Equalization
Three EDSP RX equalization contours provide the operator with unmatched
flexibility in reducing interference.
EDSP TX
Modulation and Equalization
Early-stage transmitted SSB audio is applied directly to EDSP circuitry
for processing. EDSP fitter parameters can be matched to voice
characteristics. The result is optimum audio tailoring and sound clarity!
EDSP TX
Bandpass Filtering
The EDSP system of the FT-1000MP allows selection of one of four low
frequency cut-off parameters, so as to provide the best match to the
operator's voice characteristics.
EDSP
Automatic Multiple Notch Filter
Multiple notch capability within the AF passband is possible with EDSP.
The digital notch circuitry continually analyses the AF passband and the
correlation of the signals present, identifying and notching out
heterodynes as they appear.
Collins®
Filters
Well known since the early '505, Collins® Mechanical Filters have
dominated the high end SSB, CW and, AM filter market. The built in Collins®
Mechanical Filter operates at a center frequency of 455 kHz with a band
width of 2.75 kHz (500 Hz Collins® Mechanical Filter is optional.)
Collins® Mechanical Filters ensure superior IF performance, thanks to
their fiat passband response, excellent skirt selectivity and very low
inter- modulation distortion. The Collins® Mechanical Filters used in the
FT-1000MP are manufactured to the same standards as those used by
commercial airlines, ships at sea, and the armed forces. These filters are
ideal for voice, CW or digital modes of operation.

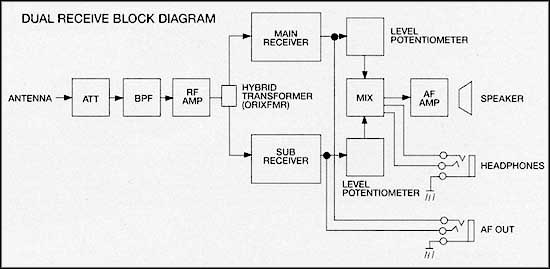

Dual
Receive
Both dual and monaural receive are possible with stereo headphones
(YH-77STA). Headphone configurations include: * Mono-Both Main and Sub
receiver audio combined equally in both ears. * Stereo 1-Main receiver
audio in left ear; Sub receiver audio, right ear. * Stereo 2-Audio from
each channel in each ear with Main receiver audio enhanced, left ear; Sub
receiver audio, enhanced, right ear. Constant level stereo audio is also
provided via the rear panel AF output jack.
AM
Synchronous Tuning
Ideal for shortwave listening, the synchronous detection system of the
FT-1000MP provides less fading and improved signal fidelity, compared to
previous AM detectors. Additionally, both 2.4 kHz and 6 kHz IF filter
bandwidths may be used in the AM mode. Or simply use the Dual Receive
capability of the FT-1000MP on opposite sidebands (LSB and USB) as another
method to reduce interference.
User-friendly
Memory System
The FT-1000MP contains 99 regular memories, 9 special "band
limit" memories, and 5 QMB (Quick Memory Bank) memories. Each stores
both RX and TX frequencies and modes, IF bandwidths, Clarifier status, and
"split" status. All memories can be freely tuned or copied to
another memory. The QMB feature allows storing a station quickly without
overwriting one of the "Main" memories.
World-Class
CW Performance
The FT-1000MP is unmatched in its array of features especially designed
for CW operation at the highest levels of competition. Included are:
- Full break in keying with programmable envelope delay.
- Built in electronic keyer with memory (external keypad required).
- CW Spot for easy zero beating on desired stations.
- CW Pitch control for BFO and side tone/spot frequency, adjustable from
300 to 1050Hz.
- CW Reverse selection, allowing the use of either USB or LSB BFO
injection.
- 2 key/paddle input jacks, one each on front and back panels.
- CW Tuning Indicator on the Main display.
CAT
INTERFACE
The FT-1000MP is ready for direct connection to a computer's RS-232C
serial port. The built in RS-232C computer interface of the FT-1000MP
utilizes a convenient DB-9 serial connector from the level converter.
An
"All-in-one" Performance Package
The FT-1000MP includes a compact switching regulator power supply,
specifically designed for low noise and a wide acceptance of input
voltages (90-129V and 180-258V). 13.5 V DC can also be supplied from an
external power supply DC-only model (FT-1000MP/DC) also available. For
base, emergency or DXpedition use, the FT-1000MP is ready for action.
Cascaded
RF/IF Filtering
In addition to 11 receiver input bandpass filters, the FT 1000MP includes
3 automatically selected high-pass filters which provide superb immunity
from 2nd-order IMD. IF filter selections can be cascaded to combat QRM and
tailor received audio. With 2 banks of independently selectable filters,
one bank each for the 8.215 MHz 2nd IF and 455 kHz 3rd IF the FT-1000MP
provides the solid IF filtering required in today's crowded bands.
Dual
Noise Blankers
The Dual-mode IF Noise Blanker provides outstanding rejection of narrow
impulse type (NB1) noise or wider "woodpecker" type pulses
(NB2). The blanking threshold is adjustable front the front panel.
Expanded
Tuning Scale
The bargraph segment of the meter above the Main frequency display serves
as a dual mode enhanced tuning scale, providing a visual indication of
relative offset during Clarifier ("RIT") operation.
Multi-Color
High-Resolution Display
Never before has such a wealth of information been provided on a
transceiver display. In addition to independent frequency and S-meter
displays for each VFO the display area indicates power output, PA
collector current, SWR ALC level, RF speech processor compression and PA
input voltage, microphone gain level as well as Clarifier offset, memory
information, and directional tuning scale to assist in precise tuning.
QUICK
SPLIT
To expedite set-up of the FT-1000MP in a split DX pile-up the "Quick
Split" feature can be enabled from the menu system. Activated by the
A-B button, the Sub VFO is placed in the same operating mode as the Main
VFO, separated by a convenient offset (e.g."up 5").
Versatile
Scanning
The FT-1000MP includes several scanning functions which are indispensable
in keeping track of activity, These are: *Band Scanning, *Memory Scanning,
*Sub band Limited Scanning. Certain memories may be "tagged" to
be skipped during scanning, such as, for example, WW. The scanner will
resume when the squelch closes or after a preset time delay.
3
Antenna Connectors
The FT-1000MP provides 2 main antenna jacks ("A" and
"B") with front panel selection of the best antenna for current
conditions. Additionally, a separate RX-only antenna such as a low-band
loop may be connected to the RX ANT jack on the rear panel; the
"A" or "B" antenna will then be used for TX and the
low noise loop for RX.
Low-Noise
Local Oscillator System
Providing the foundation for the remarkably clean RX and TX performance,
the local oscillator system of the FT-1000MP is the key component of an
overall commitment to signal purity. High transmitter C/N ratio, an
exceptionally quiet receiver, and quick switching time are the results of
this design philosophy, while the conservative ratings of the 2SC2879 PA
transistors ensure many years of trouble free competition grade
performance.
Digital
Mode Operation
The FT-1000MP is ideal for digital modes! In addition to the dedicated
input/output/PTT jacks for FSK and AFSK operation, the EDSP system
includes 3 filters specially tailored for digital modes. Furthermore, the
frequency display can be programmed to indicate either the center
frequency of packet tone pairs or the actual carrier frequency.
SPECIFICATIONS
|
00 |
GENERAL
|
0 |
0
|
RX
Frequency Range:
|
100
kHz ~ 30 MHz |
TX
Frequency ranges:
|
160
~ 10m amateur bands only |
Freq.
Stability:
|
<±10
ppm (-10°C ~ 50°C) |
0
|
<±2.0
ppm (0°C ~ 50°C) w/TCXO-4 |
0
|
<±0.5
ppm (0°C ~ 50°C) w/TCXO-6 |
Freq.
Accuracy:
|
<±7
ppm (except FM <±500 Hz) |
w/TCXO-4:
|
<±2
ppm (FM <±460 Hz) |
w/TCXO-6:
|
<±0.5
ppm (FM <±460 Hz) |
Operating
Temperature Range:
|
-10°C
~ 50°C |
Emission
Modes:
|
LSB,
USB, CW, AFSK, FSK, AM, FM |
Frequency
Steps:
|
0.625/11.25/2.5/5/10
Hz for SSB, |
0
|
CW,
RTTY & Packet; 100 Hz for AM and FM |
Antenna
Impedance:
|
50
Ohm Unbalanced |
Supply
Voltage:
|
90
~ 129, 180 ~ 258 VAC, 50/60 Hz and 13.5 VDC |
0
|
DC-only
model also available (FT-1000MP/DC) |
Power
Consumption (approx.):
|
2.4A
RX (No Signal) 2.8A RX (signal) |
0
|
19A
TX (100 Watts) |
Dimensions
(WHD):
|
16.4
x 5.4 x 13.9 in (410 x 135 x 347 mm) |
Weight
(approx.):
|
33
lbs. (15 kg.) |
0
|
TRANSMITTER
|
0 |
Power
Output:
|
adjustable
up to 100 watts (25 watts AM Carrier) |
Duty
Cycle:
|
100%
@ 50 watts, 50% @ 100 watts (FM & RTTY, 3-minute TX) |
Modulation
Types:
|
SSB:
J3E Balanced, Filtered Carrier |
0
|
AM:
A3E Low level (early stage) |
0 |
FM:
F3E Variable Reactance |
0
|
AFSK:
J1D, J2D Audio Frequency Shift Keying |
Maximum
FM Deviation:
|
±2.5
kHz |
FSK
Shift Frequencies:
|
170,
425 and 850 Hz |
Packet
Shift Frequencies:
|
200,
1000 Hz |
Harmonic
radiation:
|
at
least 50dB below peak output |
SSB
carrier suppression:
|
at
least 40dB below peak output |
Undesired
sideband suppression:
|
at
least 50dB below peak output |
Audio
response (SSB):
|
not
more than than -6dB from 400 to 2800 Hz |
3rd-order
IMD:
|
-31dB
@ 100 watts PEP, or better |
Microphone
impedance:
|
500
to 600 Ohm |
0 |
|
RECEIVER
|
0 |
Circuit
type:
|
quad-conversion
superheterodyne (triple conversion for FM) |
Intermediate
Frequencies:
|
Main
RX |
Sub
RX |
0
|
70.455
MHz |
47.21
MHz |
0
|
8.215
MHz |
455
kHz |
0
|
455
kHz |
00 |
0
|
10.25
kHz (EDSP) |
0 |
Sensitivity
(For 10 dB S/N): |
IPO |
ON |
OFF |
OFF |
OFF |
Frequency |
150
~ 250 kHz |
250
~ 500 kHz |
0.5
~ 1.8 MHz |
1.8
~ 30 MHz |
0 |
Mode |
SSB,
CW (2.4 kHz) |
5
uV |
4
uV |
2
uV |
0.25
uV |
AM
(6 kHz) |
40
uV |
32
uV |
16
uV |
2
uV |
29
MHz FM (12 dB SINAD) |
- |
- |
- |
0.5
uV |
Selectivity
(-6 / -60 dB): |
Button |
Modes |
Min
-6dB BW |
Max
-60 dB BW |
2.4
kHz |
all
except FM |
2.2
kHz |
4.2
kHz |
2.0
kHz |
all
exc. AM, FM |
2.0
kHz |
3.6
kHz |
500
Hz |
CW,
RTTY, Packet |
500
Hz |
1.8
kHz |
250
Hz |
CW,
RTTY |
250
Hz |
700
Hz |
- |
AM
(Wide) |
4
kHz |
14
kHz |
0 |
FM |
8
kHz |
19
kHz |
Dynamic
Range:
|
108
dB (@ 50 kHz, 500 Hz BW, RF amp off) |
Squelch
sensitivity:
|
1.8
~ 30 MHz: (CW, SSB, AM): <2.0uV |
28
~ 30 MHz: (FM):
|
<0.32uV |
IF
rejection (1.8 ~ 30 MHz):
|
80
dB or better (Main RX) |
0
|
60
dB or better (Sub RX) |
rejection: (1.8 ~ 30 MHz):
|
80
dB or better (Main) |
0
|
50
dB or better (Sub) |
IF
shift range:
|
±1.12
kHz |
Max
audio output:
|
1.5W
into 4 Ohms with < 10% THD |
Audio
output impedance:
|
4
to 8 Ohm |
|
