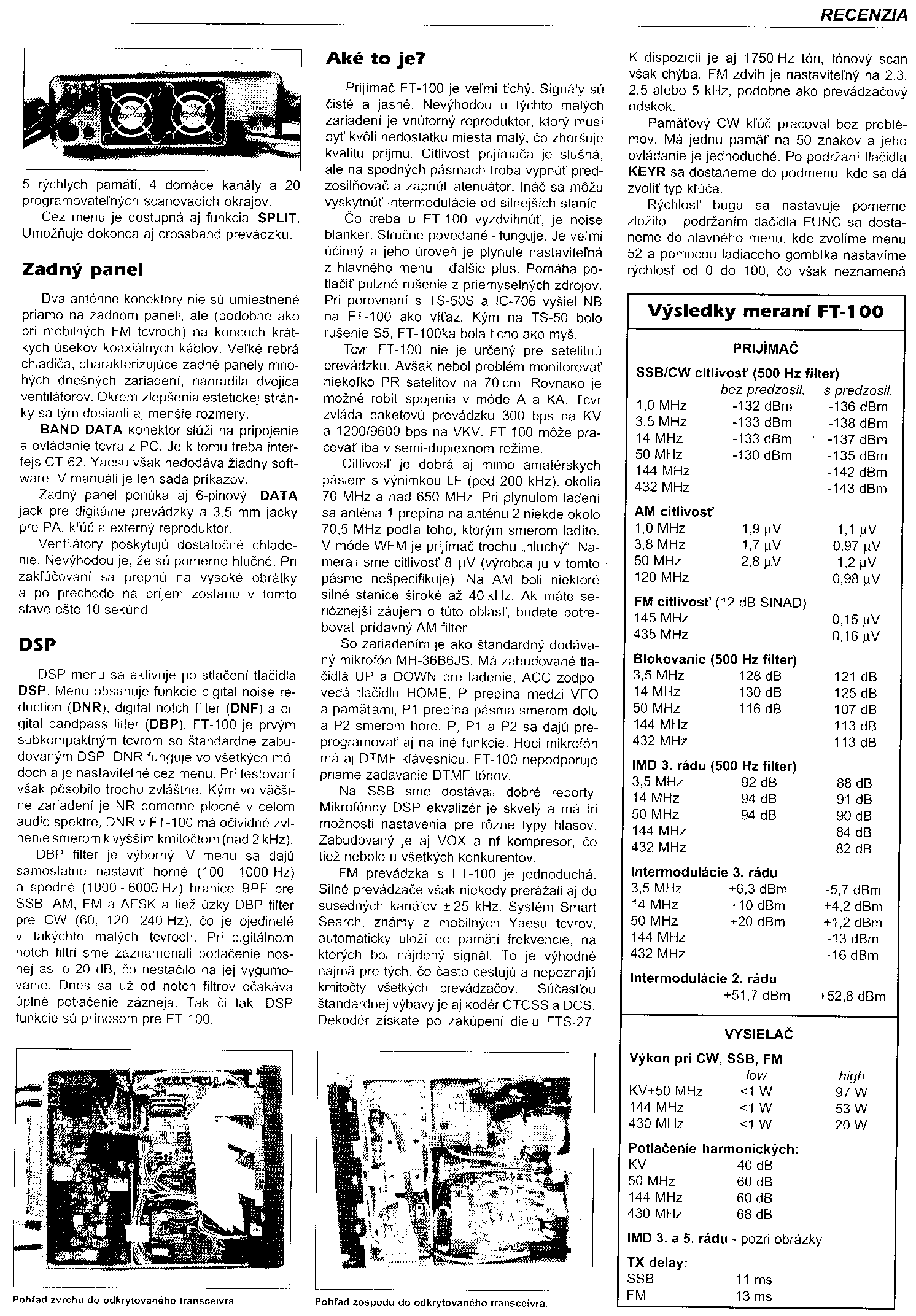

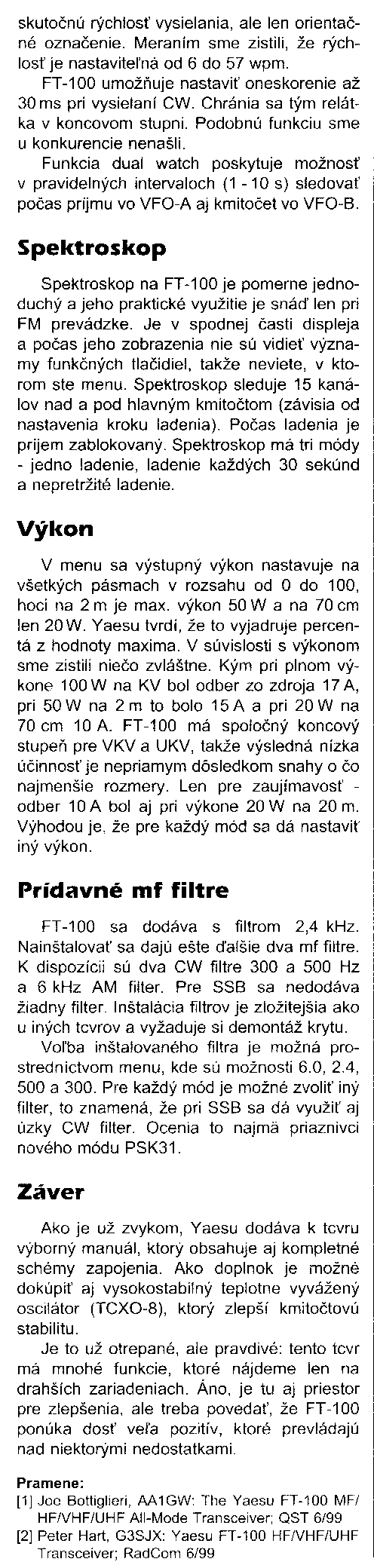

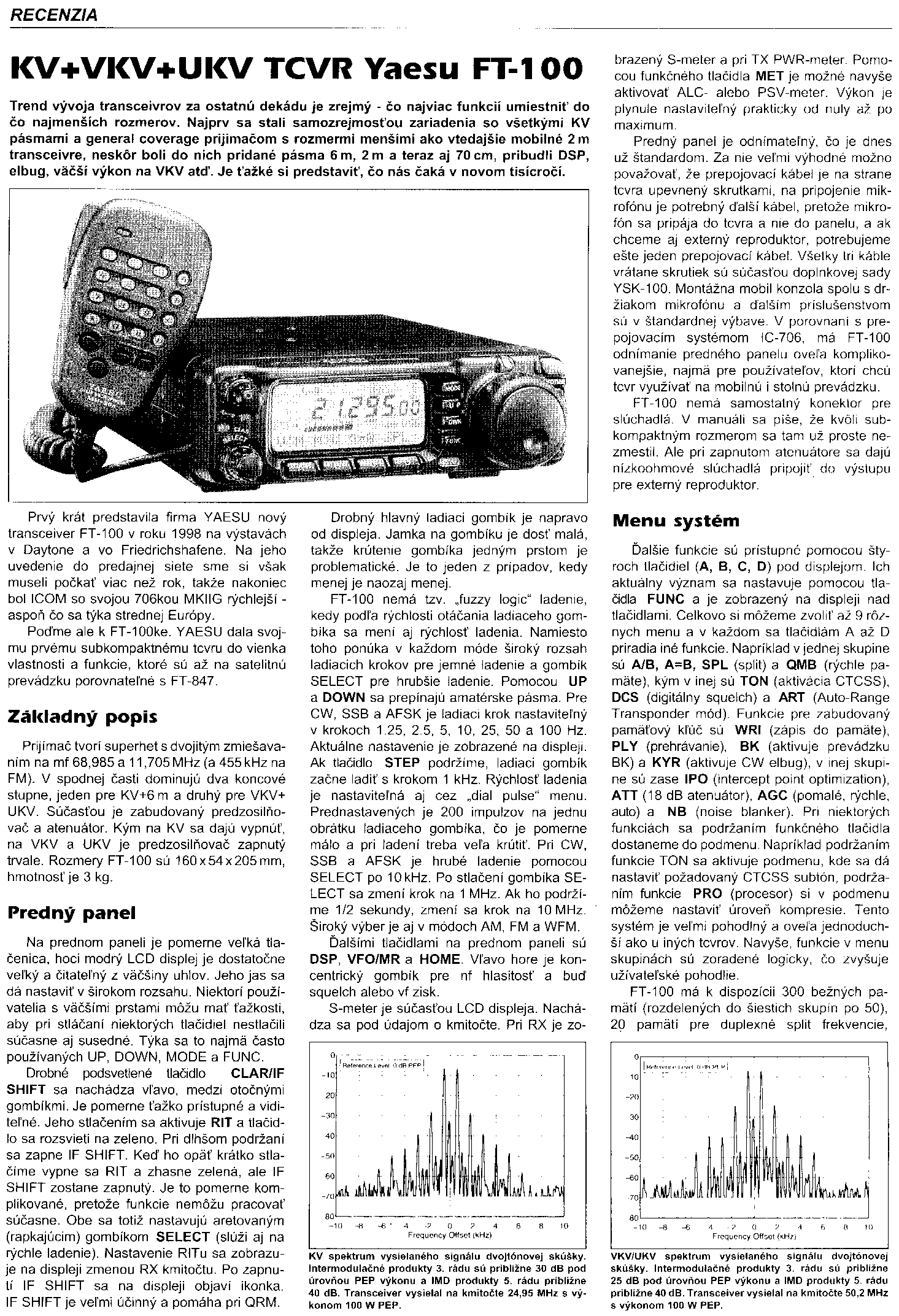

Recenze :

GIF1, GIF2, GIF3 - Radiožurnál 3/99

Odkazy :

http://www.icongrp.com/~sllewd/ft100main.htm
http://www.vartel.com/discussiongroups.htm - bulletin board


SPECIFICATIONS

GENERAL

  • Frequency Coverage:
    Receive: 0.1 - 970 MHz
    Transmit: 160-6 Meters, 2 Meters, 70 Centimeters (Amateur bands only)
  • Mode: A1(CW), A3(AM), A3J(SSB), F1(9600bps Packet), F2(1200bps Packet), F3(FM)
  • Number of Memory Channels: 74 (1 scan edges and 4 call)
  • Antenna Connector: 3xSO-239, 1xN [HF, 6 Meters, 144 MHz, 430MHz, 50 Ohm]
  • Usable Temperature Range: -10°C to +60°C
  • Frequency Stability: Better than ±4 ppm
  • Power Supply Requirement: 13.8 V DC (±10% negative ground)
  • Current Drain (at 13.8 V DC): Transmit max. power: 22A
    Receive standby: max.1,6A
  • Dimensions (approx): 160(W) x 54(H) x 205(D) mm
  • Weight (approx): 3 kg

Transmitter

  • Output Power:
    160-6 m : 100 W (25W AM)
           2 m :  50W (12,5W AM)
       70 cm :  20W (5W AM)
  • Modulation System:
    SSB: Balanced modulation, FM: Variable Reactance, AM Early Stage (Low Level)
  • Spurious Emissions: Harmonics : -40 dB (HF), -60 dB (50/144/430MHz)
                           Non-harmonics : -50 dB (HF), -60 dB (50/144/430MHz)
  • Carrier Supression: More than 40 dB
  • Unwanted Sideband Supression: More than 50 dB
  • Microphone Connector: 8-pin connector (600 Ohm)

Receiver

  • Sensitivity:
    • SSB, CW, RTTY (10 dB S/N):
      • 0.25 µV (1.8-30 MHz)
      • 0.2 µV (50MHz)
      • 0.125 µV (144/430 MHz)
    • AM (10 dB SINAD):
      • 32 µV (0.5-1.799 MHz)
      • 2 µV (HF/6m/144/430MHz)
    • FM (12 dB SINAD):
      • 0.5 µV (28.0-29.99 MHz)
      • 0.5 µV (50 MHz)
      • 0.2 µV (144/430 MHz)
  • Squelch Sensitivity:
    USB,LSB,CW, RTTY - Less than 5.6 µV
    FM - Less than 1.0 µV
  • Selectivity:
    USB, LSB, CW, RTTY - More than 2.2 kHz/-6 dB ; Less than 5,2 kHz/-60 dB
    AM, FM-N - More than 9.0 kHz/-6 dB ; Less than 20 kHz/-40 dB
    FM - More than 15 kHz/-6 dB ; Less than 25 kHz/-50 dB
  • Spurious and Image Rejection Ratio: HF/6m : More than 70 dB,144/430 : More than 60 dB
  • Audio Output Power (at 13.8 V DC): More than 1,5 W at 10% distortion with an 8 Ohm load

SUPPLIED ACCESSORIES

  • Hand microphone
  • Spare fuses
  • DC power cable

OPTIONS

Automatic Antenna Tuners, Antenna Element

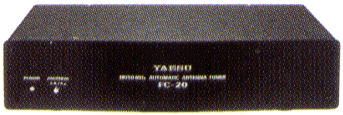

  • FC-20 HF + 50 MHz AUTOMATIC ANTENNA TUNER
  • ATAS-100 Active-Tuning Antenna System      ATBK-100 Antenna Base Kit


DC Power Supplies

  • FP-1030A Base Pwor Supply (30A)

External Speakers

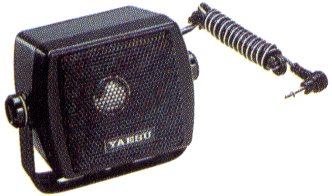

  • SP-7 External Speaker

Microphones

  • MH-36 DTMF Microphone                 MH-42 Condenser microphone


Filters

  • XF-117C CW (500Hz) Filter
  • XF-117CN CW (300Hz) Filter
  • XF-117A AM (6kHz) Filter

Others

  • TCXO-8 High-stability (1ppm) Reference Oscilator


  • FTS-27 CTCSS Decoder Unit


  • MMB-67 Quick Release Bracket             MMB-62 Mobile Remote Head Bracket

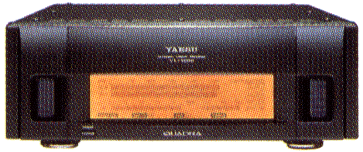

  • VL-1000 Solid-state Linear Amplifier



  • CT-58 Interface Cable for VL-1000                        YSK-100 Separation Kit


  • CT-39 Packet Cable                                       CT-62 CAT Interface Cable


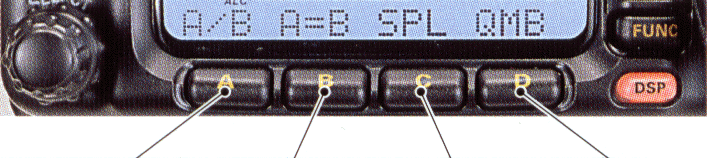

ONE-TOUCH SCROLLING FRONT PANEL

A key

B key

C key

D key

A/B
(VFO A/B Selection)

A=B
(Set VFOs to same freq.)

SPL
(Split VFO Mode)

QMB
(Quick Memory Bank)

V>M
(Load Memory)

M>V
(Send Memory to VFO)

RPT
(Select Rptr. Shift)

REV
(Reverse Rptr. Shift)

 TON
(CTCSS)

DCS
(DCS)

ART
(ARTS)

--

SKP
(Skip Memory)

SCN
(Scanning)

DW
(Priority Ch.)

SCH
(Smart Search)

DNR
(DSP Noise Reduction)

DNF
(DSP Notch Filter)

DBP
(DSP Band Pass Filter)

--

WRI
(Store CW Message)

PLY
(Play CW Message)

BK
(QSK/Semi Break-in)

KYR
(Keyer)

MTR
(ALC/SWR Meter)

TUN
(Ext. Tuner Start)

PRO
(Speech Processor)

VOX
(VOX)

6.0
(6.0 kHz RX Filter)

2.4
(2.4 kHz RX Filter)

500
(500 Hz RX Filter)

300
(300 Hz RX Filter)

IPO
(RX Preamp Off)

ATT
(RX Attenuator)

AGC
(Fast/Slow/Auto)

NB
(IF Noise Blanker)

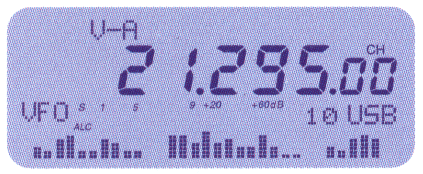

DISPLAY AND SPECTRUM SCOPE
