EB104
HF-Amplifier
600 W
back
to the project page
Take
a look of upside photo of EB104
Take
a look of bottomside photo of EB104

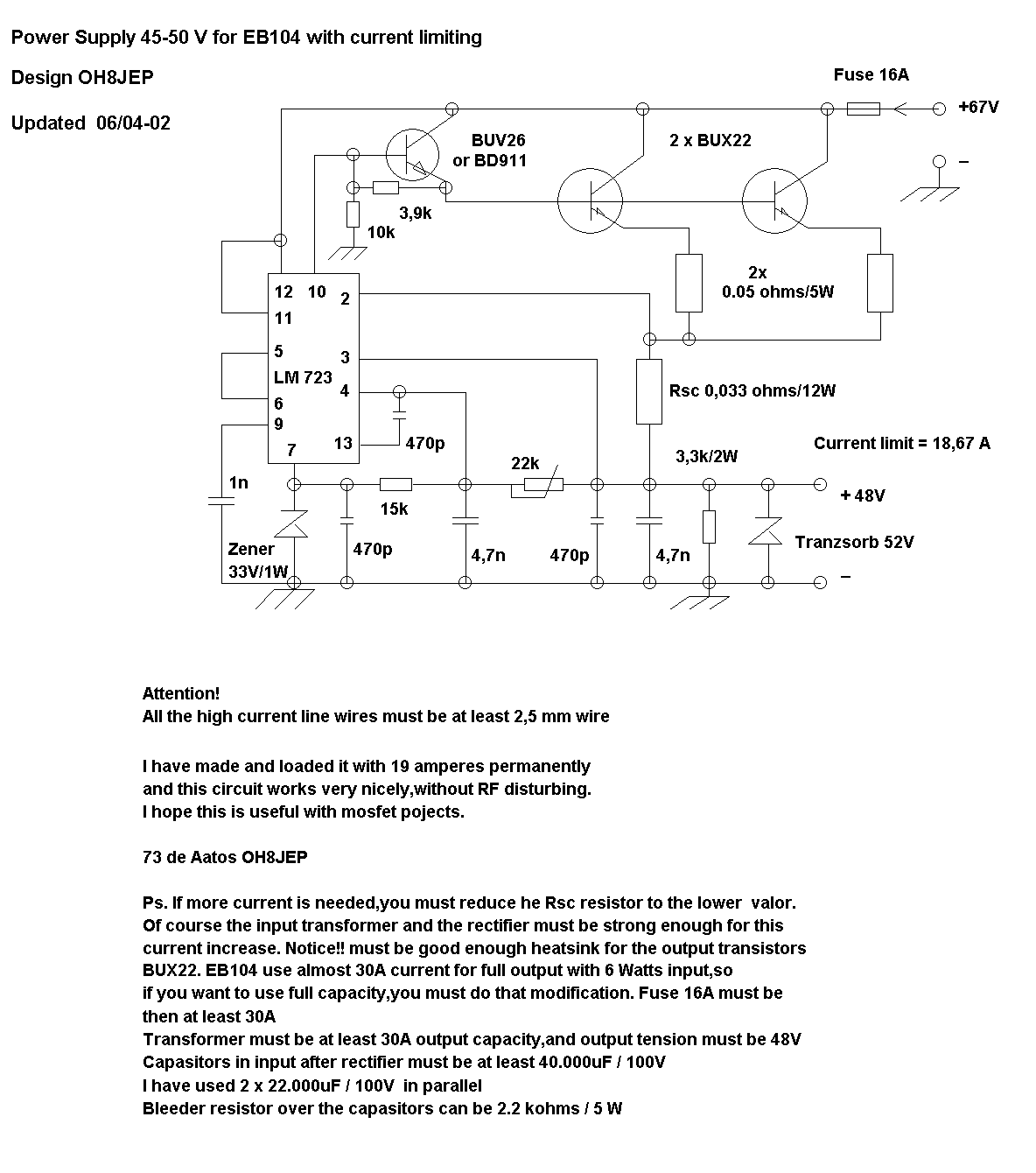

Take
a look of power supply schematic for EB104
Take
a look of power supply printed circuit for EB104

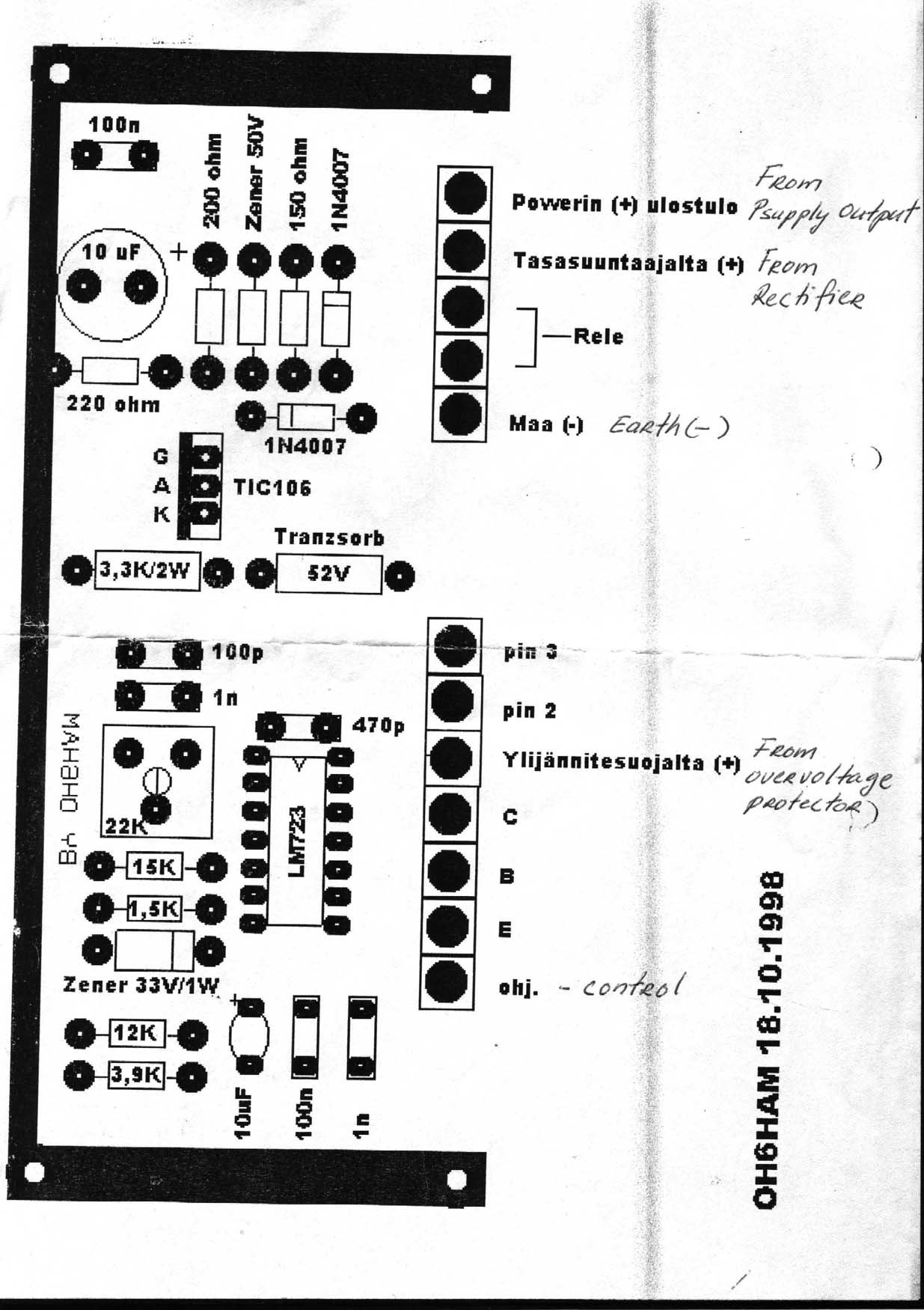

Take
a look of power supply pcb`s component placement for EB104

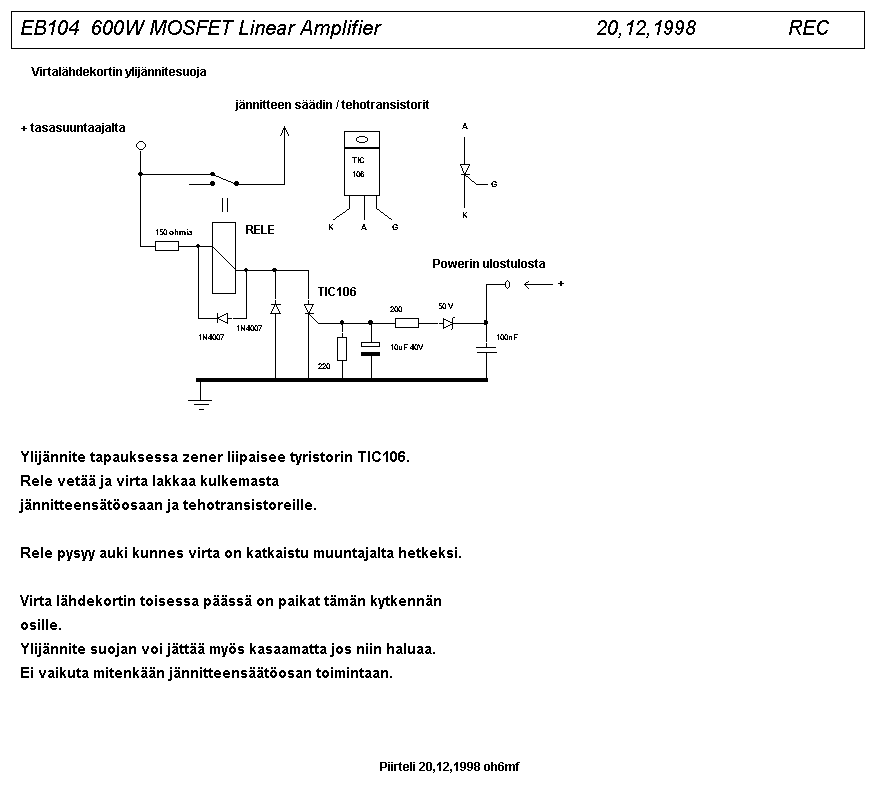

Take
a look of over voltage protection schema for EB104 (finnish)

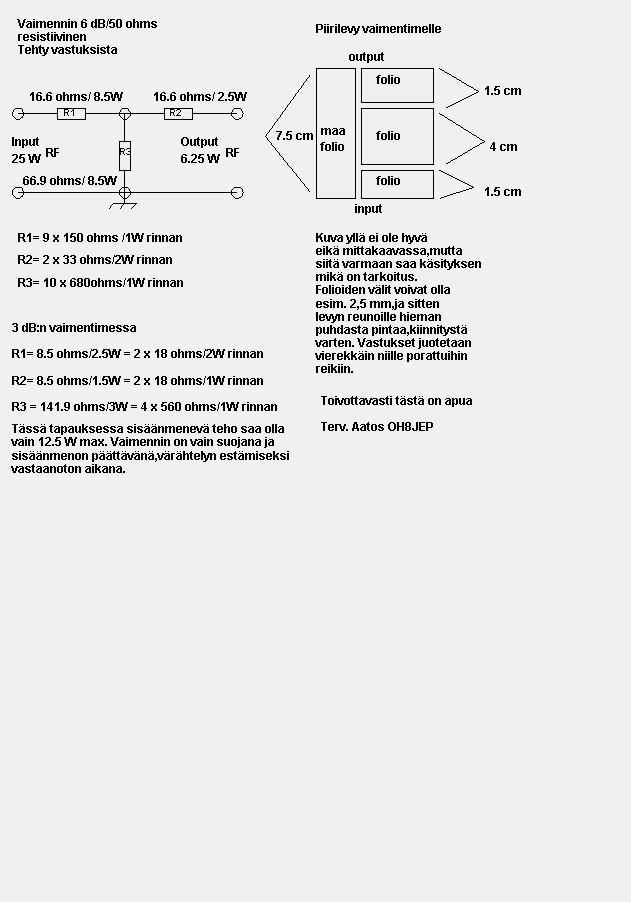

Take
a look of input attenuation plan for EB104 (finnish)
Calculate
the necessary resistors of the PI- or T- network attenuator for EB104 (finnish)
Take
a look of input attenuation printed circuit of EB104

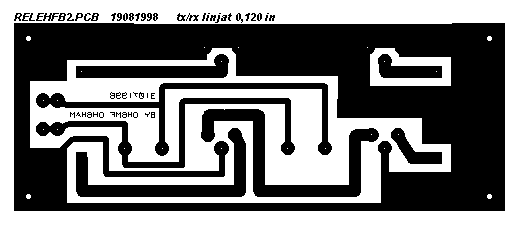

Take
a look of the TX/RX changing unit printed circuit (finnish made)
Take
a look of the EB104 kits parts(part of them are finnish made)
Download
technical info for MRF150 mosfet (in PDF format)
Read
the Motorola engineering bulletin of EB104 amplifier
Take
a look of Motorola site for mosfet applications
Take
a look of Rfglobalnet.com for EB104 descriptions
Download
EB104 printed circuits (double-side print) (500kB)
Download
EB104 comp.placering (800kB)

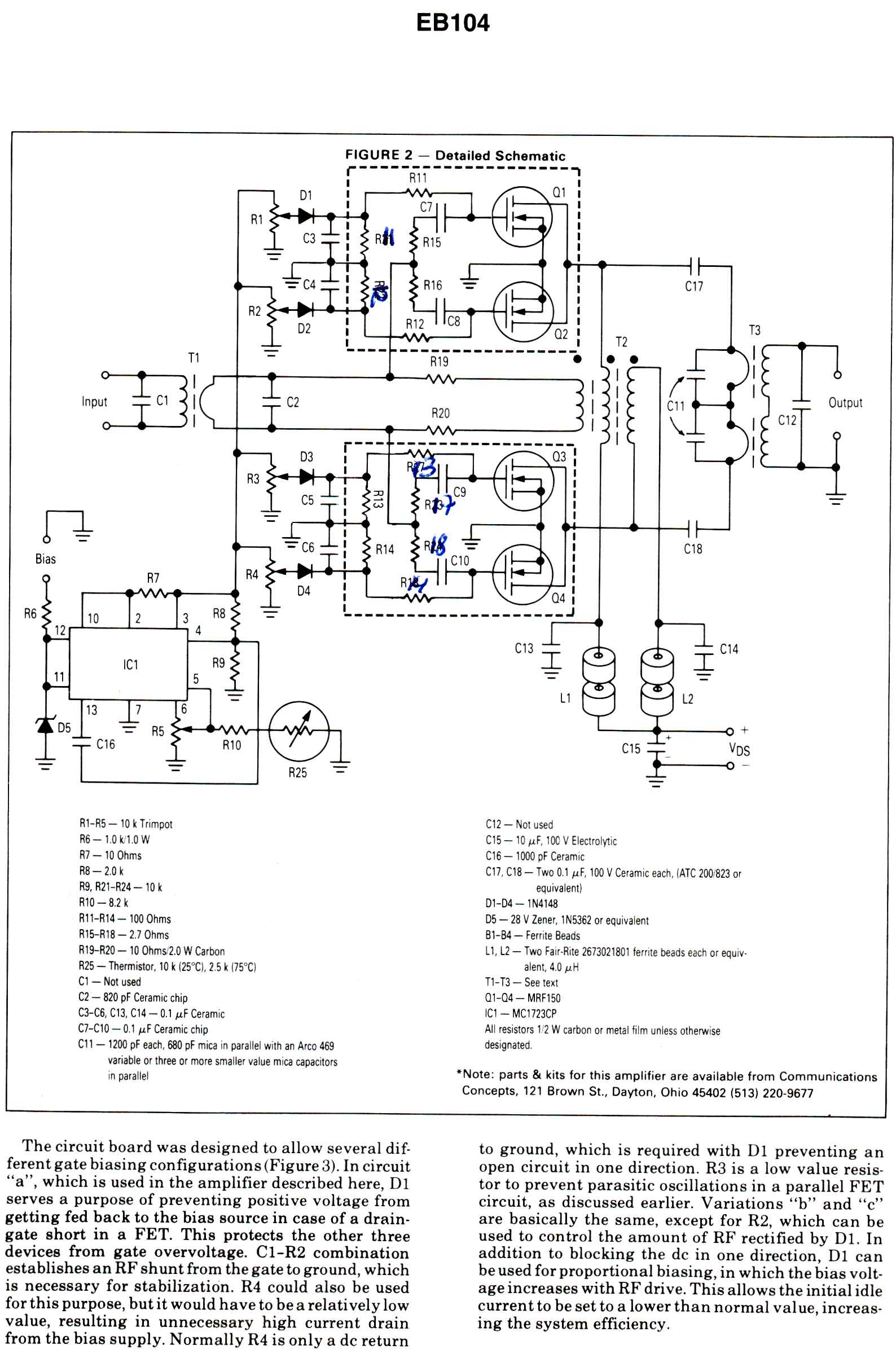

Download
EB104 schematic (260kB)
I hope
this information is helpful for everyone who is interested of this cheap
and excelent HF Amplifier,thanks for CCI and Motorola.
|
