| Prosessor | Pentium / 166MHz |
| Memory | 132Mb (16Mb Swap)
128224k/131072k available (868k kernel code, 412k reserved, 1528k data, 40k init) |
| MotherBoard | Primary IDE IRQ=14, Secondary IDE IRQ=15
FDC National Semiconductor PC87306 COM1 LPT1 PS/2 Mouse+Keyboard IO Chipset Intel (SB82371SB) Triton II VGA (Cirrus Logic CL-605436) |
| Primary IDE | Quantum LPS270A (Cyl:944,Head:6,Sector:40) = 258Mb (hda) |
| Secondary IDE | HITACHI CDR-7930, 8X CD-ROM 128kB Cache IDE-CD |
| SCSI Card (ISA) | Adaptec 1542 + Floppy(Disabled) IRQ=11 IO=0x330 |
| SCSI Devices | SCSI ID 0 = Quantum LPS500S ?
SCSI ID 1 = Quantum 200Mt SCSI ?? ( ID 0 - RODIME Model: RO3259TS Rev: .6.73 ) ? ex files HD ( ID 1 - TOSHIBA Model: CD-ROM XM-5401TA Rev: 3115 ) ? ( ID 2 - TOSHIBA Model: CD-ROM XM-5401TA Rev: 3115 ) ? |
| Network Card (ISA) | SMC Ultra IRQ=5 IO=0x300 (BNC) Ethernet - LocalNet
SMC Ultra IRQ=7 IO=0x320 (RJ-45) to ADSL? |
| Display | VGA Monitor |
| Routes | Serial->OH4RBB-2:PMKCLS (ttyS00) 9600
Eth0->OH4RBB-6:#PMKL (ethernet/TCPIP) |
| Software | Linux Kernel 2.2.9 - Based on RedHat 5.1 (Updated a lot!)
ax25utils 2.1.42a - modified (ax25ipd,node,netromd,kiss) FBB700g25 linux (FBB) - modified DX Spider 1.49 (DXCluster) Perl 5.6.0 |
| Hardware Address | /dev/ttyS00 IRQ=4 IO=0x03f8 UART=16550A (COM1) |
| Linux AX25 Ports | netrom (OH4RBB-3:PMKNR)
ipd (ax0) - AX25IPD TCP/IP Internal net. cls (ax1) - RS-232 line to PMKCLS (Protocol Netrom) |
| Description | Run FBB (BBS) and Spider (DXCluster) softwares. Serves the users and
another DXCluster nodes.
And the InterNet gateway. Callsigns : OH4RBB:PMKBBS, OH4RBB-1:PMKCLU, OH4RBB-3:PMKNR |
| IRQ | 1 - keyboard
2 - cascade 3 - FREE (OLD serial) 4 - serial 5 - SMC Ultra (ETH0) 6 - floppy 7 - SMC Ultra (ETH1) (OLD AX.25 SCC) 8 - rtc 9 - FREE 10 - FREE 11 - aha1542 12 - Free (PS/2 Mouse) 13 - fpu 14 - ide0 |
| Prosessor | 486DX2/66 (256kb Cache) |
| Memory | 16Mb |
| IO Ports (ISA) | COM1 /dev/ttyS00 IRQ=3 IO=0x03F8 UART=16450 (Used)
COM2 /dev/ttyS01 IRQ=4 IO=0x02F8 UART=16450 (Used) IDE (IRQ 14) Primary FDC LPT |
| Display (ISA 8bit XT) | EGA Controller + Monitor |
| HardDisk | Seagate ST-157A (Cyl:560,Head:6,Sector:26) = 43Mb (hda) |
| DRSI Card (ISA) | 2 x 1200 ports (io=0x300, irq=7)
scc0 (2m port) (data_a=0x303) (ctrl_a=0x302) scc1 (70cm port) (data_b=0x301) (ctrl_b=0x300) |
| Netword Card (ISA) | SMC Ultra ISA io=0x340 irq=10 |
| Software | ax25utils 2.1.42a - modified
z8530drv - 2.4c aprsd ?? |
| AX25 Ports (Radio) | 2m (scc0) - 144.675 (1200) OH4RBB-5 PMK5
70cm (scc1) - 433.650 (1200) OH4RBB-4 PMK4 ipd (ax0) - Internal Network (AX25IPD) 9k6 (ax1) - 432.725 (9600) OH4RBB-9 PMK96 TNC u9k6 (ax2) - 434.575 (9600) OH4RBB-7 PMK7 TNC |
| Description | This machine is the Heart of everything.
Handles all trafic with radios! Routes them to another computers |
| IRQ | 3: Serial
4: Serial 7: SCC-Card 10: SMC-Ultra 14: IDE0 |
| Prosessor | 386SX/33 |
| Memory | 4Mb (8Mb needed!) |
| HardDisk | C 52Mt (Primary IDE) |
| IO Ports | COM1 /dev/ttyS00 IRQ 3 IO=03F8 UART=16450 (Used)
COM2 /dev/ttyS01 IRQ 4 IO=02F8 UART=16450 (Free) LPT FDC (Broken) |
| Display | VGA |
| Routes | COM1 (BPQ)->Linux (9600bps) |
| Software | DOS 6.22 + BPQ408a
Clusse 1.10 (modified Clusse by OH4KLU) |
| Machine Description | This is the GoodOLD DOS Clusse. |
| Modeemi | G3RUH+TNC (9600) (TheNet Plus 2.10st) |
| Radio | Benefon Forte |
| Taajuus | 432.725MHz |
| Antenni | Aerial Commercial 70cm
suunnattuna Pappilanmäkeen |
| Modeemi | TNC2H by D96SJ |
| Radio | MD-59 |
| Taajuus | 434.575MHz |
| Antenni | 2xDipole |

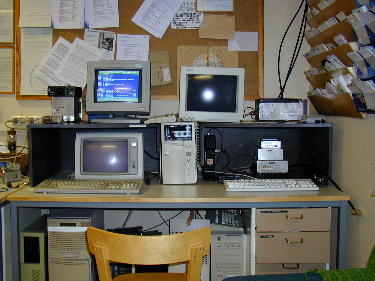

Kerhon pakettiradioasema siivouksen ja uudelleenjärjestelyn jälkeen 10. Marraskuuta 2002.
