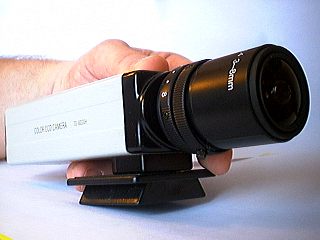

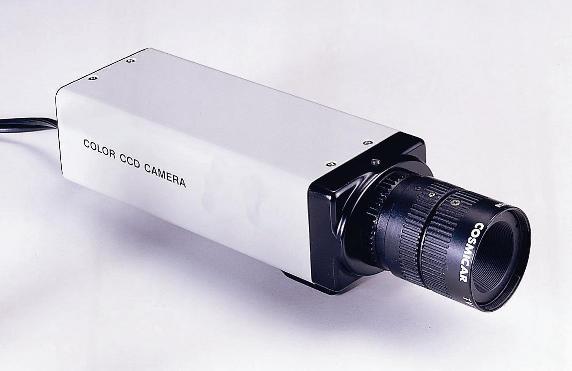

TS-6020-12 SONY Hyper HAD CCD
| TS-6020-12 specification |
| Model | TS-6020(DC+12V) /
TS-6020L (ACV Line Lock |
||||||
| Scanning system | NTSC | PAL | |||||
| Image sensor (device) | SONY Interline transfer Hyper HAD CCD | ||||||
| Image size | 1/3" (approx. 4.8mm x 3.6mm) | ||||||
| Picture element | Effective | 510(H)x492V | 500(H)x582V | ||||
| Optical black Horizontal | 3:in front.40 in black | ||||||
| elements Vertical | 12:in front.2:in black | ||||||
| Chip size | 6.0mm(H)x4.96mm(V) | ||||||
| Synchronizing system | AC Voltage:
LINE LOCK SyncDC +12V: Internal Sync |
||||||
| Interlace | 2:1 Interlace | ||||||
| Horizontal Resolution | 420 TV Line | ||||||
| Aperture correction | H aperture V aperture | ||||||
| Video output level | 1.0V(p.p) (75ohms.composite) | ||||||
| Video S/N ratio | More than 50dB(AGC off) | ||||||
| Minimum illumination | 0.5Lx(F 1.2) AGC ON | ||||||
| White balance | ATW large range:2400 K to 11000K | ||||||
| Electronic iris | ON/OFF, manual switching | ||||||
| Back Light Compensaton | Active Histogram plus windows weight BLC | ||||||
| Gamma | 1 | ||||||
| Camera mount | ¼"-20 UNC (top/bottom selectable) | ||||||
| Light control | Electronic iris (indoor use) or optional auto iris lens | ||||||
| Auto Exposure (AE) system | Auto
electronic iris.1/50(1/60). 1/100,000 sec. |
||||||
|
|
||||||
| Video irin output | Video+12V DC(Max.50mA)Video | ||||||
| signal(hi.Z)GND | |||
| Audio Output(Optional) | 150mV Vp.p/10Kohm RCA Connector | ||
| Auto iris Sockets Video iris | Pin1: + V Pin2:VIDEO Pin3.Gnd Pin 4 Gnd | ||
| DC iris | Pin1:Black Pin2:Red Pine3:Green Pin4:Yellow | ||
|
Temperature:10°C
to+50°C,Hunidity: within 90%RH |
||
| Storage temprature | Temperature:20°C
to+70°C,Hunidity: within 70%RH |
||
| Lens mount Optional: |
CS/C mount(C
mount using adaptor supplies) objektiivi 1/3'', varifocal 3.5 - 8 mm, F1.4, manual iris |
||
| Power requirement | TS-6020L:AC110V/230V/60Hz.AC230V/50Hz TS-6020DC+12V |
||
| Power consumption (approx.) | 2.3W | ||
| Dimensions (approx.) | 128(L)x50(W)x43(H)mm | ||
| Weight (approx.) | 300g |
