Conversion of a PCS High Power Module to 13cm Amateur Radio Band

(C) DL4MEA 09/1999

25.09.1999    creation

D: Auf der UKW-Tagung in Weinheim bot ein Surplus-Händler Baugruppen an, die man als 13cm-PA verwenden kann. Die originale Gesamtbaugruppe ist ca. 25x25cm groß und besteht aus einem Digitalteil und dem Leistungsverstärker. Lediglich letzterer ist für uns brauchbar.

Aber Achtung!

Es gibt drei Versionen des HPA, die man am einfachsten am verwendeten Power-Modul erkennen kann. Dafür muß man allerdings den Deckel des Leistungsverstärkers öffnen:

GSM: Valvo/Phillips BGY915
DCS: Motorola MHW1815
PCS: Motorola MHW1915

Erfahrungen meinerseits liegen bisher lediglich vor, daß man den PCS-HPA auf 13cm verwenden kann. Ein Versuch einen GSM-HPA nach 1296MHz zu konvertertieren ist fehlgeschlagen.

Für die Konvertierung des PCS-Verstärkers auf 13cm wird lediglich der Leistungstransistor benutzt, das Mitsubishi-Leistungsmodul arbeitet bei diesen Frequenzen leider absolut überhaupt nicht mehr. Für den Umbau benötigt man ein Stück Kupferfolie 20mm * 10mm und ein kleines Stück selbstklebende Teflon- oder Captonfolie sowie zwei kleine Stücke Kabel für Ein- und Ausgang.

Die Leistungsdaten nach der Modifikation:


Frequenz: 2320MHz
Stromaufnahme: 5V/500mA
26V/6A
Ausgangsleistung: 1W in -> 9W out
5W in -> 40W out

Aufgrund fehlender Steuerleistung konnte ich die maximale Ausgangsleistung nicht überprüfen.

E: On the UKW-Tagung in Mannheim power modules of a PCS base station were offered. We can use them as a power amplifier for 2320MHz. The complete assignment consists of a digital part and the power amplifier module. Just last one is usable for us.

But take care!

There are three versions of the HPA, which can easily differed when you check for the power module beeing used. You have to open the tin plated box which covers the amplfier:

GSM: Valvo/Phillips BGY915
DCS: Motorola MHW1815
PCS: Motorola MHW1915

I already convered successfully a PCS-HPA to 13cm. I tried to convert a GSM-HPA to 23cm but it failed.

After the conversion the Mitsubishi-Module will not be used, simply the output transisor. There are simply a small piece of copper foil 20mm x 10mm and a small piece of self-adhesive teflon or capton foil needed.

Technical data after modifikation:


Frequency 2320MHz
Power Consumtion: 5V/500mA
26V/6A
Output Power: 1W in -> 9W out
5W in -> 40W out

Due to lack of drive power I was unable to check for the maximum output power.

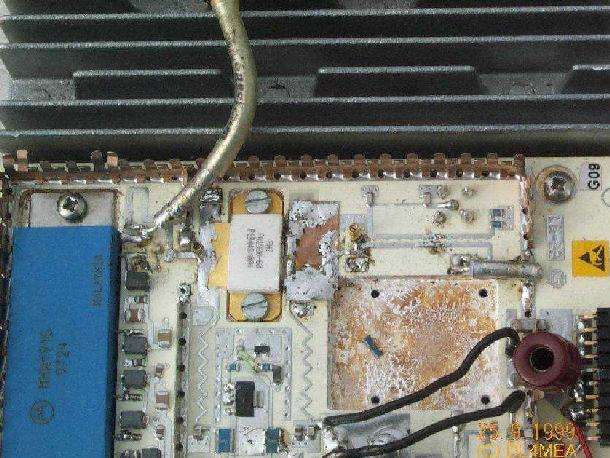

Conversion Notes:

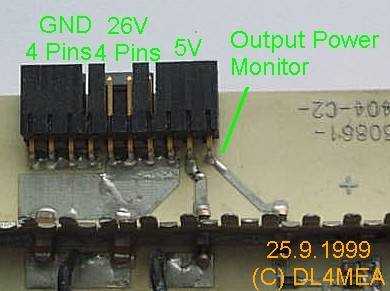

Power Supply Connector:


With regulating the 5V supply you can set the idle current in the easiest way.

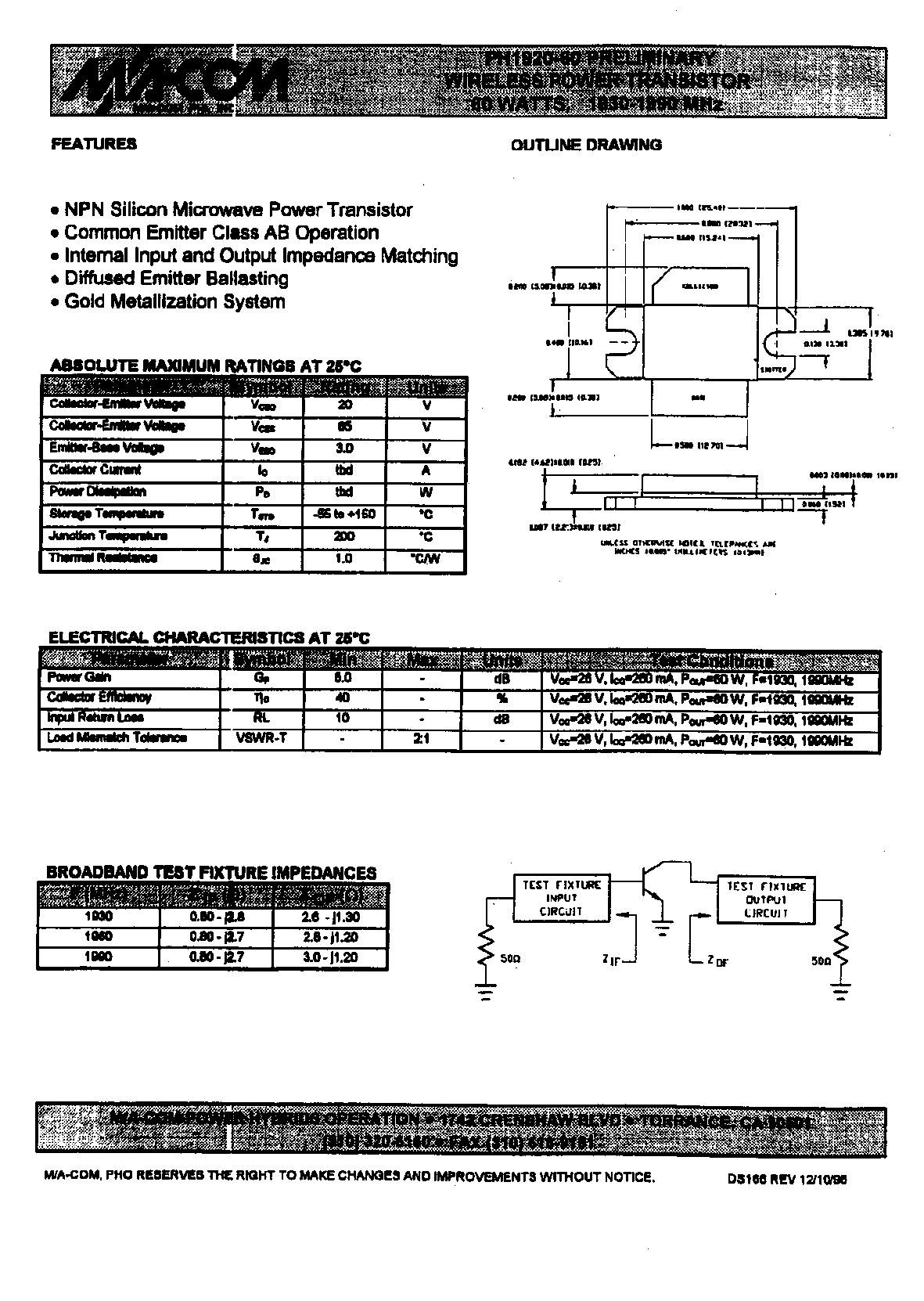

MA/COM PHI1920-60 Datasheet (60k)

Two more pictures: (click on them to get them on high resolution)


Total view (376k)

Power Amplifier view (354k)



DL4MEA
