Welcome to the N3HYM BULLETIN BOARD

APRS - BBS - CHAT - NODE - RMS - SERVER

Servicing Frederick County and Supporting ARES / RACES . This BBS
stores and forwards Bulletins of a Personal nature. Handling NTS into
and out of the surrounding area. Setting high a top Braddock Mountain.


BBS N3HYM

Serving Frederick County, Maryland and surrounding area  located High Atop Braddock Heights Mountain. I am active in the Radio Relay International ( RRI) and Digital Traffic Network (DTN) system along with ARES in the local area.



Handling Emergency and Routine Message Traffic Throughout the East Coast .

Port 1: AX/IP/UDP Internet Linking

Port 2 VHF 145.030 MHZ    User Port

Port 3 VHF 144.390 MHZ    APRS IGATE, N3HYM-9

Port 4 HF ARDOP 7.101/10.145/18.107/21.095/28.130    (Dial)

Port 5 HF WINMOR 7.101/10.145/18.107/21.095/28.130 (Dial)

Port 6 HF VARA 7.101/10.145/18.107/21.095/28.130  (Dial)

Port 7 Pactor 1,2,3, 7.101/10.145/18.107/21.095/28.130 (Dial)

Port 8 HF 300 Baud Packet 7.104.0 Nights Only

Pot 9 Telnet  User - BBS Fwding Port @ n3hym.ddns.net:8010       use putty or other similar telnet program

Port 10 LoopBack Test

Web Server : N3HYM.ddns.net:8013/index.htm  -  Using your Web Browser

My Alias  List :

HYMBBS - Connects directly to the N3HYM BBS
HYMCHT - Connects directly to the N3HYM-1 Chat Server
BHMD   -    Connects you to the  N3HYM-5 Node .
HYMRMS - Connects you to the N3HYM-10 , WL2K WinLink System

Chat server meets every Monday evening at 8pm for Live Rountable Conversion.

Nodes can be accessed VIA any port, 1,2,4,5,6,9 as listed above.

You can connect to the telnet with your CALLSIGN and a password , no access until you email me with password for full use on the telnet side.

Password is required to Access Port 9 for FULL ACCESS , Send email to [email protected] with password.

Map N3hym-5 n3hym.ddns.net udp 10093 B           <<<<<< for those running BPQ32 >>>>>>>>

YOuTube System  Video = https://www.youtube.com/watch?v=XEuq5Abpf6E

Enjoy the system

73s
Ray N3HYM

You can caught me on DMR 91, 3100, or any local analog repeaters !

                  Ailunce HD1 Tools

https://github.com/BM-Database/database-tools/wiki/Ailunce-HD1-AdresTool-v2.00

             Ailunce HD1 Tutorials

https://www.ailunce.com/blog/category/User-Tutorial

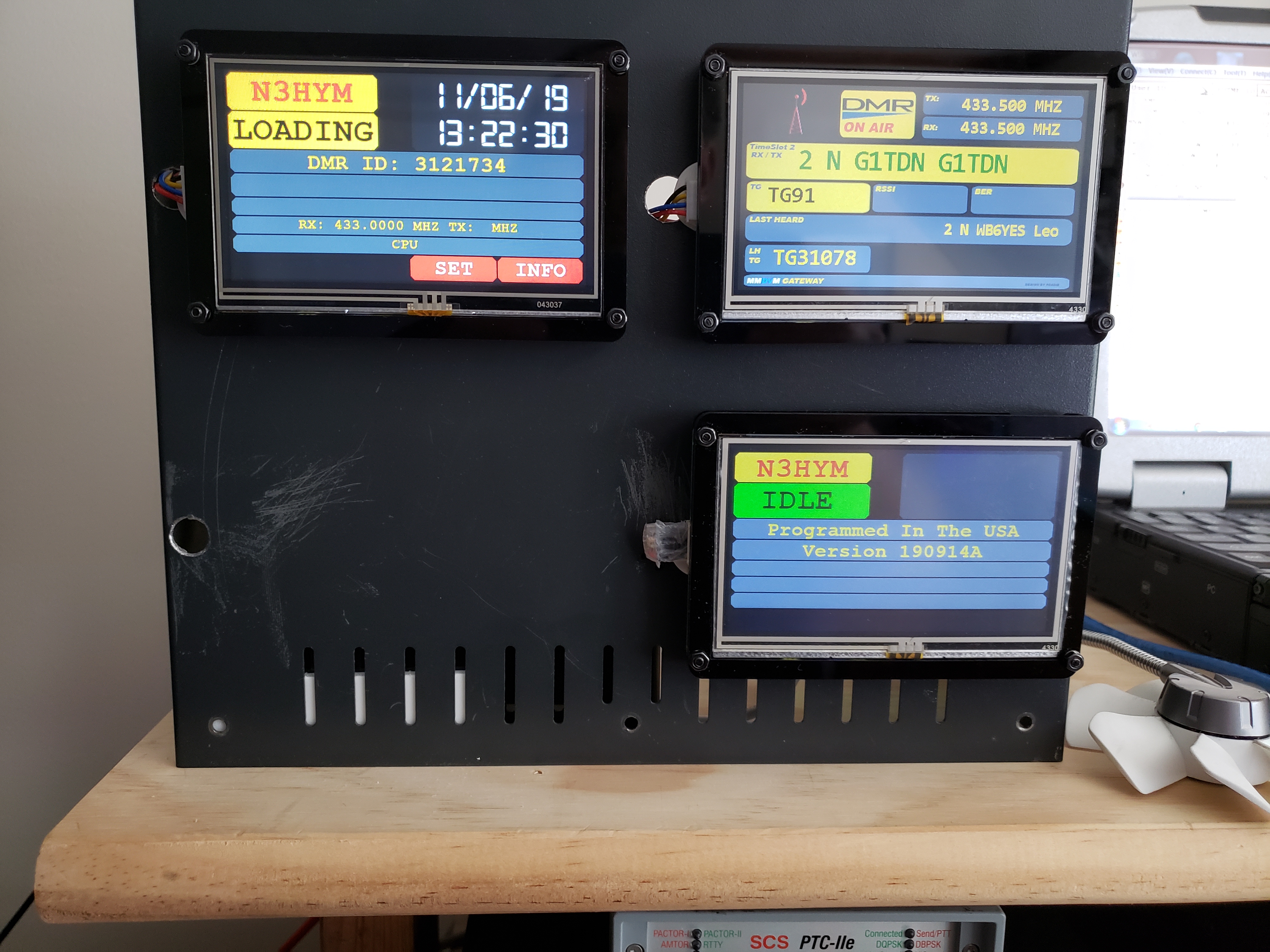

My Room HOTSPOT , Frederick 61535 on the air , running Wires X software, HRI-200 and FTM 400XD @ 446.120

Direct connect on WIRES-X  51535 to N3HYM

Give me a shout some time.

Ray N3HYM



73s
Ray N3HYM

(2) N3HYM BBS (! A,B,C,CB,D,F,G,H,I,J,KM,L,M,N,O,R,S,TH,U,V,W,X,Y,? >

Email is [email protected]

OLD SYSTEM BELOW FROM THE 1990'S

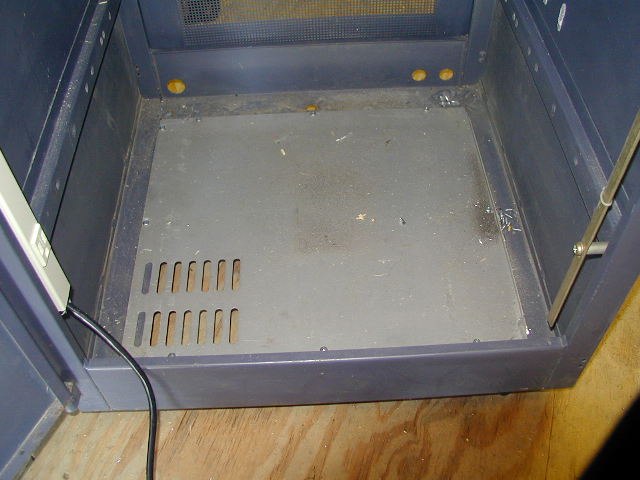

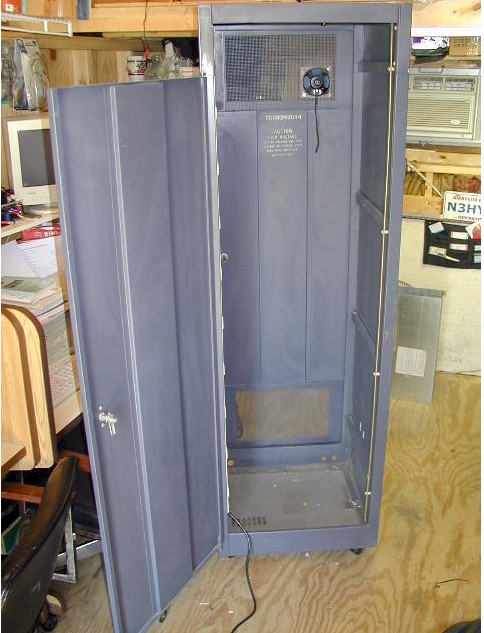

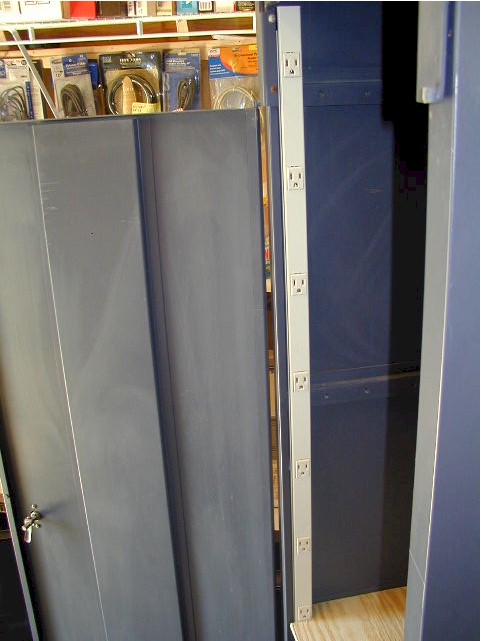

Here I obtained an empty 42 u server cabinet with doors on both front and back of the unit Here i added a bottom with vent holes for in the cabinet for the power supply to set on Here at the back of the cabinet i added a 110 power strip to plug all the equipment into. At this point it was time to cut out the shelves from 5/32 plywood. This is my son helping me with the packet project , he is painting the plywood shelves.

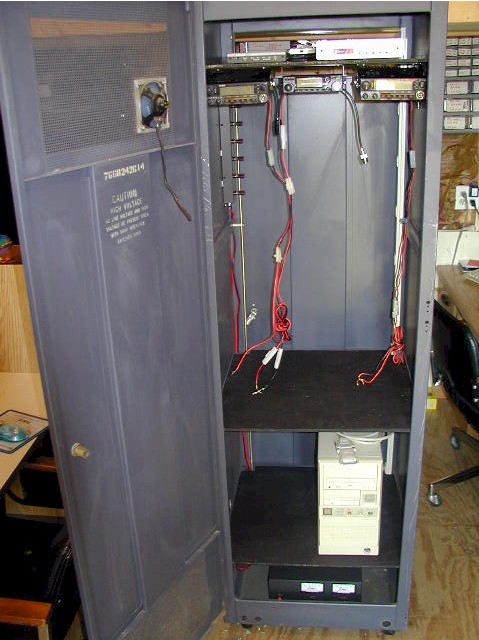

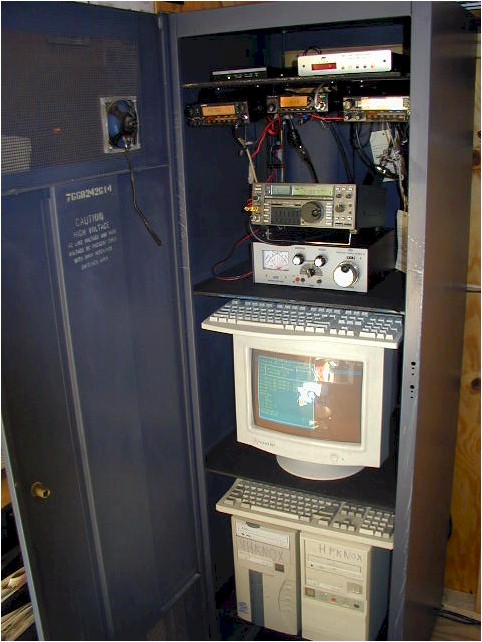

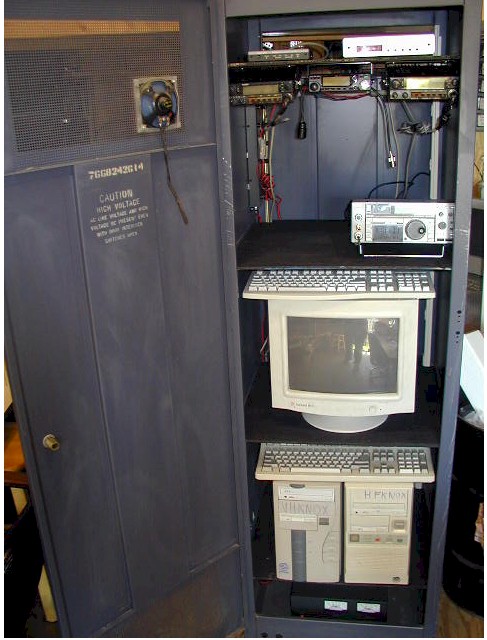

These are the plywood shelves as they are completely painted At the back of the cabinet at the other side i mounted a MFJ 12V power strip, which will run down to the power supply on the bottom shelve Here the VHF, UHF radios are mounted on the top shelf on the under side and the tnc's are mounted on the top side of the same shelf. And the power supply in put into place on the bottom. Here both VHF and HF Packet PBBS computers are in place with there keyboards and monitors. This is the completed station with the HF IC-735 and MFJ 949 tuner in place. This completes the Frederick County MD. PBBS Packet Bulletin System.

Since this development , I have added a second HF port and user port on VHF on Oct 1 2005
