TH327 1296 MHz




RF DECK AND HIGH VOLTAGE POWER SUPPLY ARE SEPARATED

RF DECK

Tube
Freq
Output power
Gain App.
Efficiency App.
Voltage
RF deck Size
RF deck Weight		 TH327
1296 MHz
> 2000 Watts
9 dB
32% linear mode
220-240 Volt
65 X 33 X 30 CM
45 Kg

HIGH VOLTAGE POWER SUPPLY
Voltage
Size
Weight		 3 PHASE 380-405 VAC
48 X 42 X 22 CM
60 Kg

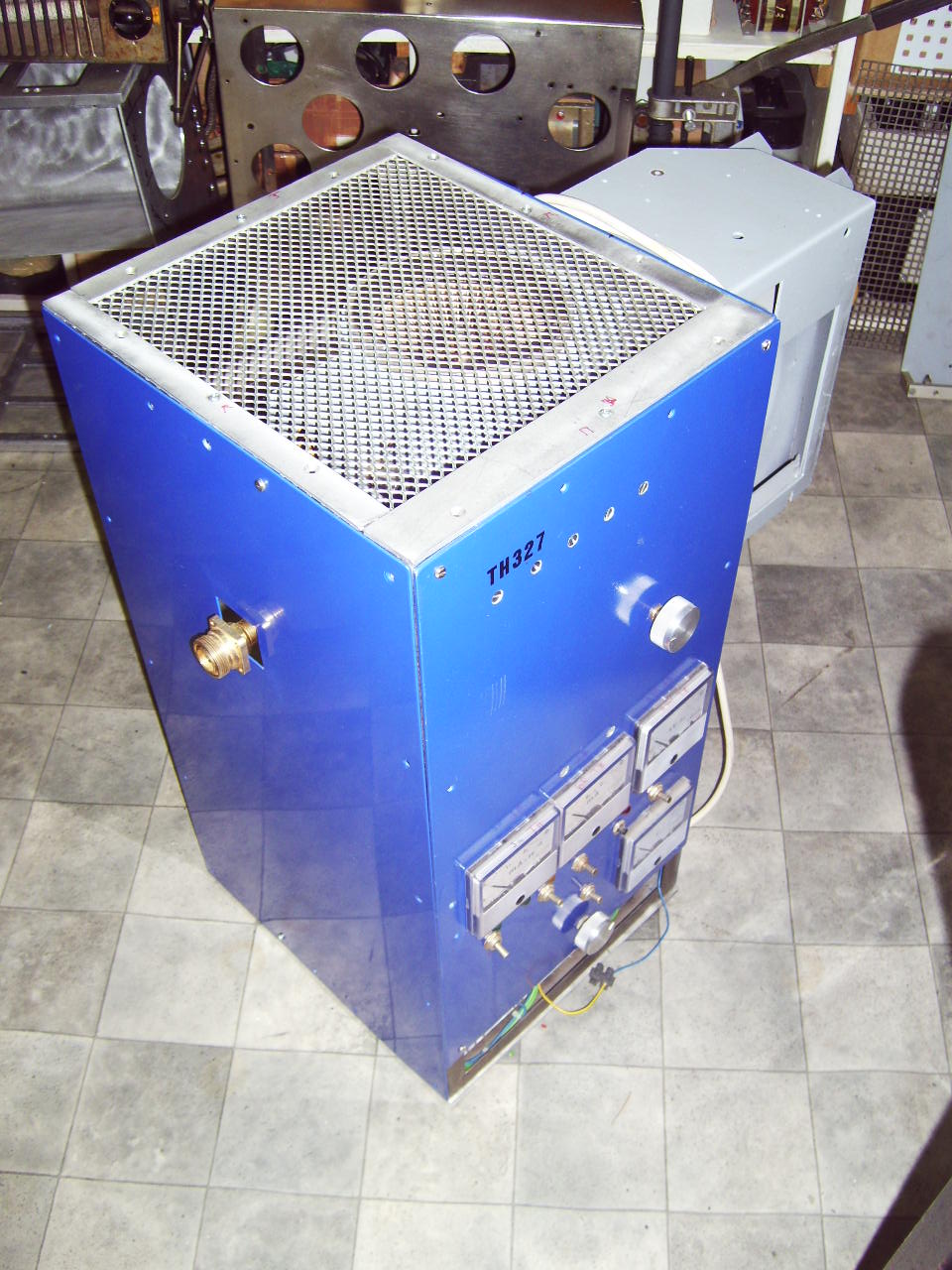

RF DECK

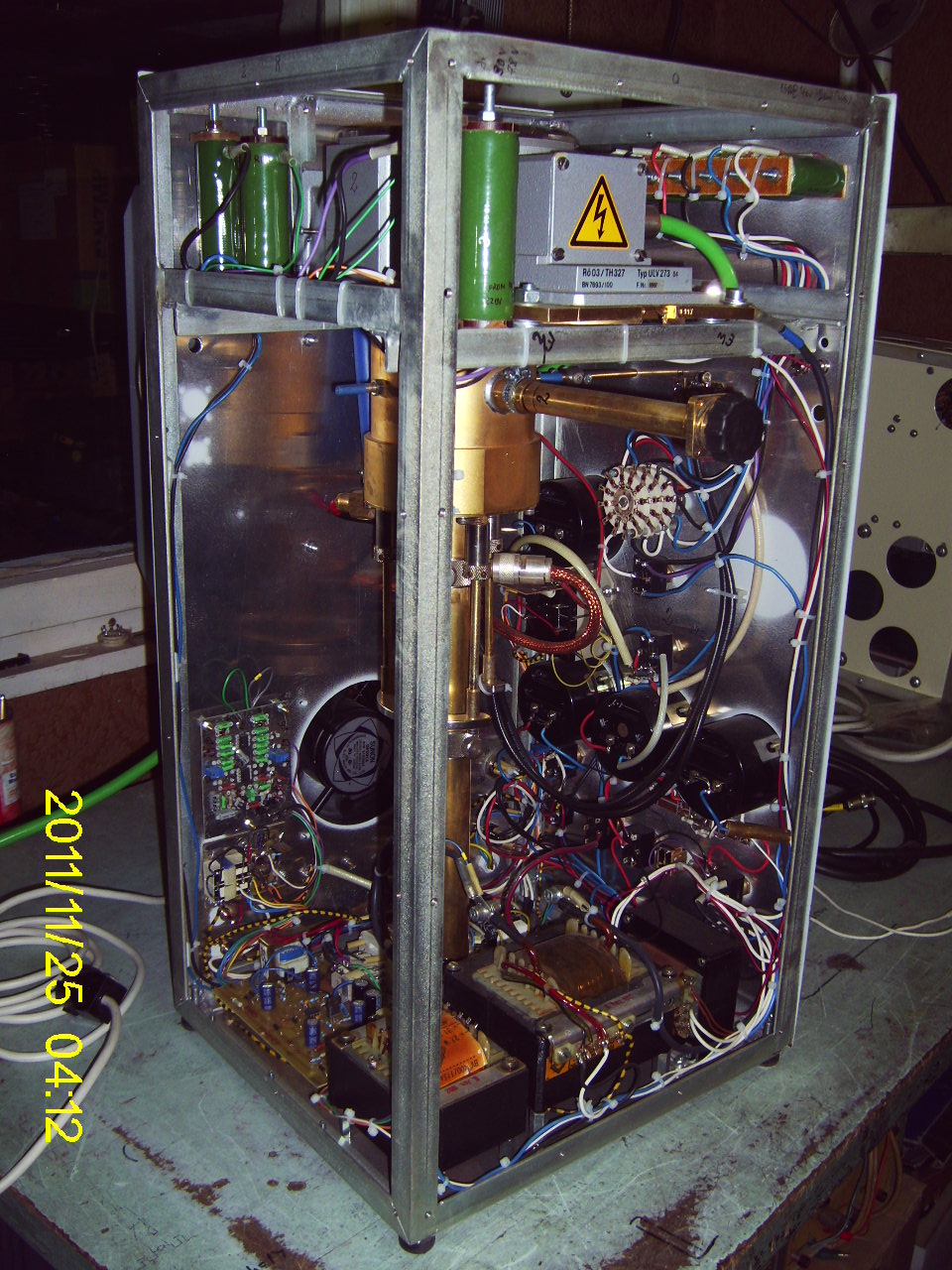

RF DECK

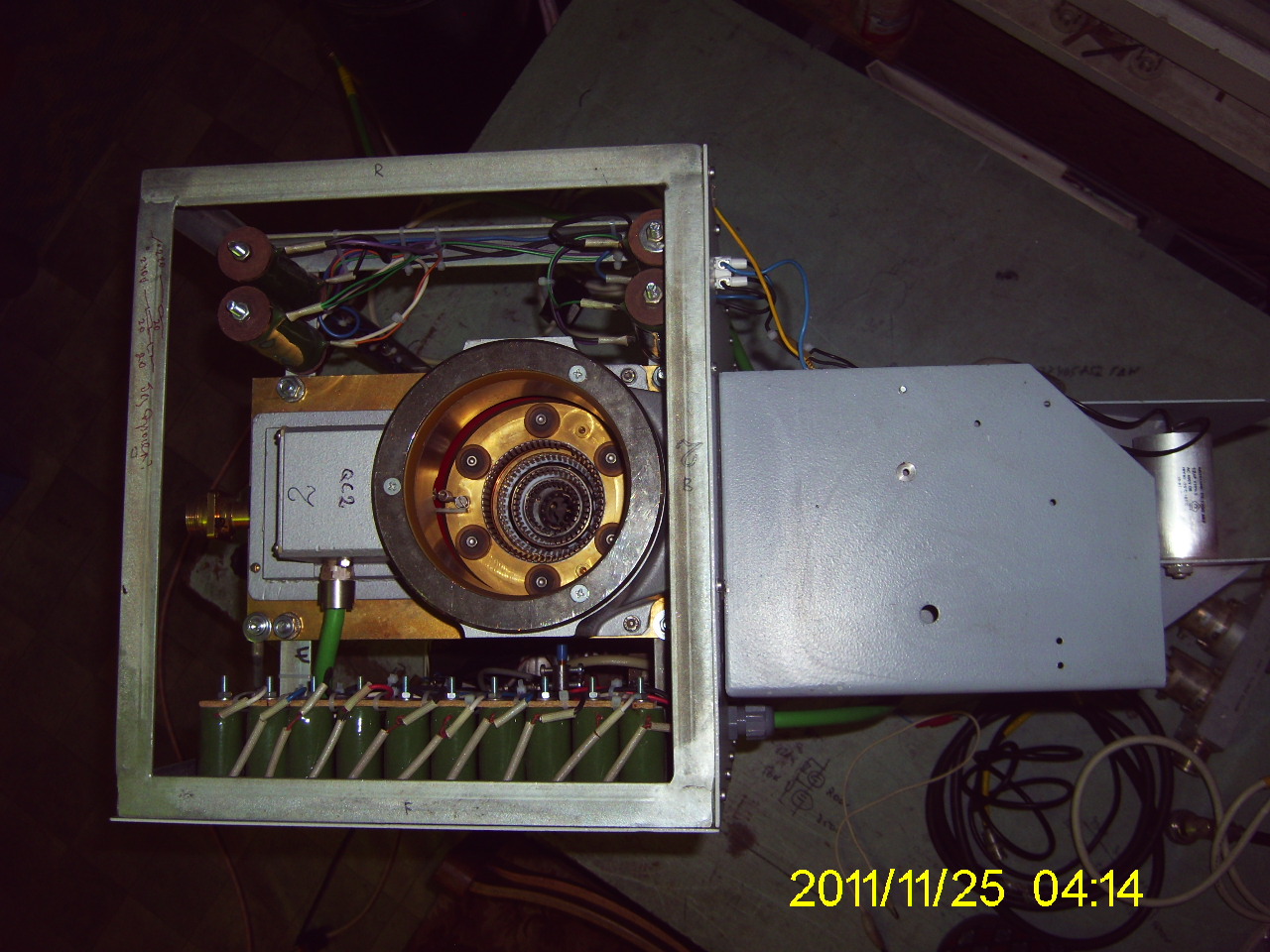

RF DECK



RF DECK

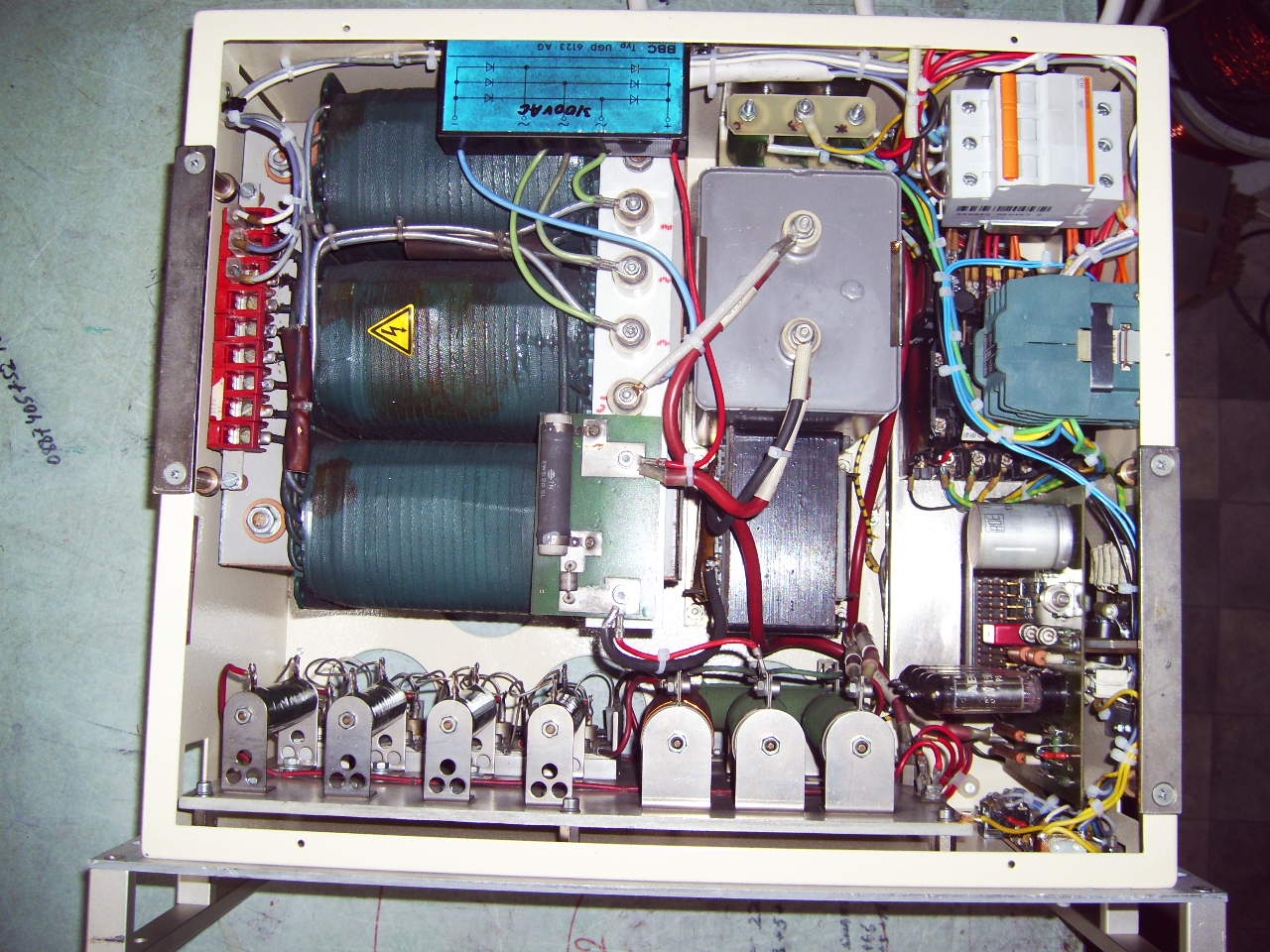

HIGH VOLTAGE POWER SUPPLY



HIGH VOLTAGE POWER SUPPLY
