RF DECK AND HIGH VOLTAGE POWER SUPPLY ARE SEPARATED

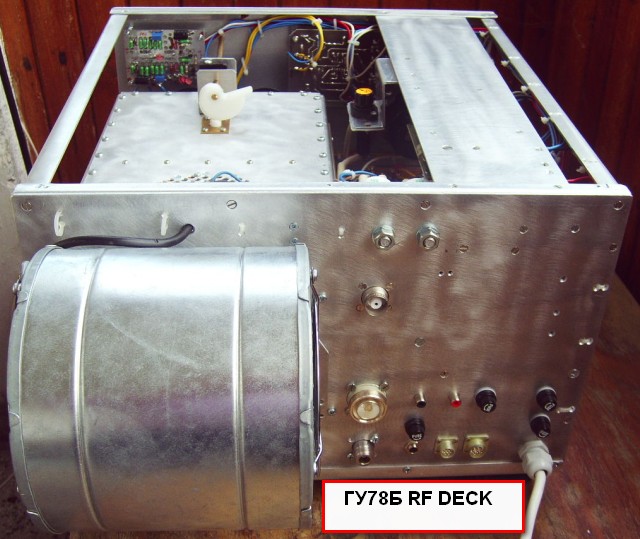

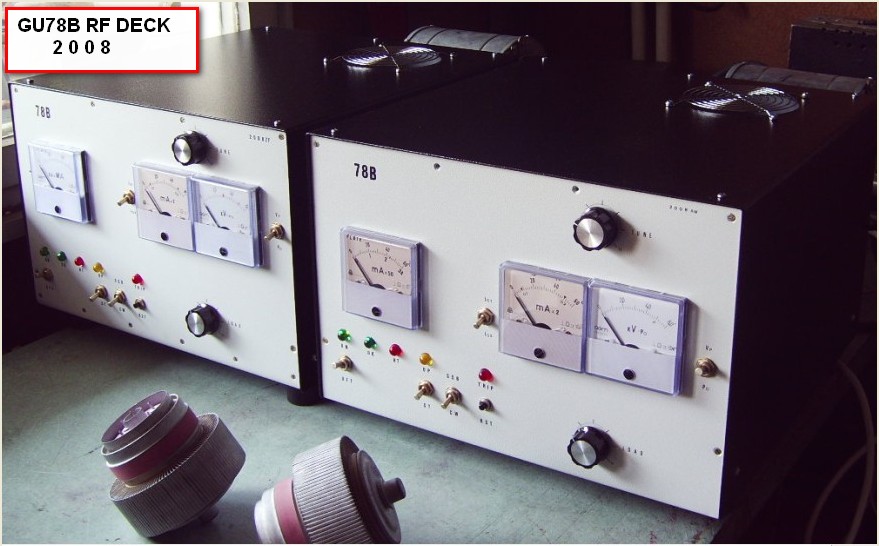

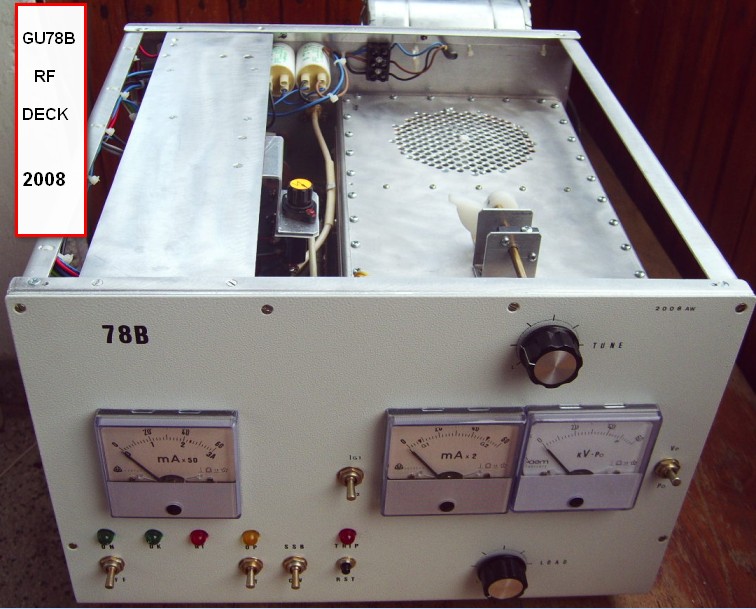

RF DECK

Tube
Freq
Output power
Gain App.
Efficiency App.
Voltage
RF deck Size
RF deck Weight		 GU78b/4cx2500
144 MHz
> 4000 Watts
19 dB
70% linear mode
220-240 Volt
W405xD420xH275 mm
21 Kg

HIGH VOLTAGE POWER SUPPLY
Voltage


 Size ver. 1
 Size ver. 2
Weight

220-240VAC single phase or 2 phase or 3 phase380-405 VAC
 48 x 42 x 22 CM
 42 x 42 x 22 CM
 40 - 60 Kg

  • Heater and High Voltage both "soft" start

  • High Voltage delay timer:  HV cannot turn on before the tube is ready
    Cannot apply drive without HV: PA kept in STDBY (No operation is possible without HV)
    HV plate line is fuse protected

  • The HV transformer protected by magnet circuit breaker (overcurrent breaker)

  • Control and screen grids are overcurrent protected (trip circuit)

  • Blower delay timer:  Blowers run after PA is off for better cooldown

  • Built-in coax relay sequencer:  Separate exciter & tower relay/preamp box outputs

  • Coax transfer relays (depends on the order - contact to discuss)

  • Available also as RF Deck only; complete except for HV supply:  Requires 3KV @ 2.2A
