Here you can view
The

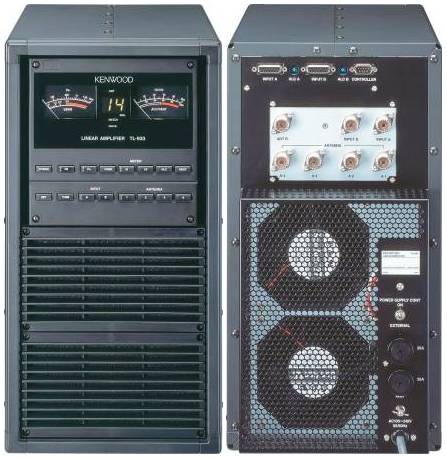

New 1KW HF+6 meter Amplifier from Kenwood
TL-933
Price: 568,000 Yen retail price + taxes
You adopt the removal unrestricted operation panel. Adjusting to the TL933, installation of vertical ranging * horizontal ranging is possible. In addition, if the separate cable of attachment (the 2m) you use, as for the substance as for the foot and the panel also installation of the separate constitution, on the desk is possible.
You can choose which way you want it,
You can even put the Amplifier somewhere in the shack and have the OP-Panel beside the radio!
In power amplifier unit, the RF power MOS FET of high resisting pressure (the 2SK410) 4 the broadband amplifier which is used 4 circuit mounting. In addition, in the output circuit of the power amplifier the Single Ended Push-Pull which breaks down the fault of the load push pull circuit due to former trance coupling scheme (the SEPP) you adopt the circuit. The IMD quality which with output and the former system which is room was not obtained from these, is superior was actualized.
Element constant of the matching circuit
it loads the antenna tuner of the instantaneous change type which variable is
done in binary due to CPU control.
You adopt the low-pass filter type circuit, full cover to the 6m band from the
HF band. In addition, the adjustable data of each antenna is automatically remembered
in memory of large capacity, adjustment of each antenna is reproduced instantaneously.
(Being independence, also use is possible)
5 antennas and 2 tranceivers connected possibility. Being linked with the band which is selected, you adopt the automatic antenna switch which automatically selects the antenna. In addition, being independence, also use being possible, connected mode is a method of 3 sorts.
Technicial Data
For 2 x Transceiver's

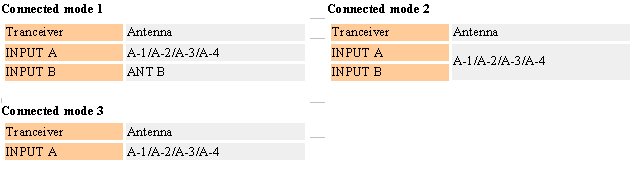

Connected mode 1 Connected mode 2
Tranceiver Antenna
INPUT A A-1/A-2/A-3/A-4
INPUT B ANT B
Tranceiver Antenna
INPUT A A-1/A-2/A-3/A-4
INPUT B
Connected mode 3
Tranceiver Antenna
INPUT A A-1/A-2/A-3/A-4
*The instantaneous largest power source output 3.2kW (at the time of the AC200V) you adopt the PFC on-board high efficiency switching power supply which is pulled out.
*Full break-in correspondence.
*You adopt the abundant protection circuit which protects the circuit from the overdrive and output load abnormality et cetera.
*It corresponds to the wide-ranging AC input power source voltage of the AC100V - the 240V
*The automatic power ON/OFF function which is linked with the power source ON/OFF operation of the tranceiver
*Frequency tracking of the TL933 make tranceiver, the interface function where installed, program setting and gearing of power source are possible.
*If you using the communiations-cable between PA to TS-2000 DSP or TS-870 DSP, all is very easy, with other radio you have to use IF-232C.
Technical Specification
*Operational frequency: 1.8 - Amateur band and 4630kHz of 54mHz
*Rated output power: 1,000W (at the time of AC200V), 500W (at the time of AC100V) however, as for 50MHz band, with AC200V and AC100V 500W setting (when shipping
*Output matched impedance range: 50 ohmic unbalanced VSWR XXLE 3.0 (16.7 - 150 ohm) however, as for 50MHz band, VSWR XXLE 2.0 (25 - 100 ohm)
*Unnecessary radiant strength: - Below 50dB * 1 (HF band), - below 60dB * 1 (50MHz band)
*Mutual strange supply (IMD): - Below 40dB * 2 (1.8 -
24.9mHz band), - below 38dB * 2 (28mHz band), - below 33dB * 2 (50MHz band)
Input impedance: 50 ohmic unbalanced VSWR < 1.5 (at the time of PA ON)
*Driving electric power: Under 120W (automatic tuning time above 30W)
*Frequency change time: Less than of 0.5 seconds
*Power source voltage: AV100V - AC240V and single-phase 50/60Hz
*Electric power consumption: 3kcVa (at the time of 1kW output)
*Input power source power factor: 95% or more (at the time of rated output)
*Category temperature range: - 10 - +40 DEGC
*External size: 233 (width) ×444 (height) ×450 (depth) mm (at the time of vertical ranging, projection ones not being included)
*Weight: Approximately 28kg
*1 Value from PEP
*2 Time of Value
*1kW output from PEP
Concerning the connection with the TL933
make tranceiver
With the IF232 make tranceiver to use when it receives the TL-933, the type
below becomes the object.
Because setting and operation differ depending
upon the type, in regard to verification please use contents well.
In addition, the COM terminal of the tranceiver (the RS-23C2c terminal) and
the external AT terminal is used to control of linear.
When you use linear with automatic operation,
being to become not be able to connect the personal computer and the like note.
As for the TS-570CS/SG and the TS-870CS for PC command restriction when "
the frequency modification time in section definition memory " and "
frequency of standard memory variable it does temporarily ", unless it
is after the maximum of 1.5 seconds, the linear amplifier cannot inspect the
frequency modification of the tranceiver
As for this type for PC command restriction, it cannot know the transmission frequency of the tranceiver from the linear amplifier. The use to which sending and receiving frequency does not agree (split and the like) because it cannot correspond, it cannot do frequency tracking operation
When operating RTTY, it does the mode of the tranceiver in command from the linear amplifier in the FSK. When " FSK monitor " function TURNS ON, there are times when monitor sound is outputted while tuning
After the Digimode operation ending because mode it becomes all FSK modes regardless of the mode before the operating, please reset to original mode.
Because in these types transmission power variable it is not possible in command, to do, please set the output power which is necessary when tuning by hand
As for the TS-950SD/SDX because it does not have the external AT connector, this function does not operate
The IF-23C2c is used for exchanging the mode change and the command at the time of the TL933
Operation manual operation (as a general linear amplifier), the above-mentioned object type it corresponds entirely. In this case, the IF - the 232c becomes unnecessary even in the type of note 7
It's not for Export to Europe or America yet.....
We don't know why????
Do you want this as in plain Text ? Click here
73
de
LA6FJA
Stein Roar Brobakken
"I have just picked up this News from Kenwood's Japanish User Site at the Developmenting division and have only translated the stuff"
