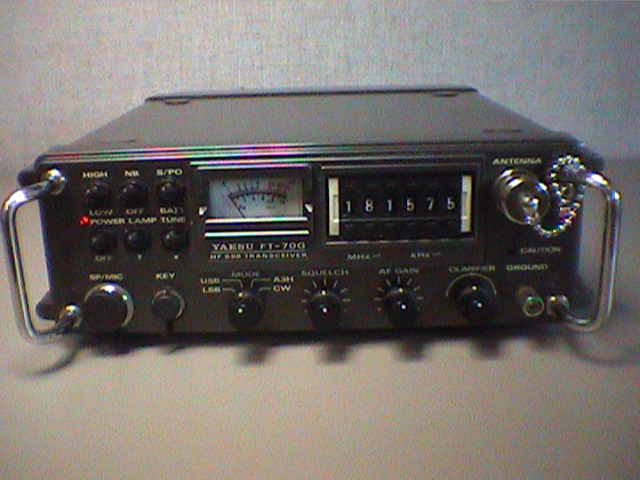

FT-70G
Transceiver Specifications:
Frequency Range
Transmitter: 2.0000~29.9999MHz Continuous
Receiver: 0.5000~29.9999MHz Continuous |
Power Output (High/Low Selectable)
USB, LSB, CW = 14Watts / 4Watts
AM = 5Watts / 2 Watts |
Frequency Tuning
6-Digit thumbwheel switches; 100Hz step |
SSB Modulation Speech Processing
Compression 20dB |
Number of Channels
9333 Continuous 3kHz channels |
Harmonic, Carrier, Unwanted SSB
Suppression better than -50dBc |
Emission Mode Type
USB, LSB, CW, AM, Data (audio data) |
Handset Impedance
600 ohms |
Antenna Impedance
50ohms |
Tone Oscillator Frequency
1500Hz |
Power Requirement
External 12VDC Vehicle System
External 13.8VDC Power Supply/Charger
Internal 14.4VDC NiMH battery |
Receiver Type
Double conversion Superheterodyne
Hardware PLL synthesis, no microprocessor |
Power Consumption
Transmit SSB (Low Power) 2.4A
Transmit SSB (High Power) 5A |
IF Frequencies
47.055MHz
10.700MHz |
Operating Temperature
-10 degrees C ~ 50 degrees C |
Receiver sensitivity [10dB (S+N)/N]
SSB/CW Better than 0.4uV |
Dimensions
242(w)x87(h)x277(d) mm without FNB-70
242(w)x87(h)x319(d) mm with FNB-70 |
Selectivity
2.4kHz Filter |
Weight
3.5kg without FNB-70*
5kg with FNB-70 *NiMH battery pack |
Image Rejection
1st IF better than 80dB
2nd IF better than 70dB |
Audio Output Power
More than 1.5Watts into 8 ohm load |
Clarifier Range
More than +/-300Hz |
