This project buries all cables to my EME 9.2 meter dish, my HF tower, and my satellite arrays.

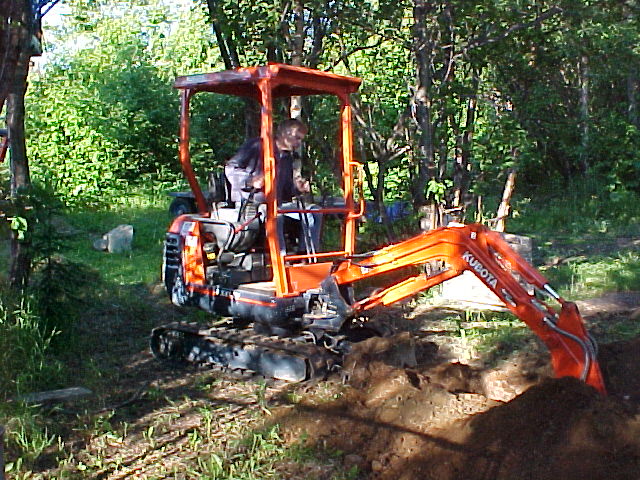

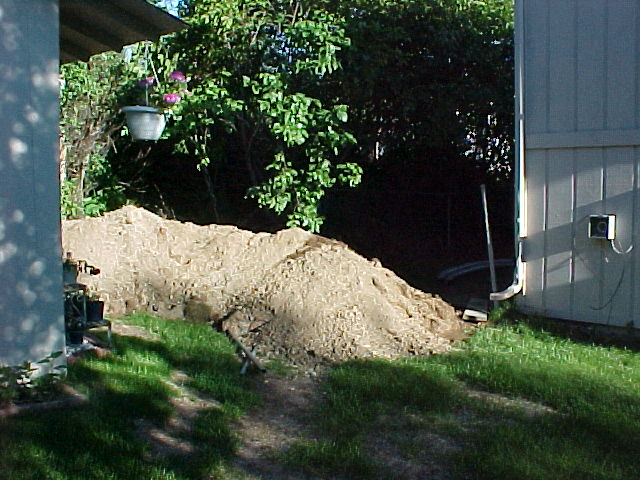

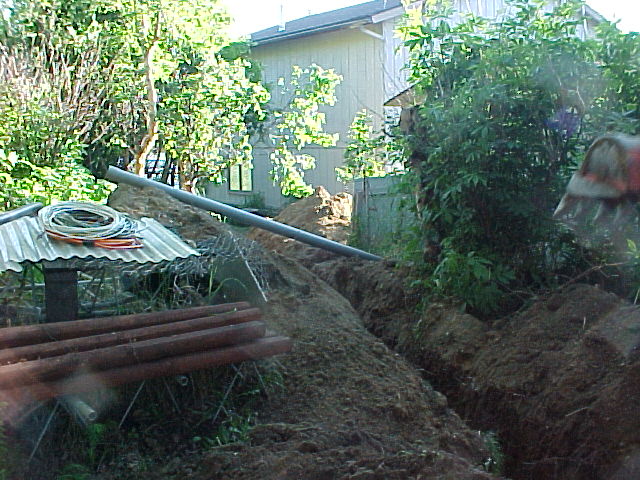

This array of photos shows what my cable mess looked like before, and the trench in progress.

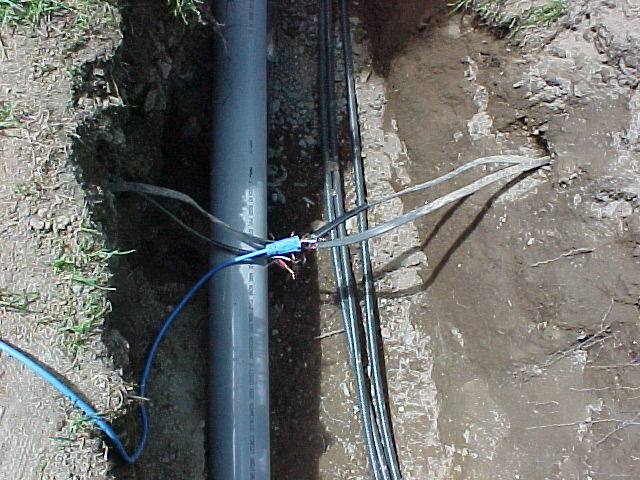

It also shows my screw-ups, (fixed). I broke the septic pump wires, and one of the septic pipes too.

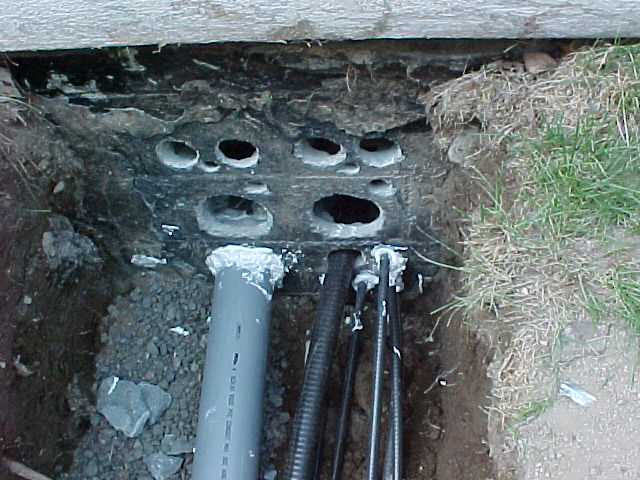

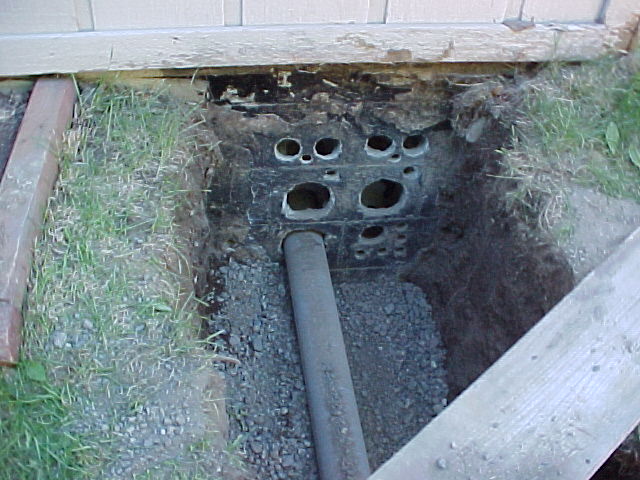

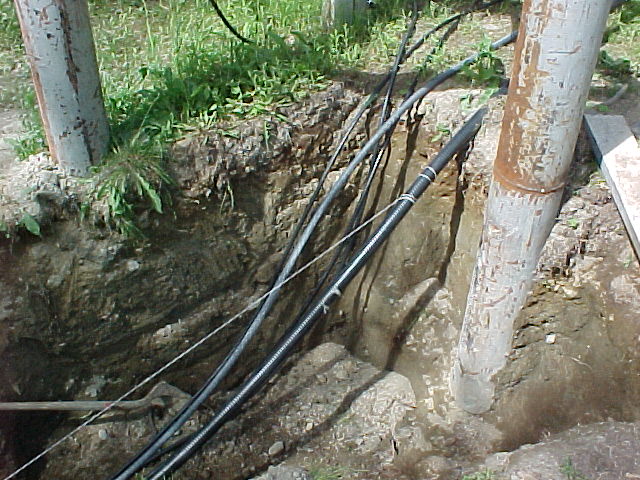

I am installing three 4" pvc and three 2" ducts and a bunch of direct burial stuff including the following cables:
QTY |
Description |
2 |
1 5/8 Heliax |
6 |
7/8 Heliax |
3 |
Direct bury power cable |
4 |
Direct bury 25 pr control |
2 |
RG-218 |
1 |
EW-52 Eliptical waveguide |
I put one whole 4" duct in as a spare.
The 2" duct will contain lots of things not listed above.
73, KL6M
