FT-950 TO 3K-A CONTROL LINE INTERFACE UNIT:

(1/2013)

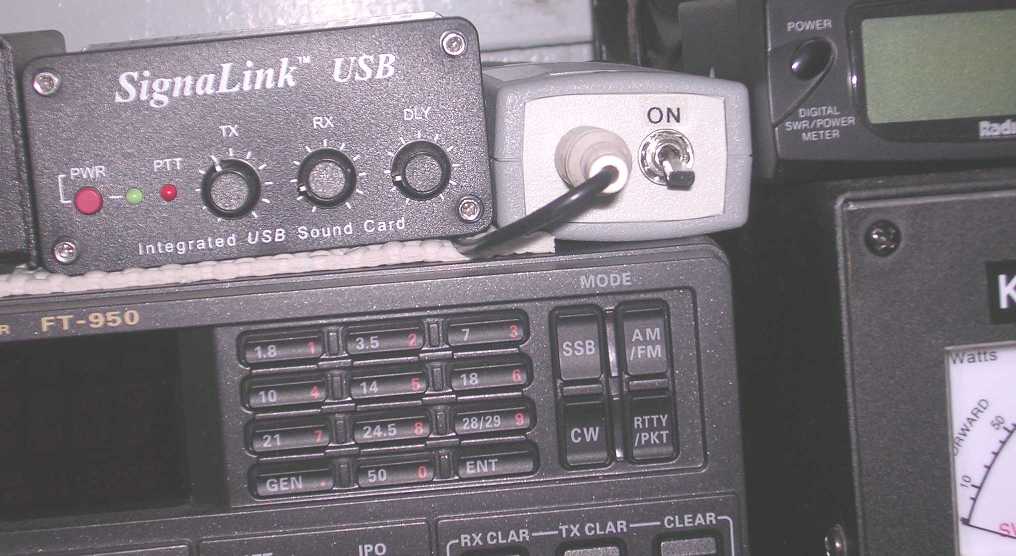

INTERFACE UNIT SITTING

ON TOP OF THE FT-950.

TOP VIEW OF THE INTERFACE UNIT.

THE CASE IS 3-1/2" x 2" x 1-1/4".

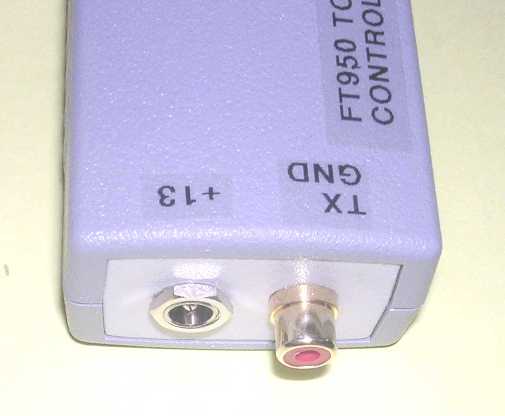

THESE TWO JACKS ARE FROM THE FT-950.

ONE CARRIES +13 VDC AND THE OTHER IS A GROUND ON XMIT.

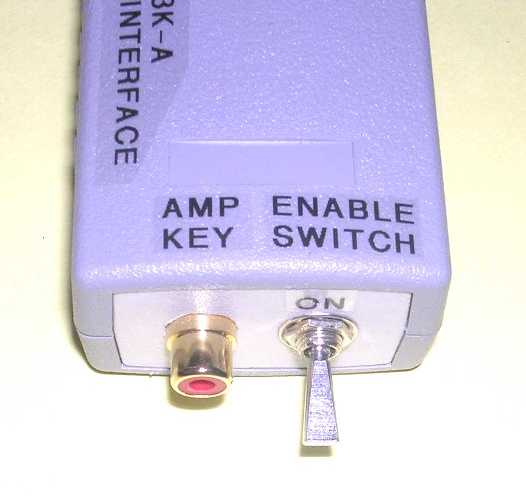

THE AMP KEY JACK CARRIES THE CABLE TO KEY THE

AMPLIFIER. THE ENABLE SWITCH IS IN SERIES WITH

THIS LINE AND ENABLES THE AMP TO BE USED OR NOT-USED.

INTERNAL VIEW OF THE UNIT.

CLICK HERE FOR THE SCHEMATIC IN A .pdf DOCUMENT.
