Transmitter building housing three
transmitters, administrative offices, engineers' laboratory & shops,
water stills for cooling the large tubes, cooling blowers, power substation,
high-voltage (20 kva) power supply,
modulators power supply,modulators,rest rooms, full-length control room
in the center, and the security guard tower. The entire property
was fenced
with a security guard house at
the entrance.
|

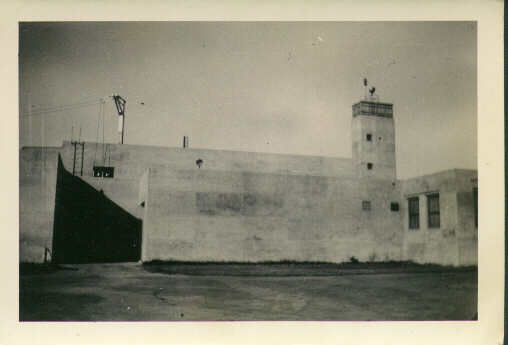

South side view of the transmitter
building showing the large room housing the large modulation transformers
and the feed lines exiting the window above the 200-kw final water-cooled
tubes and the tank coil.
|
Rear of the transmitter building
showing the
six 8 by 8 foot cooling radiators
with automat-
ic louvers to control water temperatures.
The
car is my 1941 Ford sedan.
New cars didn't exist and we all kept driving our cars foryears.
|

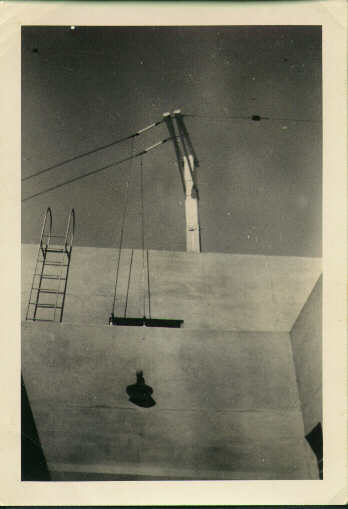

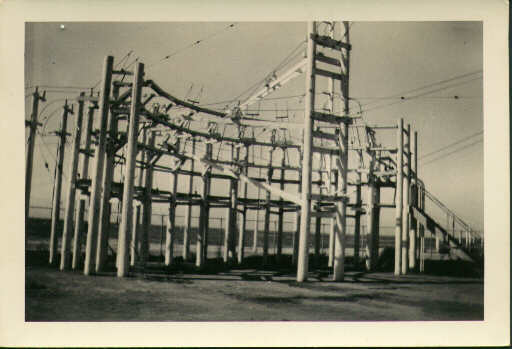

View showing how the high-power
doubled
feed lines exited the building
through a special
glass insulator window especially
engineered
for the purpose. Double quarter-inch
copper
wires were used to handle the high
power output, and they were clamped together every
two feet to prevent reflections
and tune the lines.
|
