4-1000A HF AMPLIFIER

Here are pictures of my homebrew 4-1000A HF Amplifier. This amplifier covers the 80, 40, 20, 15 and 10 Meter Amateur bands. Plate Voltage is around 5500 Volts under load. Drive power is less than 100 Watts for full legal power. Check back soon as more pictures are about to be added!

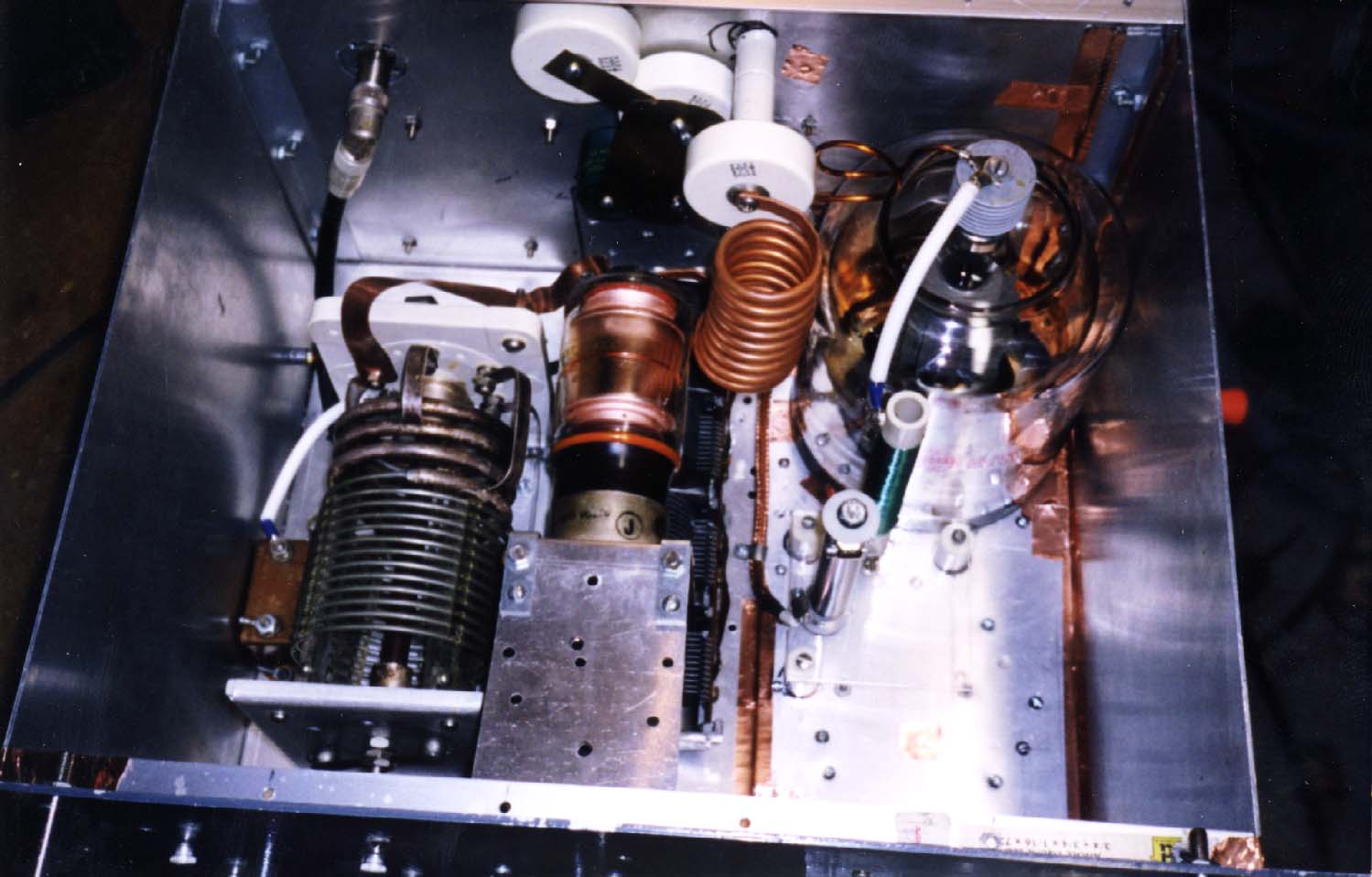

RF Deck of the Amplifier

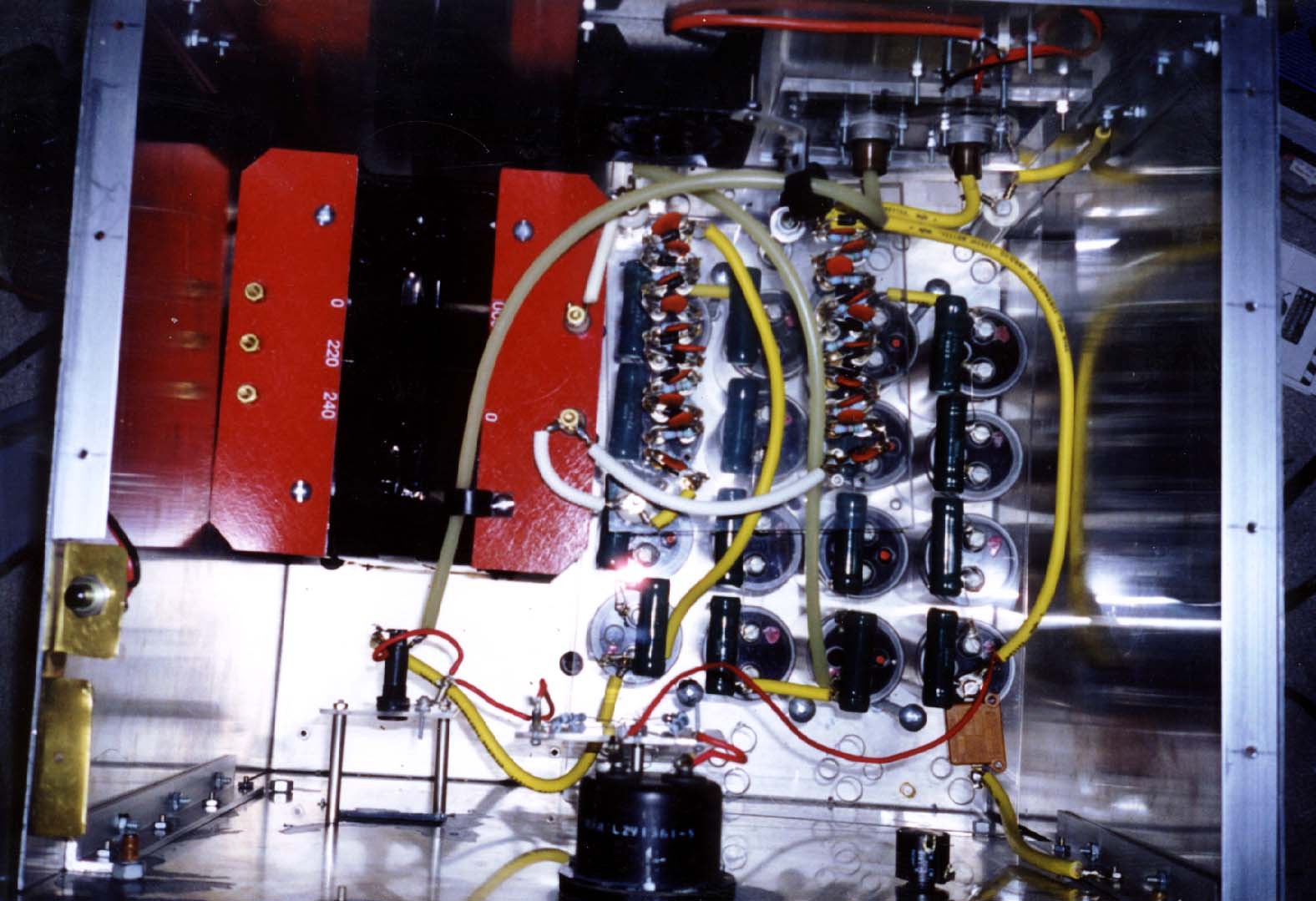

Power Supply Deck
