Serial wiring: Computer to 1278.
The MFJ 1278 uses a 25 pin serial connector. Most computers use a 9 pin serial connector these days. You can either buy a 9 to 25 pin adapter, or if you have the urge, here's the wiring chart to make a patch cable.

DB25    DB9

2 -------- 3
3 -------- 2
4 -------- 7
5 -------- 8
6 -------- 6
7 -------- 5
8 -------- 1
20 ------ 4
22 ------ 9

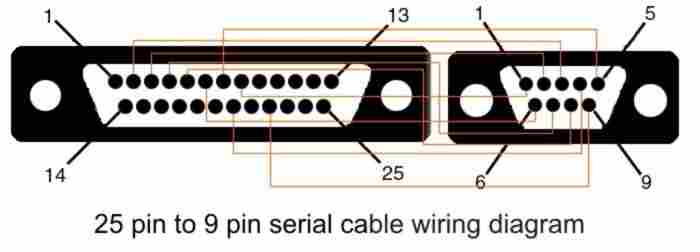

These views are looking at the connector end.
