NEC2 example plots

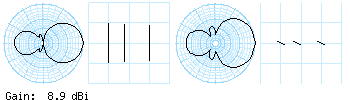

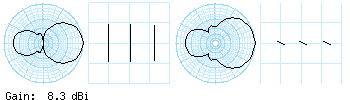

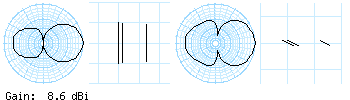

Examining yagi reflector spacing

Z0
(ohms)		Freq.
(MHz)		ReflectorDrivenDirectorScale
factor		Uncorrected
(MHz)		Gain
(dBd)		F/B
(dB)
2.4 146.0 0.508 0.050 0.4830.300 0.463 0.9841143.682 6.4 6.2
4.2 146.0 0.508 0.075 0.4830.300 0.463 0.9733142.097 7.1 8.1
6.9 146.0 0.508 0.100 0.4830.300 0.463 0.9646140.829 7.2 8.4
10.4 146.0 0.508 0.125 0.4830.300 0.463 0.9572139.751 7.1 8.2
14.6 146.0 0.508 0.150 0.4830.300 0.463 0.9508138.820 7.0 7.9
19.4 146.0 0.508 0.175 0.4830.300 0.463 0.9453138.019 6.8 7.6
24.9 146.0 0.508 0.200 0.4830.300 0.463 0.9407137.339 6.7 7.3
30.9 146.0 0.508 0.225 0.4830.300 0.463 0.9369136.789 6.6 7.0
37.4 146.0 0.508 0.250 0.4830.300 0.463 0.9341136.374 6.4 6.8
44.4 146.0 0.508 0.275 0.4830.300 0.463 0.9322136.106 6.2 6.5
51.8 146.0 0.508 0.300 0.4830.300 0.463 0.9316136.010 6.0 6.3
59.7 146.0 0.508 0.325 0.4830.300 0.463 0.9322136.102 5.7 6.0
67.9 146.0 0.508 0.350 0.4830.300 0.463 0.9345136.436 5.3 5.7
76.4 146.0 0.508 0.375 0.4830.300 0.463 0.9390137.099 4.8 5.2
84.4 146.0 0.508 0.400 0.4830.300 0.463 0.9461138.129 4.1 4.5
