Frequency - 28.239 MHz
Radio - President HR2600
Power - 5 Watts PEP
Antenna - Vertical 30 ft high
Location - Mayville, MI
Callsign - KC8QNO
|

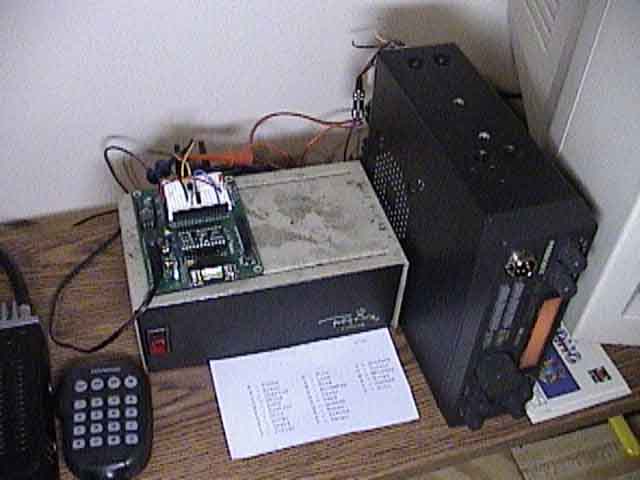

Frequency - 28.239 MHz Radio - President HR2600 Power - 5 Watts PEP Antenna - Vertical 30 ft high Location - Mayville, MI Callsign - KC8QNO |
|

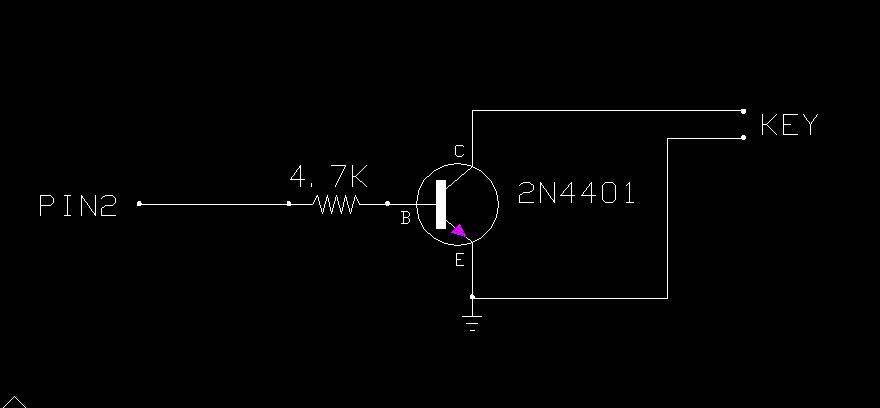

 This is the BS2 with the above circuit added. |
 This is a close up of the Above circuit. The yellow wires go the the key port on the rig. |
I also added a LED that flashes evey time the Rig is keyed . That way I know what the stamp is doing. PIN1 on the BS2 controls the LED. Just connect the LED to PIN1 and make sure you have a 470 Ohm resistor in series with the LED to prevent it from getting too much current.
The Code for the BS2 is written in a form of BASIC called PBASIC. It is very easy to learn and understand. I am not going into detail about how the code works. I recommend going to www.parallax.com and download the manual for free.
The BS2 is programmed through a RS232 Serial port that connects to you PC. Once the EEPROM is programmed, it automatically executes if it has power. You can download the code I wrote for free. I have several different flavors of the Code (see below).
| CW Code |
Use this code for the above circuit shown. Will control any rig with a standard CW key. |
| Tone CW Code |
