R-2000
Connector Reinforcement Mod
Submitted by Terry

I ran into a minor problem with both the rear external speaker jack and the front record output jack becoming loose.  I used another type of Liquid Tape (BY CG) to reinforce the mounting points.  The CG version of Liquid Tape dries to a hard, barely flexible finish and is great for this type reinforcement.  My R2000 has spent many hours in pretty severe service.  It has been on many picnics and has suffered more than its share of use or abuse.

The following photos show the Record out connector and how I use CG Liquid Tape along the edges of the
connectors and circuit board:

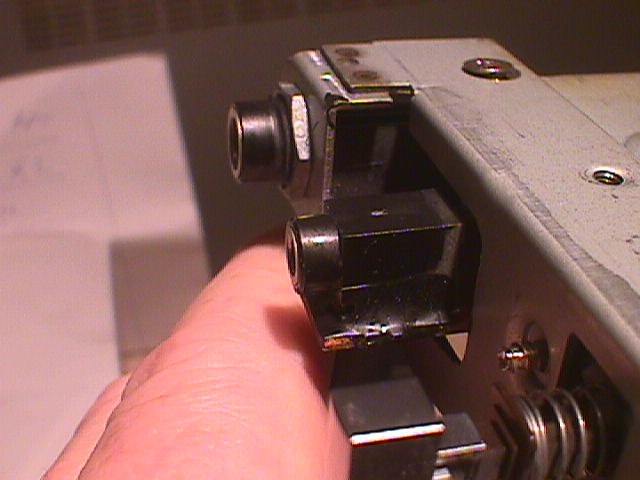

SIDE VIEW




BOTTOM VIEW




VIEW OF THE EXTERNAL SPEAKER CONNECTOR
