Run a backup before and then again after you do this just in case http://pi-star.local/admin/config_backup.php
Use this link to go directly to the DMR configuration http://pi-star.local/admin/configure.php
Copy then paste this text (Unformatted) as shown below Red Text indicates where you need to add your data
[DMR Network 4]
Enabled=1.................................1= enabled / Ø= disabled
Address=tgif.network
Port=62031
Name=TGIF_Network
Debug=0
Location=4
Id=1234567
Password="redacted"
TGRewrite1=1,4000001,1,1,999999
TGRewrite2=2,4000001,2,1,999999
SrcRewrite3=1,1,1,4000001,999999
SrcRewrite4=2,1,2,4000001,999999

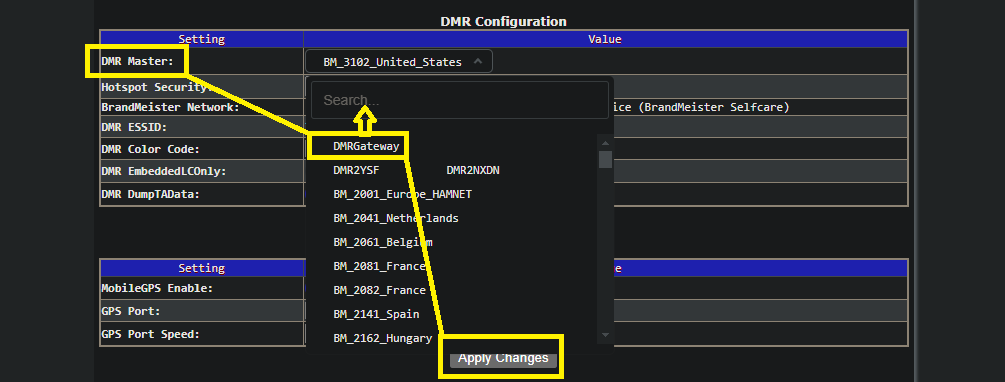

First enable DMR Gateway, to do this you must select "DMR Gateway" as your DMR Master Server then hit apply changes

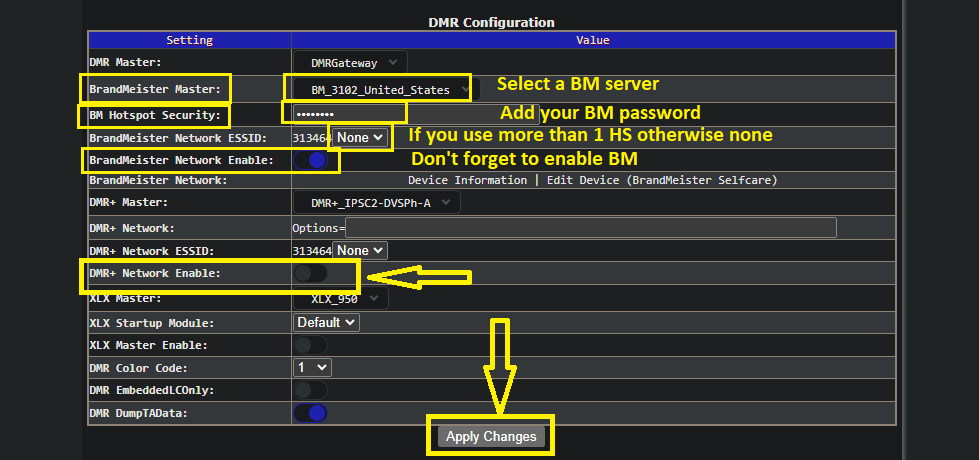

After hitting apply changes now configure your BM server and password
Now paste the provided gateway script under network #3
Make a space under network #3 and paste the text, keep the spacing as shown with the other networks
remember to add your TGIF password http://pi-star.local/admin/expert/fulledit_dmrgateway.php
You should see the new DMR networks and the status should all be Green if not wait for the servers to all connect, if the DMR status is Yellow the password for one of the networks is no good,
if anything is RED "Houston we have a problem" start over double check your work
Remember to add your new network talk groups to your code plug 4000000 seires for TGIF or whatever network you added there all must be 7 digits
TGIF Main-4031665
Enjoy your new networks
Remember to add these network
talk groups to your code plug and don't forget they will need to be
talk group rewrites to keep the networks separated in the HS
