WELCOME TO LEE'S ICT2A PAGE!

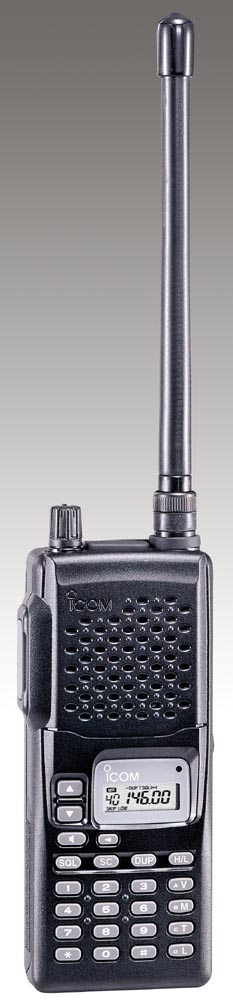

HERE IS SOME INFO ON MY IC-T2A
GENERAL
- Frequency Coverage:
IC-T2H: Tx: 144-148 MHz; Rx: 136-174* MHz (*144 -148 MHz guaranteed)
- Mode: FM
- Number of memory channels: 43 (40 regular, 2 scan edges and 1 call)
- Frequency stability: ± 10 ppm (0°C to +50°C)
- Operating Temperature Range: -10°C to +60°C; +14°F to
+140°F.
- Power supply requirement (negative ground): 9.6 V DC (supplied Ni-Cd cells)
- Current Drain (at 9.6 V DC):
- Transmit (6.0 W): 1.6 A typical; Transmit (1.0 W): 0.7 A typical
- Receive (power saved): 25 mA (typ.); (standby): 80 mA (typ.); (rated audio): 210 mA (typ.)
- Antenna connector: BNC (50
- Dimensions (mm/in): 58(W) x 140.5(H) x 32(D) mm; 2.32(W) x
5.5(H) x 1.32(D) in
- Weight (approx, w/antenna and battery): 420 g (14.8 oz.)
Transmitter
- Output power (at 9.6 V DC): 6 W High, 1 W Low (typical)
- Modulation: Variable reactance frequency modulation
- Max. frequency deviation: ±5.0 kHz
- Spurious emissions: Less than -60 dB
- External mic connector: 3-conductor, 2.5 (d) mm (1/10")/2k
Receiver
- Receiver system: Double conversion superheterodyne
- Intermediate frequencies:
- 1st: 30.85 MHz
- 2nd: 450 kHz
- Sensitivity (typ. for 12 db SINAD): 0.14 µV
- Squelch sensitivity (typ. at threshold): 0.16 µV
- Selectivity: More than 15 kHz/-9 dB, Less than 30 kHz/-60 dB
- Spurious and image rejection: 60 dB (typical) (more than -45 dB: half image point, except 2nd image)
- Audio output power (at 9.6 V DC): 500 mW (typical with an 8 load)
- External speaker connector: 3-conductor, 3.5 (d) mm (1/8")/8
The IC-T2A is a 2 Meter hand held it is very rugged and can take a lot of beating it gets in to the repeaters
fine and is awesome for simplex. I have realy liked the programable keys on the radio it helps alot for personal preference
But this radio has alot to offer with it not being packed with offers and goodies made for the bare ham who needs a radio that canget around
it has tone squelch and dtmf it is very easy to mod and works awesome outside the hamband perfect for firefighters or other why may you ask?
well it has a tunable duplex you can have any offset witch alot of pd and fd have wierd offsets that only motorola and othe radios can do
like my yaesu it cant do a repeater that chicago fire uses. But i warn you dont do anything your not alowwed to do! At only 169.00 bucks its a awesome
price you get a double aa battery pack with nicads and charger and of cours belt clip and manual If i were you order a extra pack and get the leather quick release
holster for it beleave me its worth it. If you have any questions feel free to email me! Here some links that might help.
IC-T2A MOD HERES THE MOD FROM QRZ.COM
