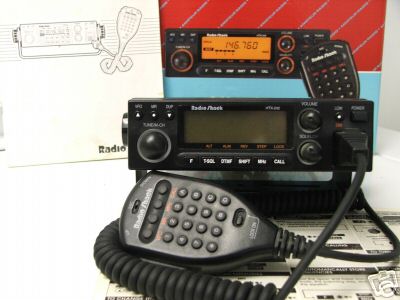

HTX-242
| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-148 MHz RX: 136-174 MHz 5/10/12.5/20/25/50/100 KHz steps |
| Mode: | FM |
| RF Power output: | Hi: 45 W Lo: 10 W |
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 70 dB |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/- 15 % |
| Current drain: | RX: ? mA TX: 4/8 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 142*42*160 mm |
| Weight: | ? Kg |
| Manufactured: | 1998-xxxx |
| Other: | CTCSS and DTMF |
| Related documents: | Owner's
Manual - PDF |
