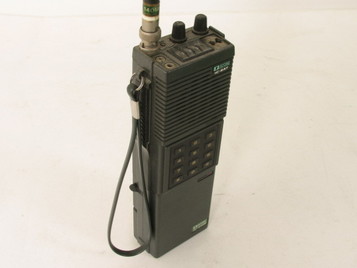

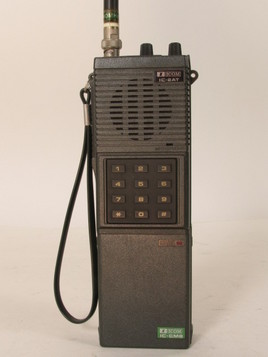

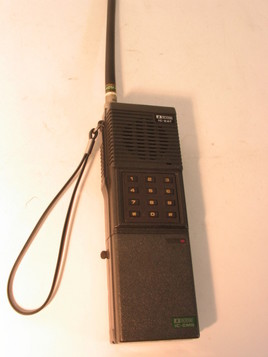

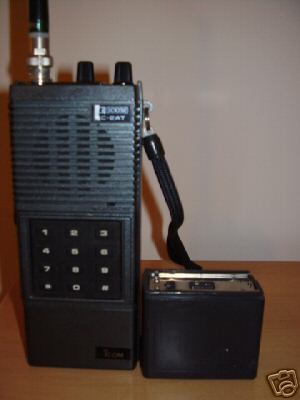

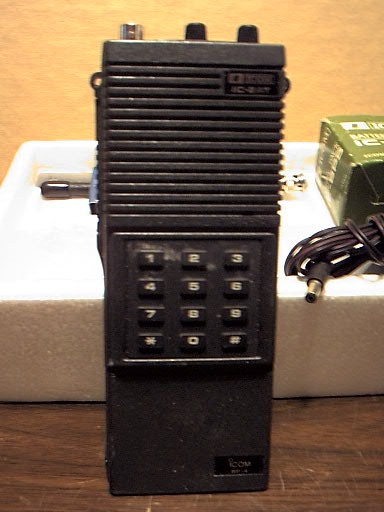

Icom IC-2AT
Type:	Amateur VHF transceiver
Frequency range:	144-148 MHz (5 KHz steps)
Mode:	FM
RF Power output:	Hi: 1.5 W Lo: 0.15 W
Sensitivity:	N/A
Selectivity:	N/A
Image rejection:	N/A
Voltage:	8.4 VDC
Current drain:	RX: 20-130 mA TX: 220-550 mA
Impedance:	50 ohms, BNC
Dimensions (W*H*D):	65*117*35 mm (without battery pack)
Weight:	490 gr (with BP3)
Manufactured:	19xx-19xx
Other:	DTMF
Related documents:	User manual (701 KB)
