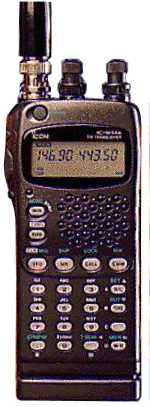

IC-W32A
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-148 / 440-450 MHz RX: 108-950 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 5/5 W Lo: 0.5/0.5 W |
| Sensitivity: | < 0.16 microvolts |
| Selectivity: | 15 Kcs = -6 dB 30 Kcs = -60 dB |
| Image rejection: | > 60 dB |
| Voltage: | 4.5 - 16 VDC |
| Current drain: | RX: 40-210 mA TX: Max 1.6 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 57*137*33 mm 2.25" X 5.4" X 1.3" |
| Weight: | 450 gr |
| Manufactured: | 1995-1999 |
| Other: | Twin RX Replaced by the IC-T7, Then by the IC-T7 Sport. |
| Related documents: | User manual (720 KB) PDF |
