2 Meter

IC-260A

Icom IC-260A Specs

This is a very simple all-mode radio, incorporating two VFOs (which can be used for split operation), and three memories. It is capable of scanning either the entire frequency range (143.8 - 148.2 MHz in American market models) or the memory channels. The VFOs can be ganged together for repeater work.

The radio has a Noise Blanker circuit, which I've had no use for (but may reduce some ignition-related noise), and an AGC fast/slow control. There is also an RIT control, which is useful for SSB and CW operation.

CW may be used either with a straight key or with a keyer -- there is no keyer built in. The internal speaker fires downward, in classic mobile style. The mobile bracket resembled a rigid strap which clamps around the radio to provide mounting holes.

The manual is complete and informative. If you're already familiar with all-mode operation, such as on an HF rig, you aren't likely to find many surprises here. The manual does come with both a schematic diagram and a color diagram of parts layout on the board, but these sheets are loose and folded inbetween pages. None of the materials I have are dated, but I believe the radio was produced in the early '80s.

I have been pleased with the performance of this radio, given its age and relative simplicity. It puts out (I've been told) clear strong audio, and the receiver seems adequate. I have no basis for comparison, or I might be able to rate the receiver more accurately

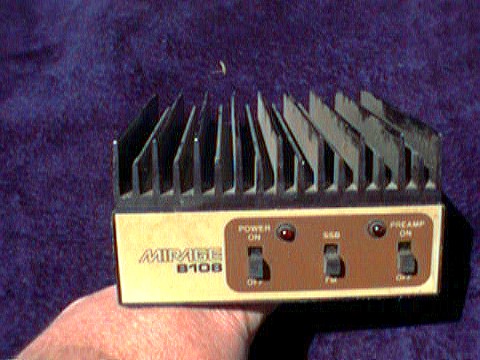

Mirage B108 2-meter 80 Watt Linear Amplifier

Mirage Model B108 2-meter linear amplifier. 10 watts in, 80 watts out, FM, SSB, and preamp

Note My amp is alot cleaner!!!

CUSHCRAFT 13B2



The Cushcraft 13B2 is a wideband 2m beam. The rugged design, requiring no boom supports allows either horizontal or vertical polarization. Its wide bandwidth offers efficient operation throughout the entire 2m band

Techincal Specifications

frequency coverage....144-148 MHz

2:1 bandwith..............>4 MHz

typical VSWR...........1.2:1

3db beamwidth.........36" /38" E/H plane

boom lenght...........15 feet

mast size................1.5-2

elements................13

longest element.......39.7 inches

forward gain...........15.8 dbd

F-B ratio................26 db

power rating...........2000 watts PEP

connector................SO-239

weight.....................6.7 pound

windload.................1.8 sq. ft.

6 Meter

Home Brew Dipole,made by KB7DQH

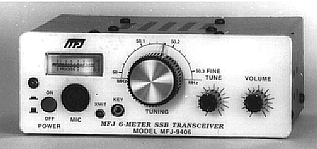

The MFJ 9406X is a 10 watt 6m transceiver for CW and SSB operation. It features a crystal-mixed single conversion superhet receiver with low noise preamps to help pull in weak signals. The 10 watt transmitter features MFJ's "Constant-Current" speech processor to deliver up to 6 db more audio punch. The 9406 also features an SSB ladder filter, low pass filter, S-meter, and more

2 Meter & 70CM



  • CUSHCRAFT A148-10S
  • 144-148 10 Element 2 Meter Beam
  • 13.2 dBd gain, 12 ft boom, longest element 40.3 in.,
  • 6 ft turning radius, 1.21 sq ft wind load, SO239 connector

    •

  • CUSHCRAFT A449-6S
  • 440-450N 6 Element 70 CM Beam
  • 10.5 dBd gain, 2.9 ft boom, longest element 40.3 in.,
  • 2.9 ft turning radius, 0.30 sq ft wind load

    •
    Type: Amateur VHF transceiver
    Frequency range: 220-225 MHz (10 KHz steps)
    Mode: FM
    RF Power output: Hi: 1.5 W
    Lo: 150 mW
    Sensitivity: N/A
    Selectivity: N/A
    Image rejection: N/A
    Voltage: 6-10.8 VDC
    Current drain: RX: Max ? mA
    TX: Max 550 mA
    Impedance: 50 ohms, BNC
    Dimensions (W*H*D): 65*117*35 mm (without battery)
    Weight: ? gr
    Manufactured: 19xx-19xx

    Fan-tenna... An antenna made from a fan?

    Fan-tenna

    Its cut for 223mhz
