K9ES Station (2000)
|
The

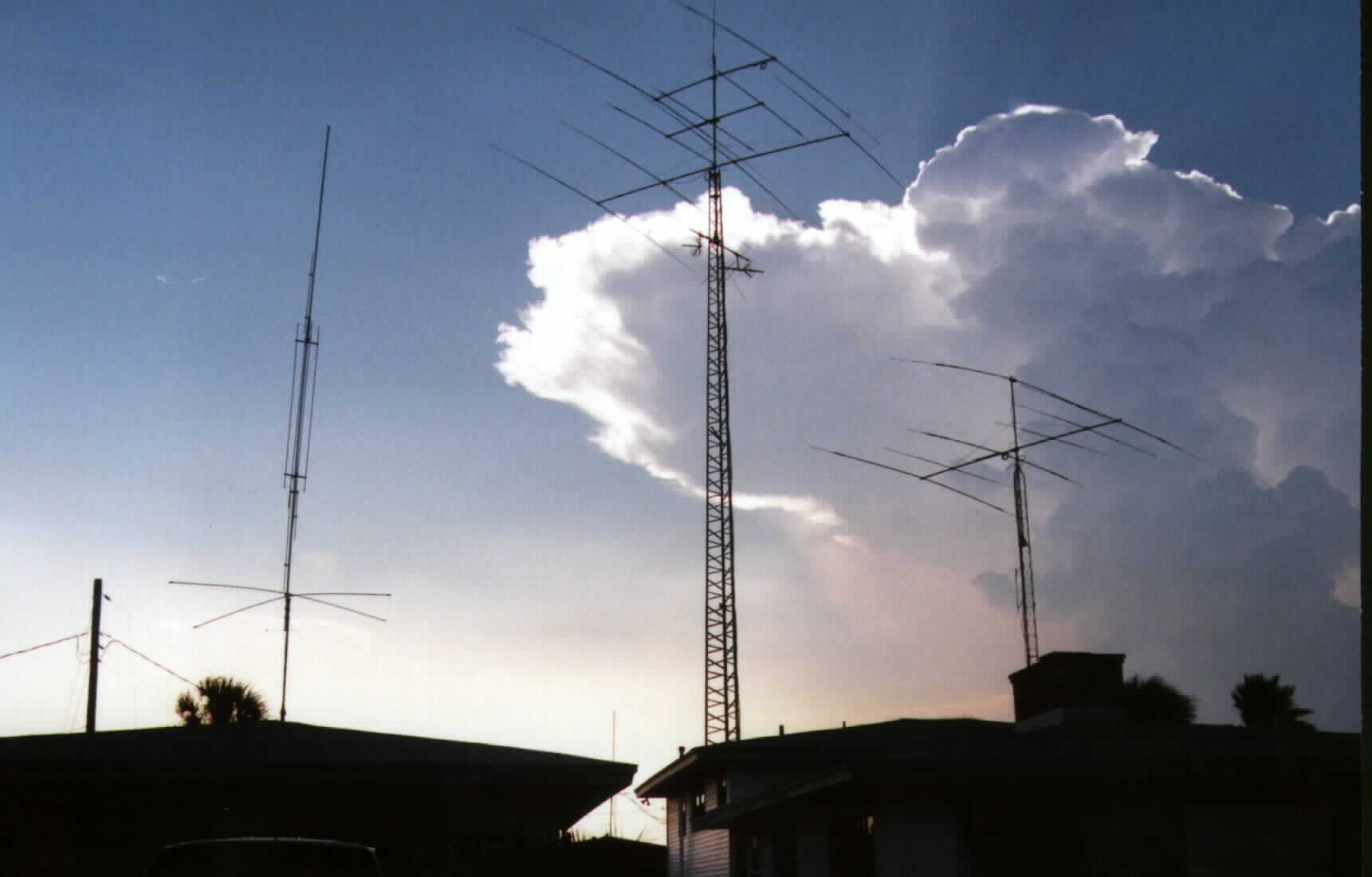

"Antenna Farm" at K9ES (2000)
|
|
Gap
Titan
|
80
ft Tower
|
45
ft Tower
|
|
on
Garage as
|
2
el 40 @ 95'
|
D3W
@ 52' WARC
|
|
OMNI
Monitor
|
DB10-15
@ 88'
|
TH6DXX
@ 45'
|
|
204CD
@ 81'
|
2M
Packet @ 40'
|
|
|
TH3
(SSE) @ 32'
|
||
|
Inv-Vee
80 @ 75'
|
||
|
Inv-L
160 @ 72'
|
||
|
2M
J-Pole @ 105'
|
| My station consisted of a borrowed IC-765 (from AD4ES), driving a Tentec Centurion KW Amp. I had a switch panel that accesses all antennas to 2 positions. I used Writelog Version 10 software to integrate the equipment. I also used a Timewave 599 DSP filter, and an MFJ Contest Keyer equipment. My 2 Meter packet station runs Packet-Cluster to KC4HW (144.97), and I have a 2 Meter FM station with the HTX242 and J-Pole at 105 feet. |
|
Centurion
Amplifier and Station
|

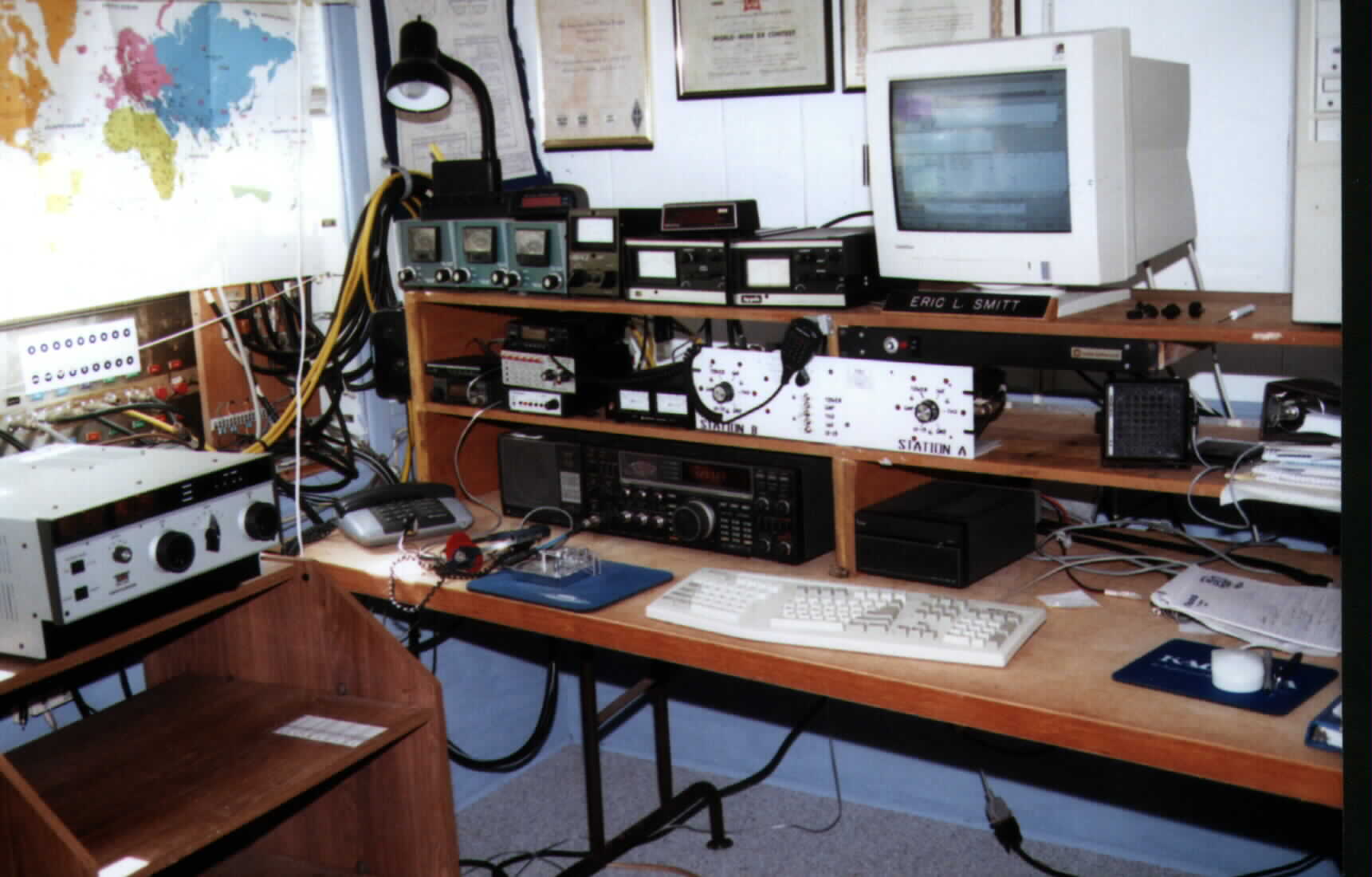

Station
Operating Position
|
|

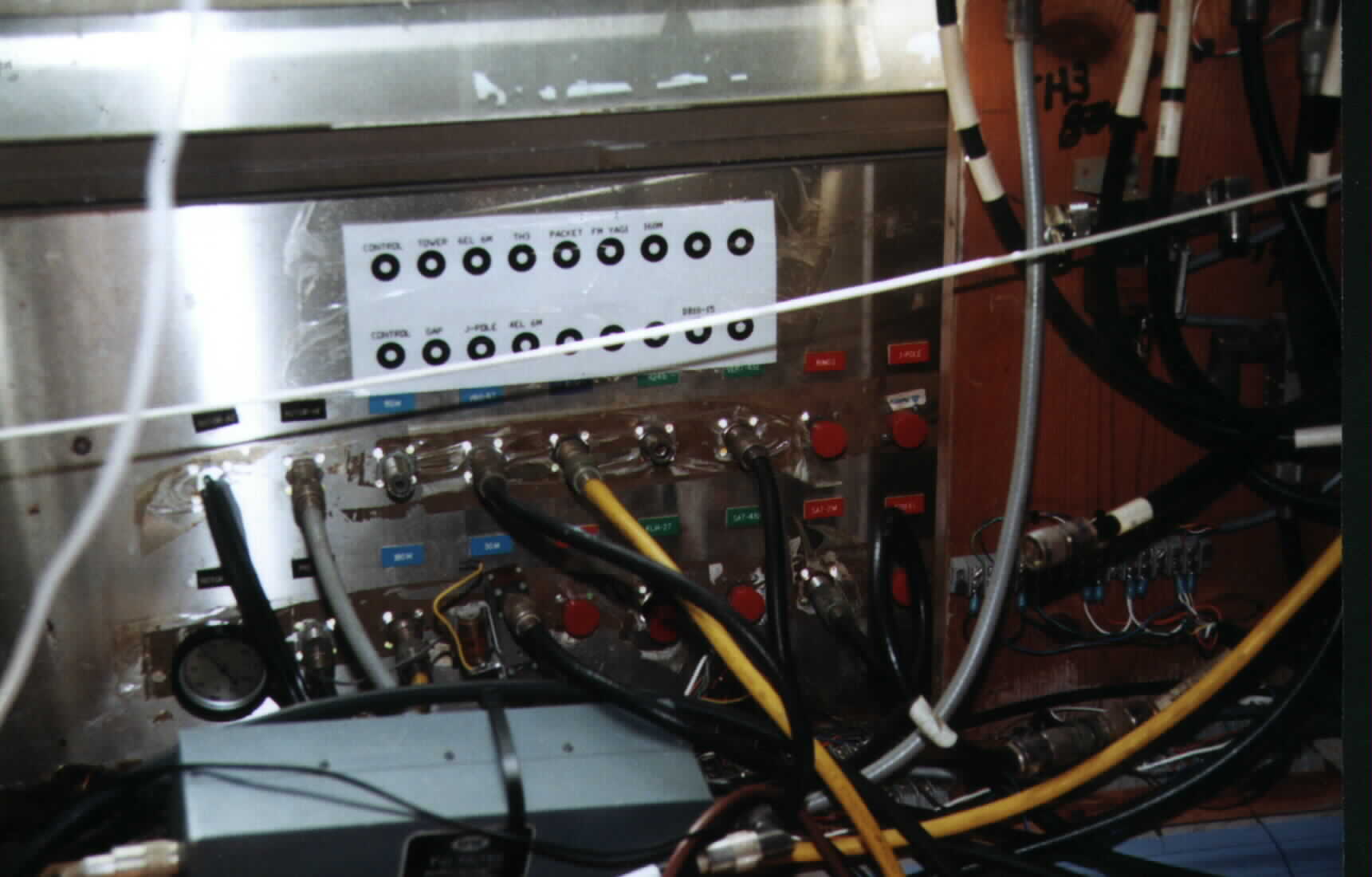

Antenna
Patch Panel, Relays
|

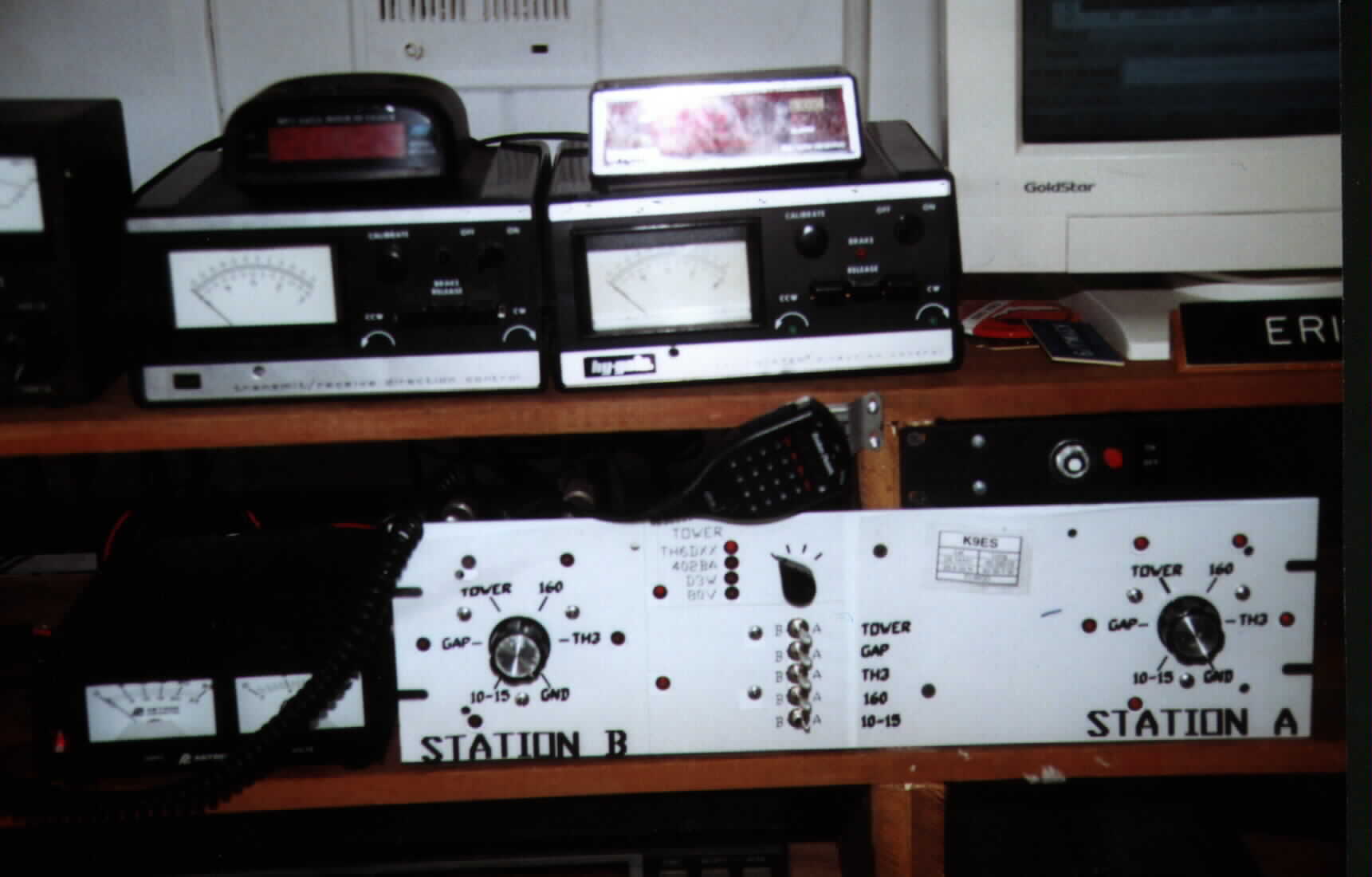

Op
Control, Rotors
|
|

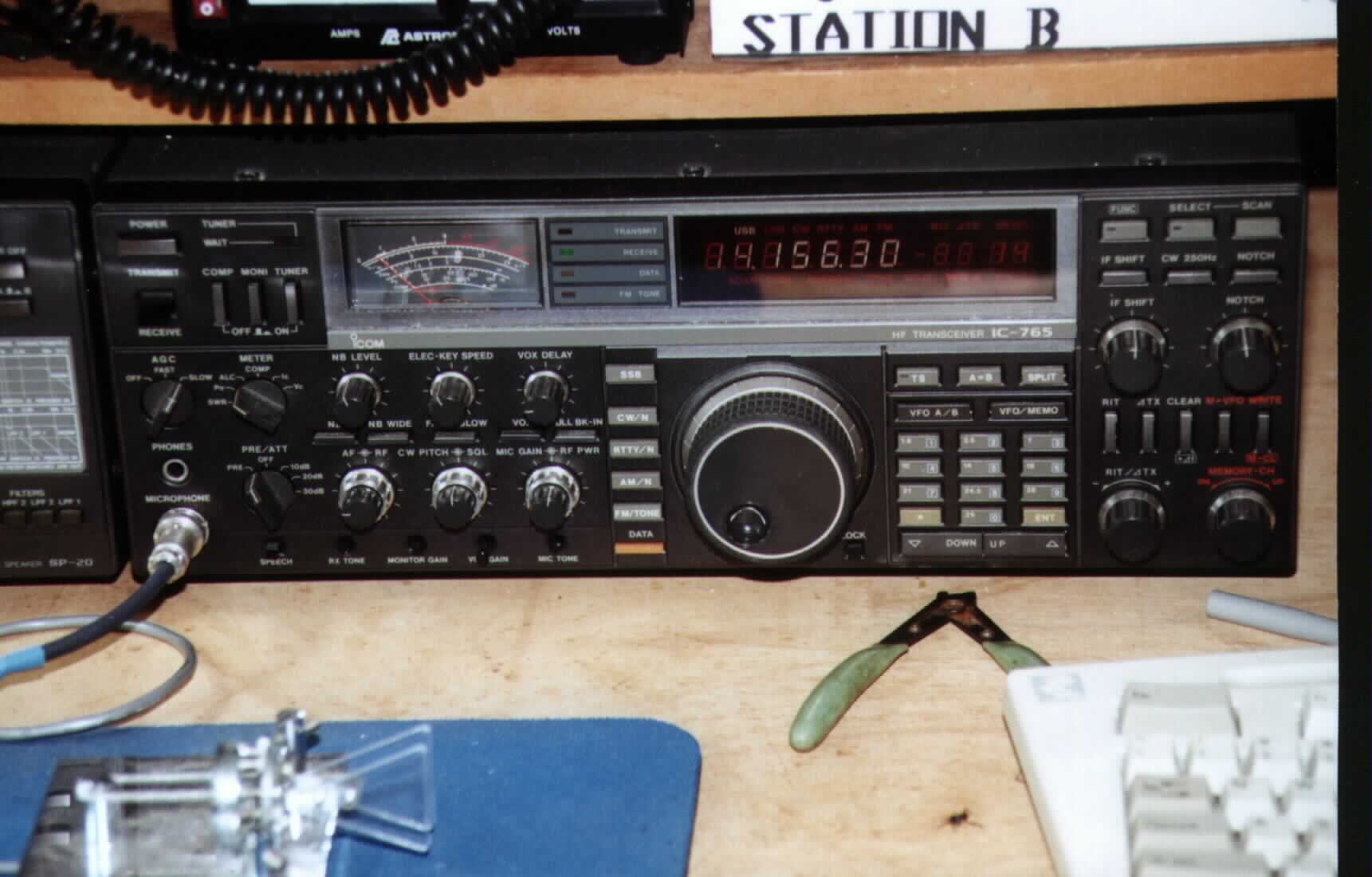

IC-765
Main Rig, Bencher Paddle
|

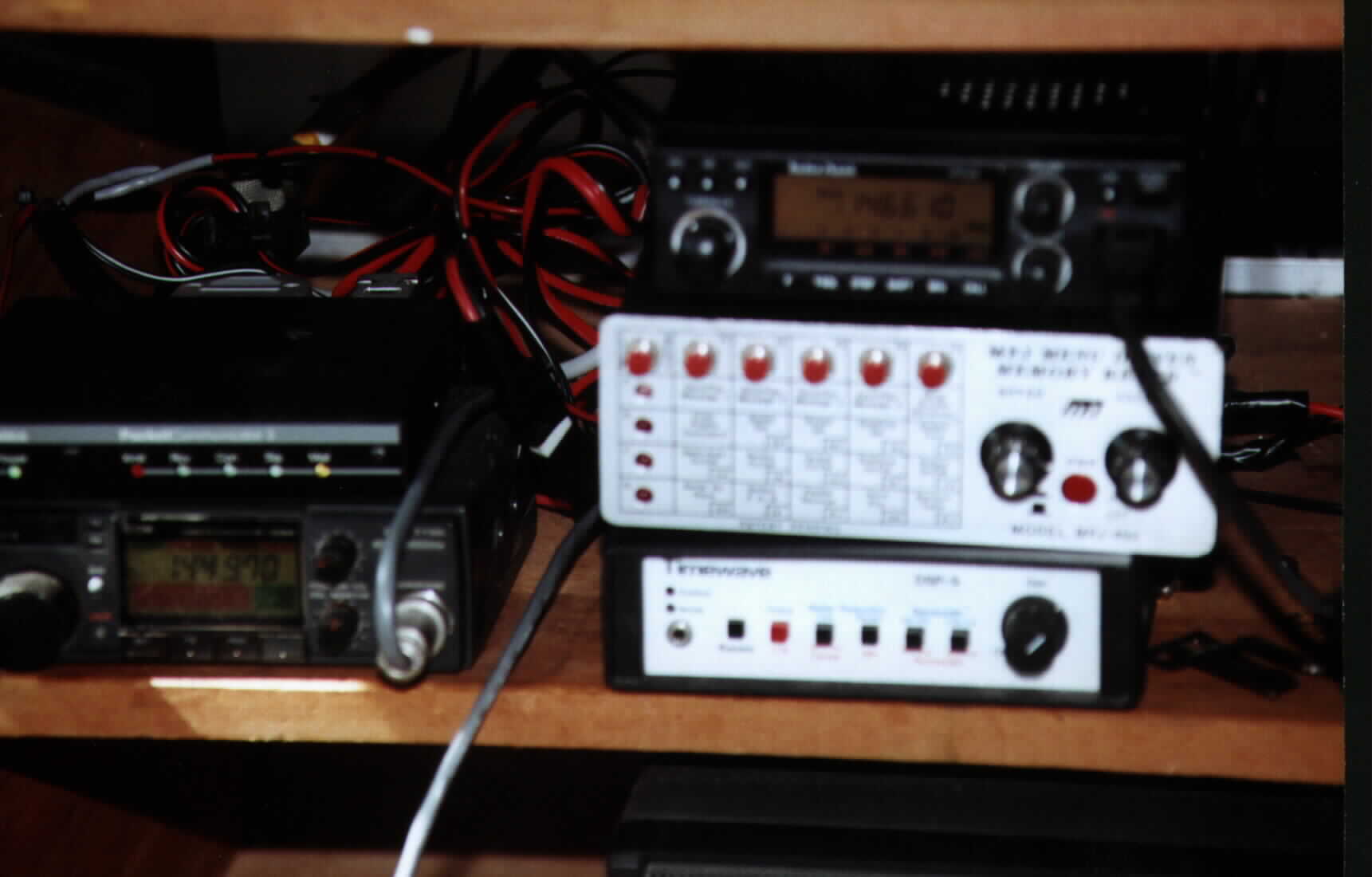

2M
Packet, MFJ Keyer, DSP, HTX-242
|

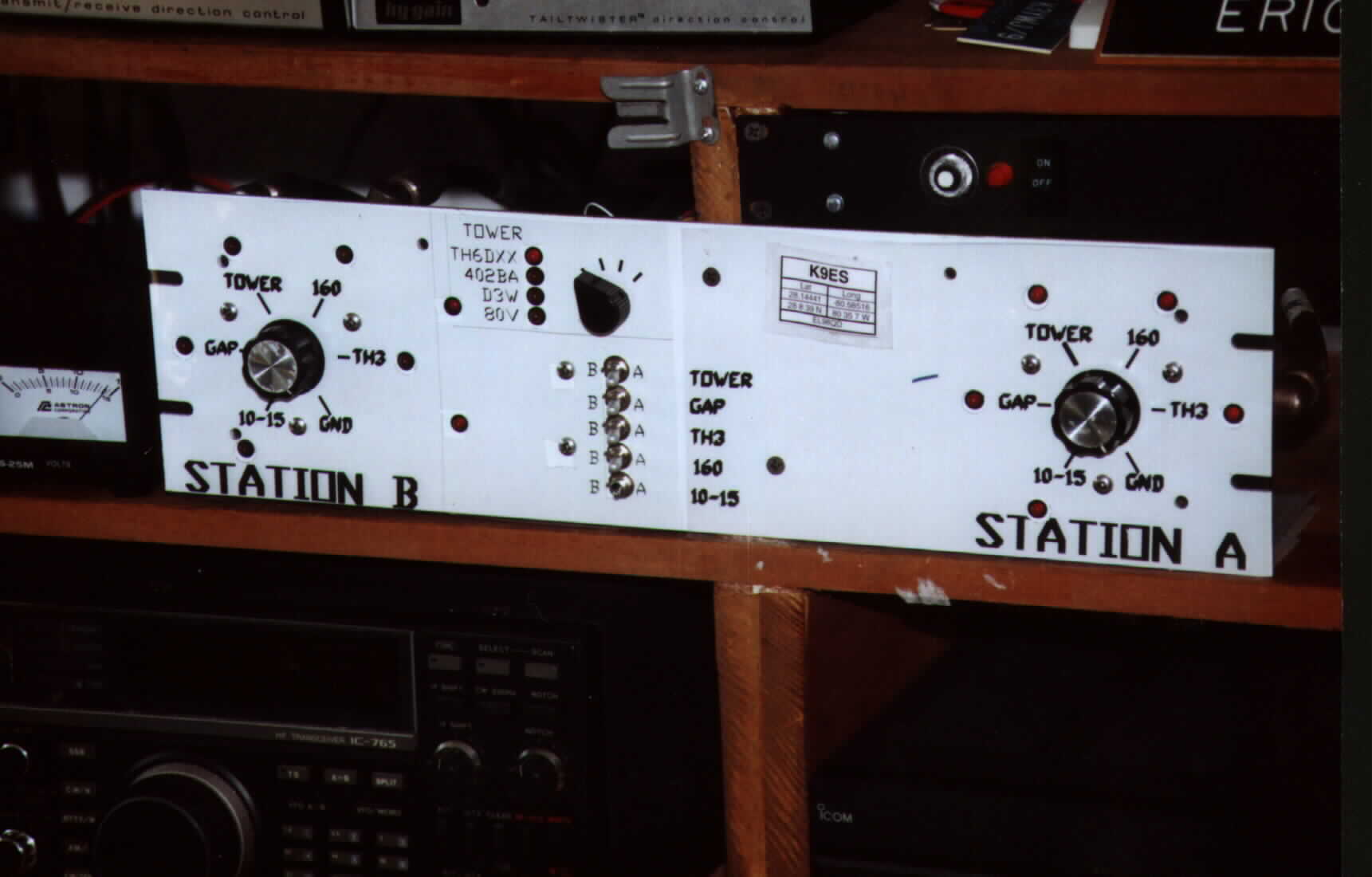

Antenna Switching Panel for Multi-Single
TS-50, MFJ-Keyer, HTX-242, Bencher Paddle

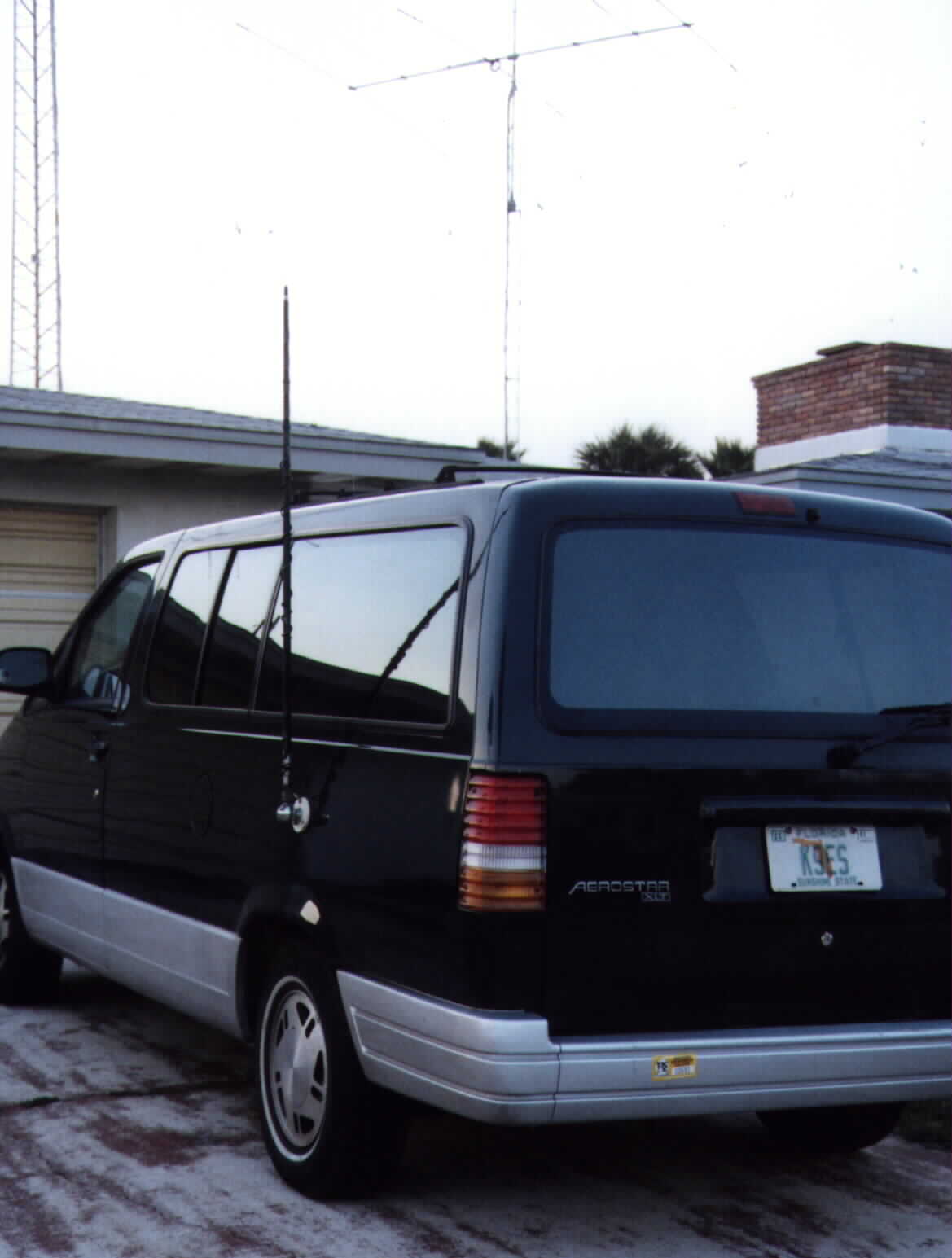

Outbacker Perth (no tuner used) on Ford Aerostar Minivan
| I also ran mobile HF and 2M FM. I had a TS-50 with a Outbacker Perth for HF and an HTX242 for 2 Meters. I ran SSB and CW from the mobile. For CW, I used an MFJ Econokeyer with a Bencher Paddle. More information will be added in time. 73's and thanks for visiting the page. |
