The club owns and maintains two repeater systems. The repeaters
are located on the hill north of Baxter Regional Medical Center in Mountain Home.
Click here to read the Repeater Guide
The VHF repeater requires a 103.5 Hz tone.
User commands are available to temporarily disable the tone requirement, and it is automatically disabled while linked.
The Cuckoo Club meets each morning at 9:00 AM and is open to anyone who would like
to join in.
An ARES/RACES net is held each Tuesday night at 7:00 PM except
for the 3rd Tuesday when members meet at the EOC building at 7:00 PM.
Anyone interested in joining ARES/RACES is welcome to check in or contact
Al Hundley.
The UHF repeater is normally enabled as a conventional repeater
(without tone protection).
The VHF repeater has the capability to link with Gainesville
Missouri.
To link enter *** or to unlink enter ###. These codes work
from either the OZARC or ARCO repeaters.
|
VHF Repeater
|
UHF Repeater
|
TX 146.88 MHz
RX 146.28 MHz
150 watts into the duplexer with AC power
10 watts into the duplexer with emergency backup power
A colinear Vertical Antenna rated at 6db gain, located on a KTLO tower on Capital Hill just north of the Hospital.
103.5 Hz encode tone required
|
TX 442.30 MHz
RX 447.30 MHz
90 watts into the duplexer with AC power
5 watts into the duplexer with emergency backup power
Beam antenna on a KTLO tower pointed toward Gainesville Missouri
|
PICTURES
Click here to see pictures from the top of the tower
For pictures of the Repeater equipment, etc. - Click here
Weather and other data can be retrieved from the
tower site using the following commands:
*0 � CTCSS Decode Enable
#0 � CTCSS Decode Disable
*1 � Day & Time
*2 � Temperature
*3 � High Temperature
*4 � Low Temperature
*5 � Wind Direction and Speed
*6 � Wind Speed
*7 � Peak Wind Speed
*8 � CW ID
*9 � DTMF Test
*** - Linking On
### - Linking Off
Note - Link times out and unlinks after 30 minutes of inactivity.
*111 � Weather Monitor Audio On (manual activation of Wx Audio)
#111 � Weather Monitor Audio Off
Note � Wx Monitor has a timer and can automatically turn-off.
|
You can also test your DTMF keypad by pressing *9 followed
by up to 16 characters.
The repeater will speak back the keys you pressed so you can confirm the keys
on your radio are working properly.
REPEATER COMMITTEE:
Chuck Sieben WB6QDI - Trustee & Control
Operator
Ken Ramos K9DSJ - Control Operator
Bud Hall N5LH - Control Operator
Al Hundley K5ABH - Control Operator
George Fox W0AEM - Control Operator
Jay Nottingham KD5YXW - Control Operator
David Martin K5DCM - Control Operator
 |

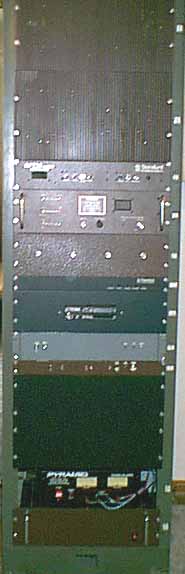

| < VHF RF POWER AMPLIFIER |
|
|
|
| < UHF RF POWER AMPLIFIER |
|
|
| < VHF REPEATER |
|
| < UHF REPEATER |
|
| < UHF DUPLEXER |
| < AUTO PATCH |
| < TELECOMMAND RADIO |
|
| < CONTROLLER
(click here for pictures) |
| < POWER CONTROL PANEL |
|
|
|
| |
| < 40 AMP UHF POWER SUPPLY |
|
| < 50 AMP VHF POWER SUPPLY |
|
|
