Ray-Tel TWR-5

Description 11 channel mobile AM transceiver
Years made 1965 - 1967
Original price $179.50
Circuit 14 transistors
Transmitter Crystal controlled, 5 Watts input
Receiver Crystal controlled, single-conversion, i-f frequency 455 KHz
Power supply 12 VDC
Features - Provisions for "Ray-Call" selective call encoder/decoder.
- Optional base station 115 VAC power supply unit.
Sams Photofacts Volume CB-8

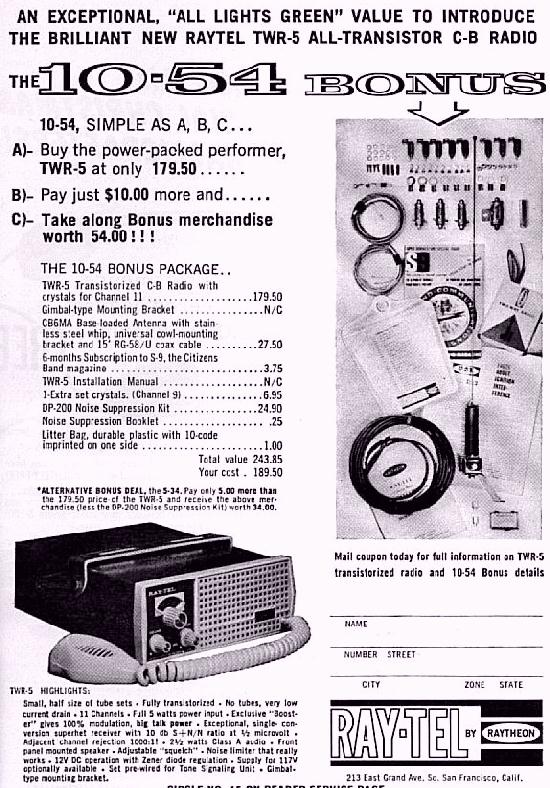

Advertising Popular Electronics, August 1964   (120K bytes)
Ford Motor Company, March/April 1965   (160K bytes, in color!)
Magazine articles Haven't found any yet

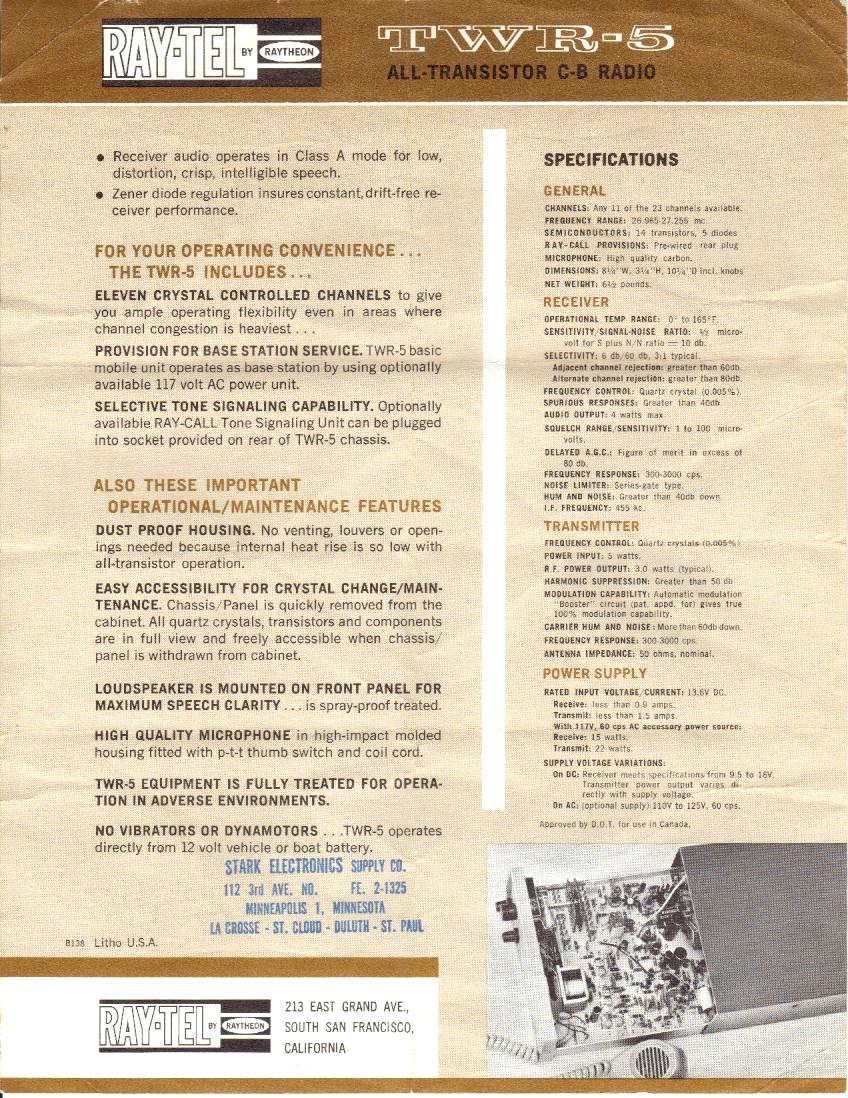

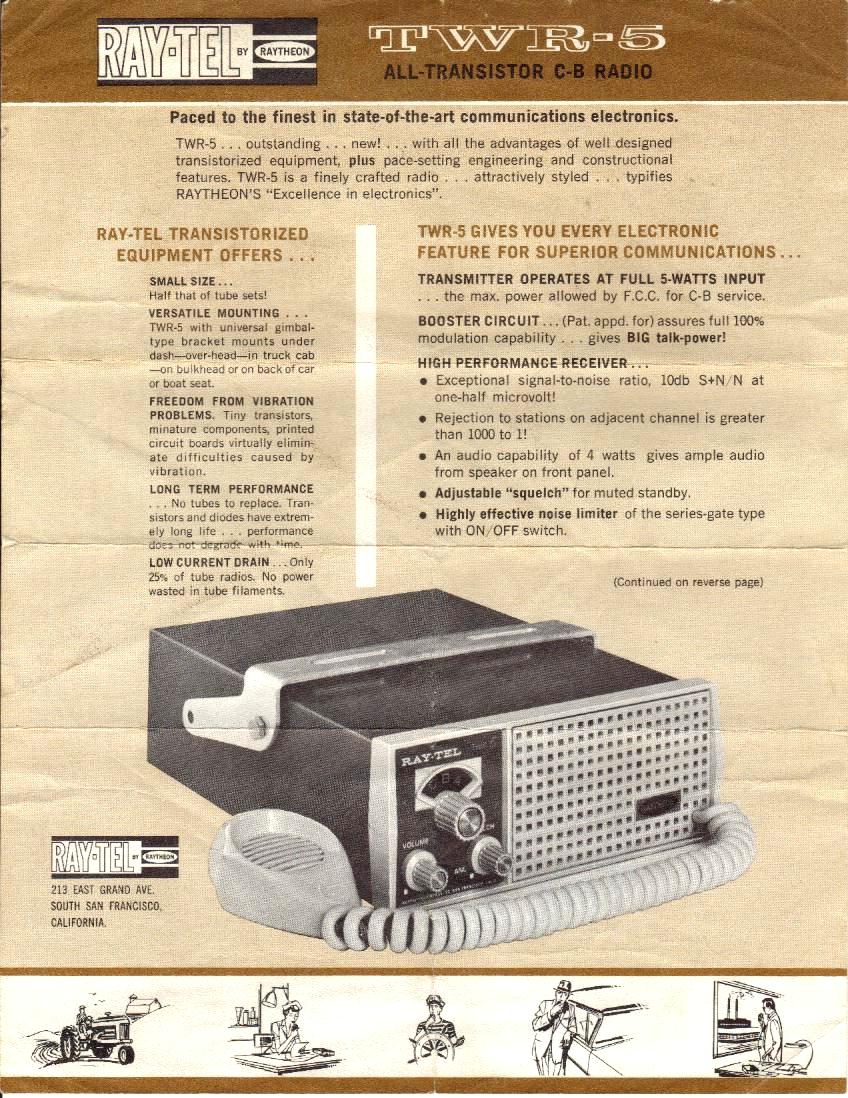

Other printed matter Original 8-1/2" x 11" two-sided Raytheon sales brochure:
Front (225 kB, in color!)   Back (235 kB, in color!)

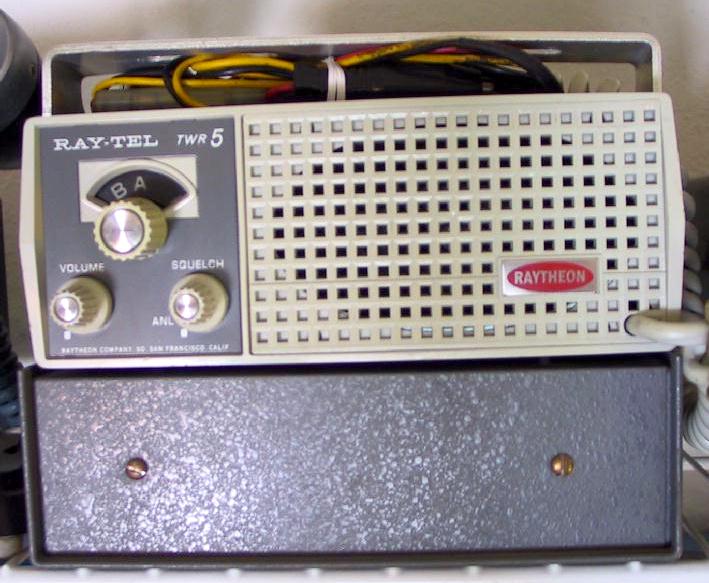

TWR-5 mounted on optional base station power supply:
