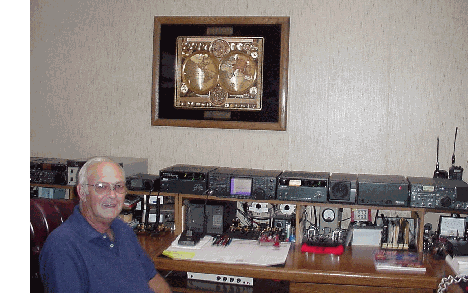

An Icom R-70
receiver with two HT's behind it, both dual banders an Icom Z1A and a Standard
C500, Pwr supply and then Icom SP-21 speaker then the IC-2KL Amplifier
then the Icom IC-756 Transceiver with the screen. Next to that is the AT-500
automatic antenna tuner, then the little Icom 706MKII. Behind my head is
the Ten-Tec Hercules II Amp. that I use with the 706. To the left then
is an Icom 701 and Pwr supply, and out of sight is a Heathkit HA-14Amp.
For the 701 station, and another AT-500 used with the 706 station.
Out of
sight to the right is where the 2 Meter junk is located, a Kenwood TR-7400A
and a KLM 140 watt amplifier, and then the Ten-Tec Mode B Satellite station
with the Mirage 100 watt amp. For 440. In the drawer beneath the desktop
is my CW keyboard and a set of paddles. On top of the desk is 4 different
sets of home made paddles of my design and behind me on the desk is another
6 sets of paddles (I have lots more in display case) along with lots of
bugs and collector keys.
The rest of
the shack is just Computers, to the Right is my old 486 terminal and TV
connected to the local cable. To the left of the operating position is
the secondary position and an old TRS-80 (my original computer from the
70's) that I still use for RTTY. Then down the left wall is a HP plotter
and another computer desk with a 386 notebook then a HP Deskjet-1000 color
printer. Then another computer desk which is behind the main op position
where I usually hang out at when using the terminals... on this desk I
have my Pentium 3 notebook and a 500 Mhz Dell main terminal. All the computers
have either 17" monitors or are using the 15" flat digital screens.
As you can see
this is more like a RTTY brag tape but that is just the main stuff. Sitting
on the floor is a Drake R4 receiver and a TenTec SP-325 Rx and more stuff,
I think after doing this I will sell about 2/3 of all the equipment and
will still have a lot... P.S. in the garage I have 2 386 terminals and
four PLC's that I have programmed to run some programs...
Haven't even
got to the outside yet... so will make it quick. A dipole Inverted V for
80 meters. A TA-36 six element tribander and a Hygain High Tower (full
size vertical for 80 through 10) looks like a tower but is a 57' tall vertical
antenna with 2000 sq. ft. of radials. On 2 and 440 I have two systems one
12 element 2 meter yagi at 50' and my Satellite antenna system 2 &
440 on top of a 24' tower for azimuth and elevation rotations. Do you want
to buy any ham radio junk? This is just too much! Take care and see ya
later.
Joe Miller K4DZM
