ARRL January 1999 VHF Contest
STATION INSTALLATION PHASE:

Back to VHF SS   /  Tower Installation   /  Lessons Learned   /  STATION INSTALLATION

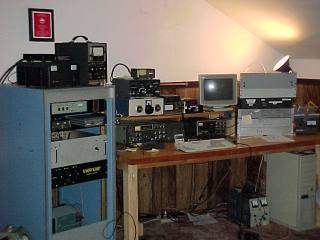

Once all the antennas were up, I was able to focus on
integrating a TON of gear into my station. Here's what I
came up with:

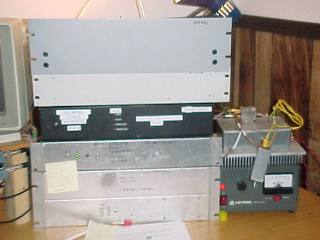

You'll notice that there's no big amps. The IF on 6-432 is a TS-930S, the 903+ is TS-700SP.

The bands are established as follows:

Band IF,Transverter,Amp Antenna Band Numbers
50 TS-930S, LT6S, A1015 (120w) 5el HB Yagi 107 - 39 (NO FM)
144 TS-930S, MMT 144/28, THP HL-85V (100w) K1FO 12 el 191 - 41
222 TS-930S, MMT 222/28, AM-6155 (150w) CC 11el 63 - 28 (NO FM)
432 TS-930S, MMT432-28, Teletec PA (60w) RIW 19el 73 - 28 (NO FM)
903 TS-700SP, DEM xvtr, Motorola PA (60w) DEMI 33l 24 - 6 (NO Preamp)
1296 TS-700SP, DEM xvtr, DEM Amp (60w) DEMI 45l 35 - 14
2304 TS-700SP, K2DH/W2FU homekludge, (5w) 2' Dish 13 - 5
3456 TS-700SP, K2DH Homebrew (.6 w) 2' Dish 9 - 4
5760 TS-700SP, K2DH Homebrew (7w) 2' Dish 9-4
10,368 TS-700SP, SSB Electronics Xvtr (150mW) 2' Dish 1-1
