STATION DESCRIPTION

FN31fh 920' MSL on West Mountain

50MHz
1100 WATTS
RG8 FOAM COAX
C3i C7-50 @ 45'
144MHz
1500 WATTS
1 1/4" ANDREWS HELIAX
4-HOMEBREW K1FO12 EL. ON H
FRAME WITH EL. ROTATION @ 80'
222MHz
550 WATTS
9913 COAX
1-K1FO 16 ELEMENT @ 84'
432MHz
120 WATTS
3/4" 50 OHM HARDLINE
1-HOMEBREW K1FO 22 EL. @ 89'
903MHz
120 WATTS
1/2 75 OHM HARDLINE
1-47 ELEMENT DEM LOOP @ 87'
1296MHz
10 WATTS
1/2" 75 OHM HARDLINE
1-45 ELEMENT DEM LOOP @ 87'
2304MHz
1 WATT
MAST MOUNTED
1-45 ELEMENT DEM LOOP @ 80' EL.
10368MHz 1 WATT MAST MOUNTED  2' PRIME DISH & CHAPARELL FEED

C3i Six meter beam is on a separate mast it is not on the tower.

CLICK ON THE PICTURES TO ENLARGE TO FULL SCREEN

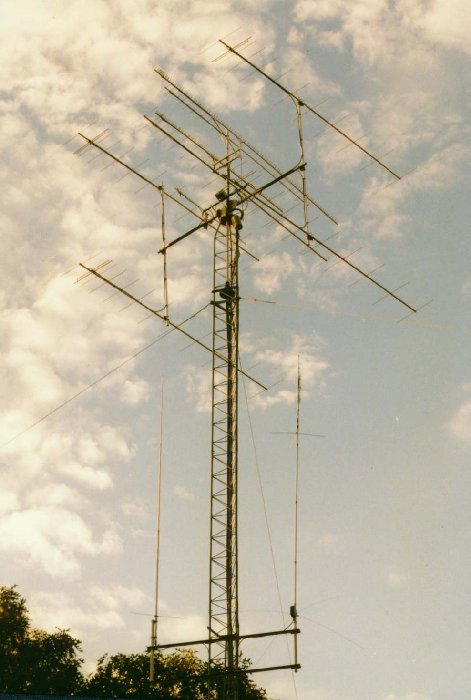

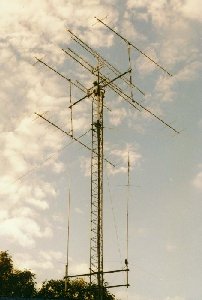

Rohn 45G foldover tower with the bottom of the picture at the hinge point, 40 feet.

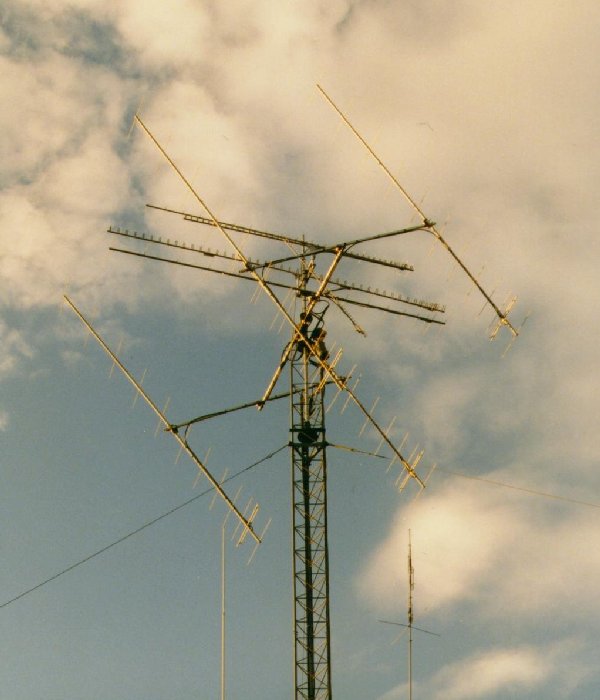

2 meter array elevated for EME operation, notice the 2304 looper on the cross boom.
Notice the box on the power divider with the mast mounted preamp and the

cylinder at the top of the tower with the 2304 transverter inside.

Notice the double lower guy bracket with double guys going away from this view to

permit the foldover cantilever arm to fold through.
