NEC Model for KJ7NLL Helical

Go Home

---

Here's a NEC model for this interesting 2M helical antenna by KJ7NLL (look up on QRZ.com).

NEC source code

Link to 4NEC2, my preferred antenna modeling software.

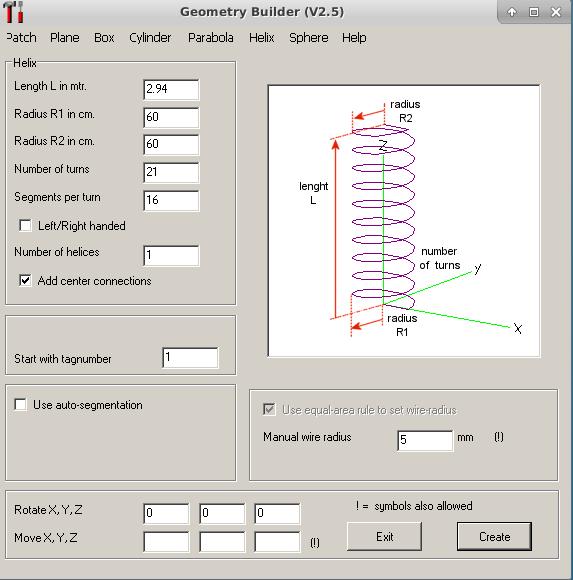

Generate a helix:

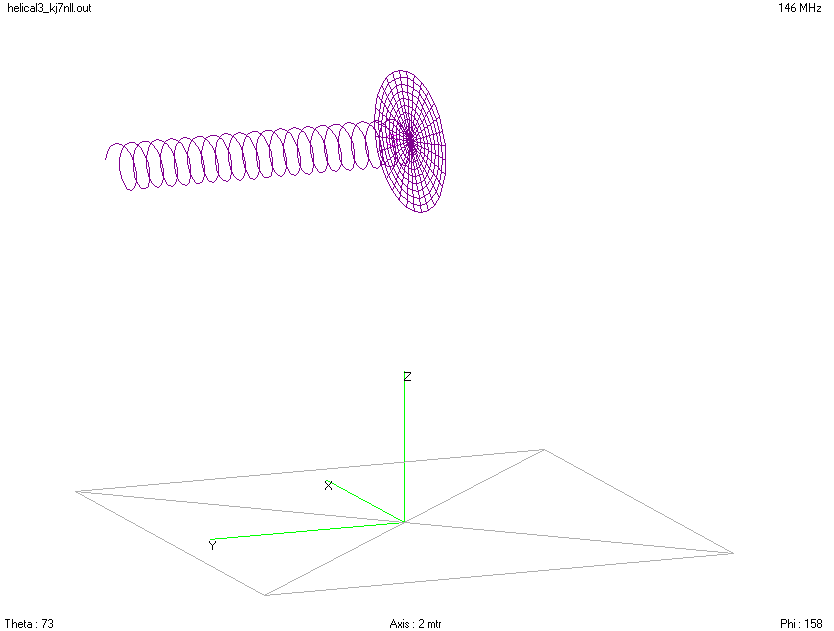

Geometry

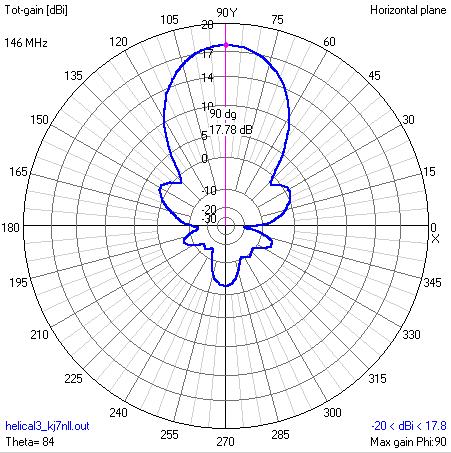

Peak gain is ~18 dBi

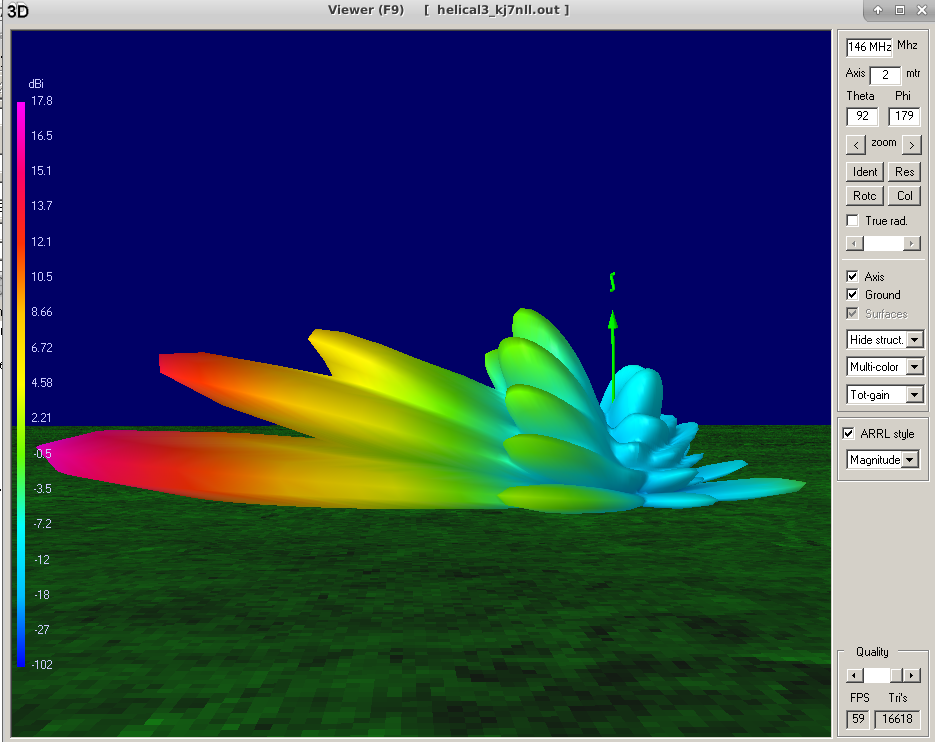

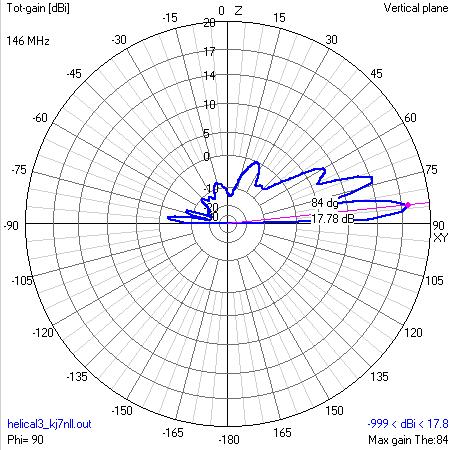

Vertical Plane Gain









Created 29 May 2020
Edited 29 May 2020
