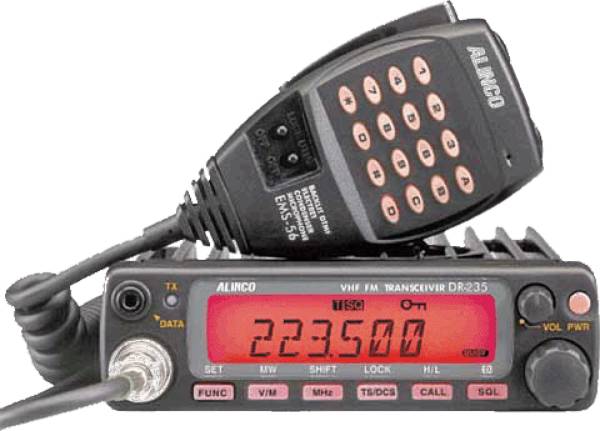

 Alinco DR-235T  The 222 Mcs Continues...... |
|
|
|
|
| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 222-225 MHz
RX: 216-278 MHz |
| Mode: | FM |
| RF Power output: | Hi: 25 W
Mid: 10 W Lo: 5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 600 mA
TX: Max 8 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 142*40*174 mm |
| Weight: | 1.0 Kg |
| Manufactured: | 2001-200x |
| Other: | 101 memories. CTCSS, DCS and
DTMF
1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios) |
| Related documents: | None |
|
|
|
| Mod for the Alinco DR-235-T
Expanded xmit/rcv Turn the radio off. Disconnect the power source. Open the bottom cover by removing the 4 screws located on each corner of the bottom cover surface. Locate a BLUE looped jumper wire that comes out of a slot on the back of the front control unit (it is attached to the back of the front panel on a pad). Remove the jumper and trim the remaining wire properly to prevent a short circuit. Reassemble the bottom cover. Connect the power source and turn on the unit with the FUNC key pressed to reset the microprocessor. Settings will become the factory default. The unit will transmit and receive between approximately 200.000 and 299.999 MHz where the VCO will lock. If the display is flashing, you have lost VCO lock and operation is not possible. Also, if you press the FUNC
key and the SQL key when you turn the power on you will get a handy
digital voltage display. (Example: 13.7v)
|
