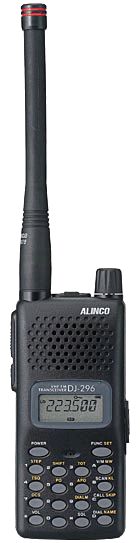

DJ-296 VHF (222 Mcs) FM Handheld Transceiver
STANDARD FEATURES
-
Alphanumeric Display
Easy-to-read format enables you to label channels. Choose frequency,
alpha label or channel number only
-
160 Memory Channels + Call Channel
Store your favorite simplex or repeater frequencies along with alphanumeric
label, offset, CTCSS encode/decode or DCS settings
-
High Power Output
The standard Ni-MH battery pack allows 4.5watts. A power input port
accepts 13.8 VDC and charges the battery, but will not allow overcharge
damage
-
CTCSS, DCS and Tone Bursts
Be prepared for virtually any selective calling situation or gaining
access to repeaters with protected inputs. European Tone Bursts include
1000, 1450, 1750 and 2100 cycle. DTMF encode (ANI) is also available
-
Wide Variety of Operation Status Icons
Large, easy-to-read backlit LCD display indicates relative signal strength,
RF output level, Battery status, Key-lock, DCS, CTCSS, APO, Mosquito repel,
Repeater shift and more!
-
Cable Cloning
Now it's easy to share settings among multiple transceivers. Saves
time and ensures uniform operation.
-
Theft Alarm
Transceiver emits an audible tone when disconnected from an external
power source until proper action is taken to silence the alarm.
-
Experimental Mosquito Repel Feature
Can your radio actually repel mosquitoes? Activate the special tone
and decide for yourself!
SPECIFICATIONS
| General: |
DJ-296T |
| Freq. Coverage: |
TX: 222.000 to 224.995Mcs
RX: 216.000 to 249.995Mcs |
| Mode: |
F3E |
| Channel Step: |
5, 10, 12.5, 15, 20, 25 & 30Kcs |
| Antenna Port: |
BNC 50 ohms |
| Stability: |
+/- 5 ppm |
| Microphone impedance: |
2k ohms |
| Power supply requirement: |
7.0 to 16.0Vdc negative ground |
| Current drain(typical): |
1.2A at 5W
200mA at RX 280mW AF out
50mA at Stand-by
20mA at Battery Save On |
| Operating temperature: |
-10 to +60 degrees C. (14 to 140 F) |
| Dimension: |
With EBP50N battery
2.2" x 4.88" x 1.46" inches
(56 x 124 x 37mm)
Weight: 11.0Oz (310g) with EBP50N |
Transmitter
TX power output: |
4.5W with EBP50N Ni-MH battery
5.0W at 13.8V rated DC input
0.8W Low power position |
| Modulation: |
Variable reactance FM |
| Sprious Emissions: |
Less than ?60dB |
Receiver
Circuit: |
Double superheterodyne |
| Sensitivity: |
Less than -12dbu (0.25uV) |
| Selectivity: |
More than -6dB/12kcs or more
-60dB/26kcs or less |
| AF output: |
280mW typical 8 ohm load |
| Accessories: |
Perfectly compatible to
DJ195/196/496/596 series. |
|
