I have used the following equipments
and antennas since I started HAM RADIO
Hand made SSB Generator
7360 Balanced modulator with mechanical filter.
Designed by JA2ADH
RX TRIO 9R-59 (Present KENWOOD)
1RF,2IF Single super heterodyne
From 1965 to 1967
YAESU FRDX-400 FLDX-400
Final tube "6JS6A"
Hand made Operation desk. Including
2m FM Radio,6m FM Radio & Ele-key
From 1967 to 1975

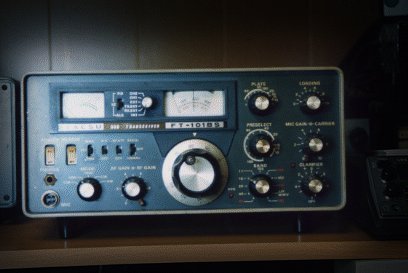

YAESU FT-101B Transceiver
Solid-state without driver & Final tubes (12BY7A,6JS6A)
From 1975 to 1985

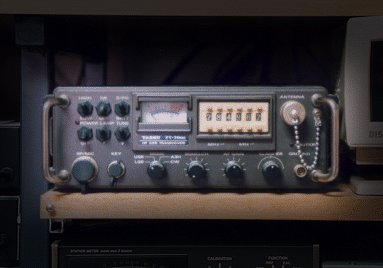

YAESU FT-70GC Transceiver
Military use for Asian army
From 1985 to 1995

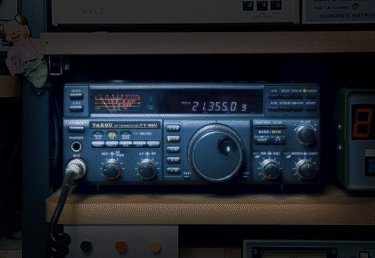

YAESU FT-850 Transceiver
From 1996 -1998
YAESU FT-1000MP Transceiver
Sub equipment
From 1997 -

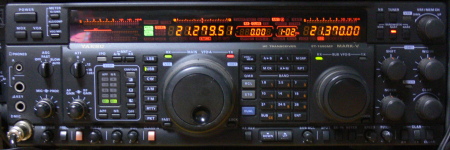

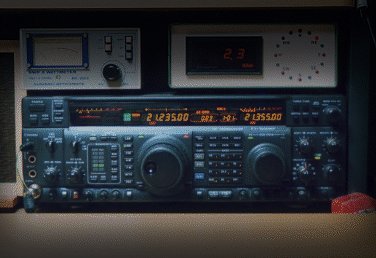

MARK-V YAESU FT-1000MP Transceiver
Main equipment
From 2001 -
Standard C-50
144 MHz, 430 MHz, 1.2GHz FM
Transceiver
From 1987 -2003
YAESU FT-847
HF to 430 MHz, All Mode
Transceiver
From 2004 -

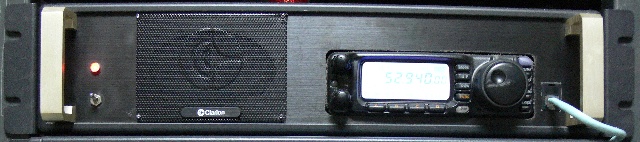

YAESU FT-100D
HF to 430 MHz, All Mode
Transceiver
From 2003-

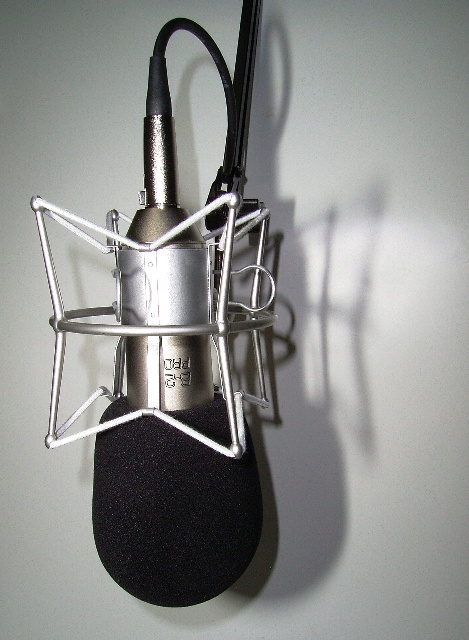

BEHRINGER B-2 PRO
STUDIO CONDENSER
MICROPHONE
From 2006-
BEHRINGER VX2496
ULTRAVOICE MICROPHONE
PREAMPLIFIERS
From 2006-
BEHRINGER MIXER
EURORACK UB802 & KORG
DIGITAL RECORDER D4
From 2006-

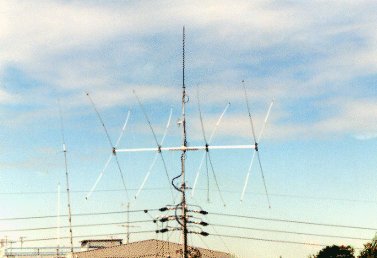

Four elements 3bands CQ antenna .
24 meters high above the ground.
From 1997 -

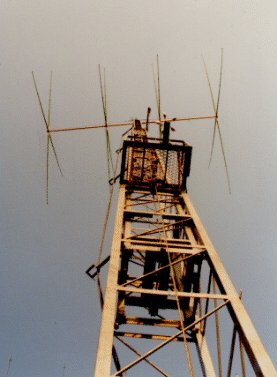

Home brew four elements CQ antenna.
For 15m band
which was 15meters high above the ground.
From 1996 to 1997

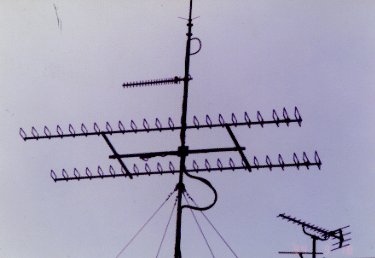

Rectangular loop antenna 23ele x 2
Home brew for 430MHz
which was 15meters high above the ground.
From 1992 to 1995
23meters hight crank up tower.
Top of the mast is 26 meters high above the ground.
Made by Aichi tower
From 1997 -

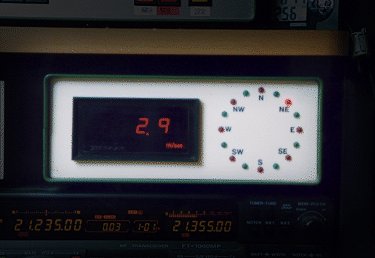

Home made Anemometer
Wind speed sensor used optical rotary encoder.
Wind direction is indicated by small magnet
and 16 pieces of lead switch.

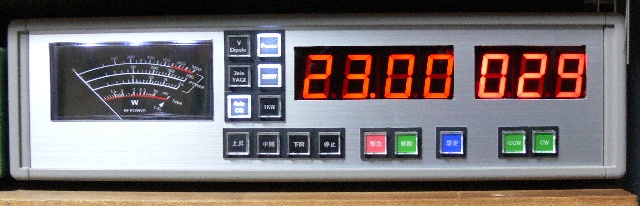

Auto-matic antenna turn & tower hight controler.
with 3sensor VSWR meter
When the wind speed is over the limitation.
The antenna turn to safty position and
then tower is cranked down.
