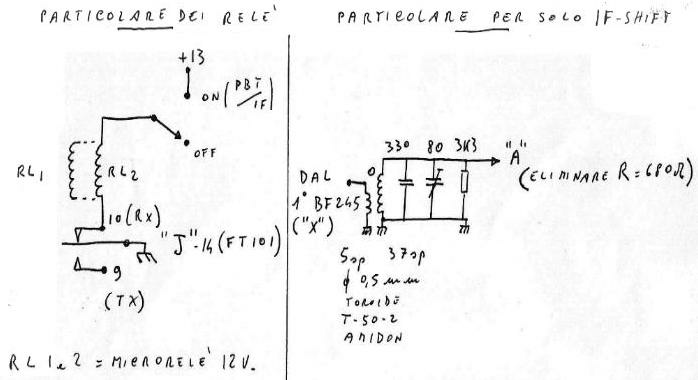

This board have to be located instead of
PB1344 fix ch 1 and 2,(over the VFO
box).All wires going to the S4 switch must be
insulated.The BF245c is located near the
noise -blanker socket.A couple of micro
relais will bypass the if-shift/PBT when not
in use(pin 1 NB in and pin 15 NB out ).When
the TX is operated the whole circuit will be
bypassed . | La piastra va inserita al posto della PB1344
ch fix 1 e 2 posta sullo scatolotto del VFO
intubettando i fili che vanno al commutatore
S-4 per isolarli.Il BF245c va allocato vicino al
noise-blanker.I due microrele pin 1 (NB in ) e
pin 15 (NB out ) bypassano il nostro circuito
quando non in uso.In Tx il circuito è
bypassato automaticamente. |
|

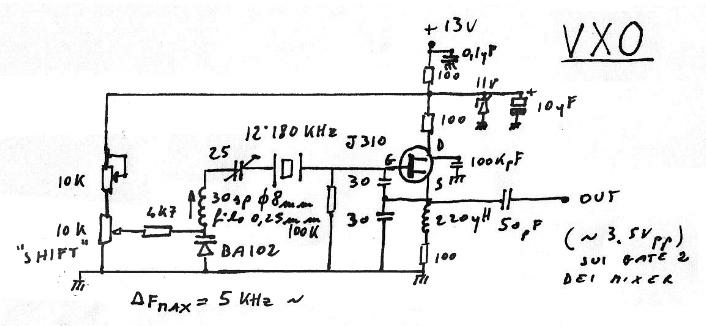

PBT : 3180 khz 8 pole filter (ssb).IF shift : 9
mhz 8 pole filter (ssb) .Note: using good xtal
filters,overall results will outperform many
modern transceivers | PBT : 3180 khz 8 pole filter (ssb).IF shift : 9
mhz 8 pole filter (ssb) .Nota : usando buoni
filtri a quarzo,(no ceramici) il risultato sara'
superiore ad analoghi circuiti presenti su
ricetrans moderni. |
|
| |
|
| |
|
IF-shift only : remove r 680ohm | |
| FT 101 YAESU mods |
