| 2 X 2 |
| dual-band (extended ) hex-ant (20+15m)
gain :5/6 dBd ; f/b :32dB (deep null test
site) good dx performer:up to 2 s -points
better than commercial tribander on
antipodal and long-path contacts | antenna ad "X" di tipo esteso per 20 e
15m,guadagno 5/6dBd , f/b 32 dB (nullo)
fino a due punti di s-meter meglio di una
commerciale tribanda su collegamenti via
lunga o antipodali. |
 |

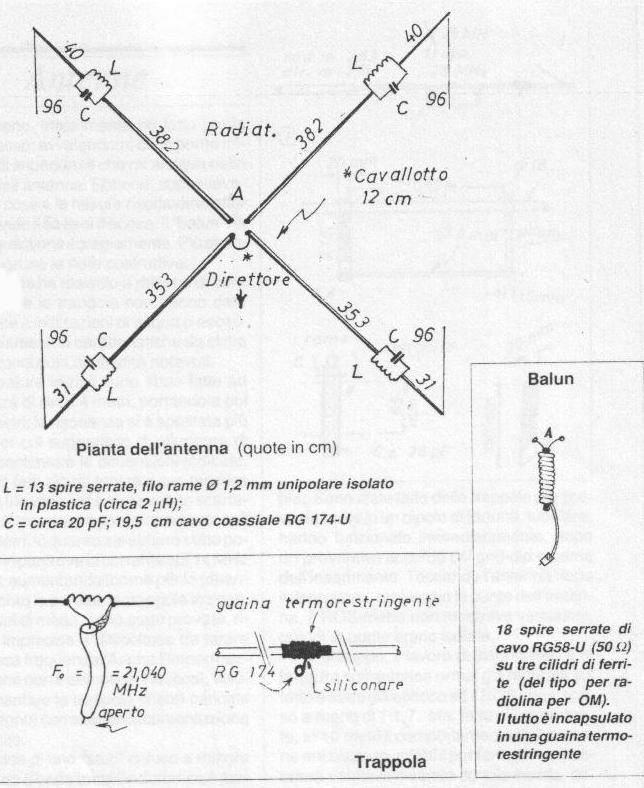

| L = 13 turns;wire diam= 1,2mm (2uH) | balun :18 turns RG58(50ohm)on 3 ferrite
rods |

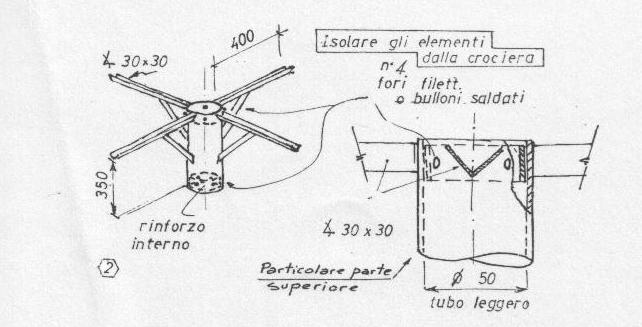

| C = 20pF made by RG58 (about 19,5cm) | tips: insulate the antenna-arms from cross |
 |
 | antennas |
