Microwave works from Francesco Carraro. The big list. Consider to free download layout for PCB etching where available.

• don't mind for my progressive archiving code!
• layout description in italian almost everywhere !!
• consider free to contact Francesco Carraro for any suggestion: mail

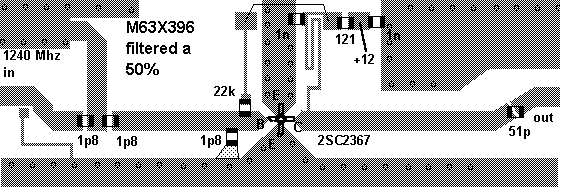

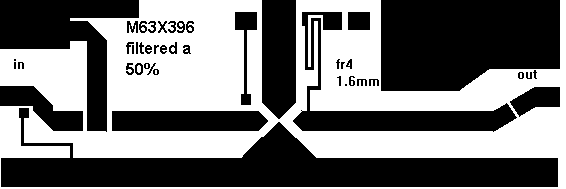

1240 MHz bipolar preamplifier on Epoxy	M67X396
Band: 1000-1400 Devices: 2SC2367 > BFQ66 Osc. freq: Gain: 13dB Nf: >2 Pin: Pout: (200mW saturated)  download master | download layout

1240 MHz GaAsfet preamplifier on Epoxy	K799
Band: 1200-1300 (input filter) Devices:MGF4910 Osc. freq: Gain: 18dB Nf: 1 ca Pin: Pout: (20mW saturated)  download master | download layout

2450 MHz bipolar downconverter	---
Band: 2000-2500 Devices: 3X ina10386  1X bfq73 1X ma208 Osc. freq: 3600 Gain: 40dB Nf: >5 Pin:  Pout: (10 mW saturated)

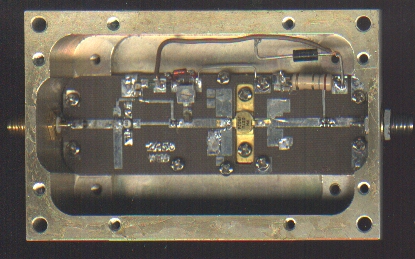

2450 MHz bipolar Pow amplifier	M67X110
Band: 2200-2500 Devices: 1st. at42035 - 2nd. lte23010q Osc. freq: Gain: 19dB Nf:  Pin: 10 mW ca Pout: (900 mW saturated)

5700 MHz "battle" ATV converter on Epoxy	M67X497
Band: 5600-5800 Devices: 3X atf35076 1X bfq73 Osc. freq: LO 4500 MHz, stability 1MHz Gain: 30dB Nf: >2 Pin: Pout: (100mW saturated)

5700 MHz micro ATV converter on Epoxy	M67K999
Band: 5600-5800 Devices:  3X mgf4910, 1X ina10386, 2X ma208 Osc. freq: 4500 MHz Gain: >30dB Nf: 1 ca Pin: Pout: (6mW saturated)  download master | download layout

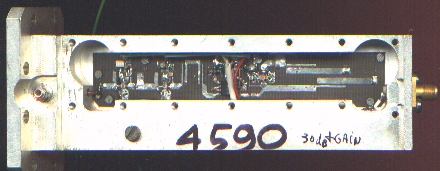

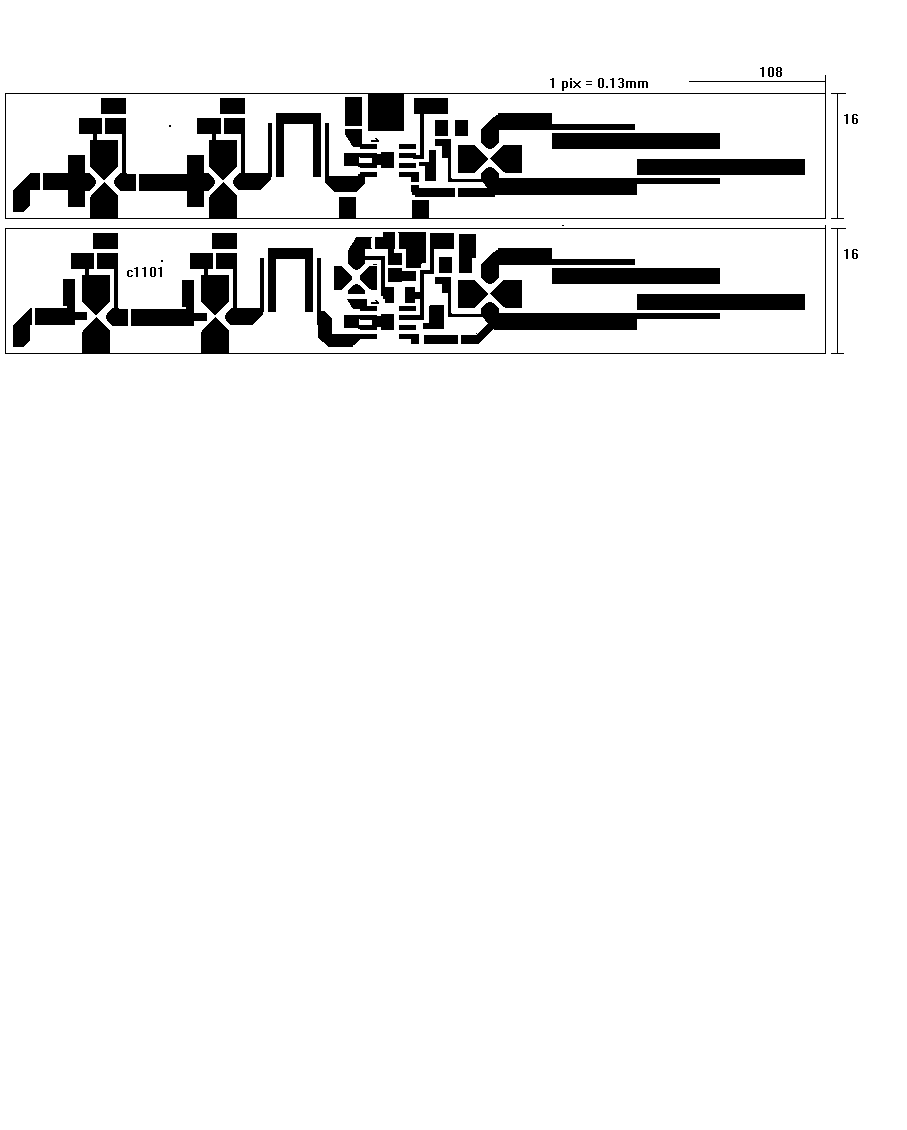

5700 MHz micro ATV slim converter	c1101
Band: 5600-5800 Devices:  3X mgf4910, 1X iam810 Osc. freq: 4590 MHz Gain: >30dB Nf: 2 (depending on adjust) Pin: Pout: (1mW saturated)  download master | download complete package

5700 MHz pow amp  for ATV,SSB	C1098
Band: 5600-5800 Devices: some custom Osc. freq:  Gain: 13dB Nf:  Pin: Pout: (750mW saturated)

5750 MHz  free oscillator for ATV tx on Epoxy	M67K40
Band: 5750 tunable  Devices: 2X mgf4910 1X bas76 Osc. freq: 5750 MHz +- 1 MHz modulation via reactance diode Gain:  Nf:  Pin: Pout: (20mW saturated)  download master | download layout	NA

10.45 GHz pow amplifier	M67X198
Band: 10.4-10.5 Devices: mgf1801, fsx052mb Osc. freq: Gain: 16dB Nf:  Pin: Pout: (350mW saturated)

10.45 GHz DRO	M67X698
Band: 10478 Devices: 1X atf35076 Osc. freq: 10478 Gain:  Nf: Pin: Pout: (7mW saturated)

10 GHz VFO	---
Band: 10-11 GHz Devices: atf35076 GaAs tuning varactor Osc. freq: Gain:  Nf: > Pin: Pout: (2mW saturated)  download master | download layout

8 to 24 GHz tripler for ATV	---
Band: 23.5-24.1 GHz Devices: 2X atf35076 Osc. freq:  Gain: -10dB Nf:  Pin: Pout: (0.200mW typ)

1240 MHz bipolar preamplifier on Epoxy	M67X396
Band: 1000-1400 Devices: Osc. freq: Gain: 13dB Nf: >2 Pin: Pout: (200mW saturated)  download master | download layout
