IZ3DVW/B
144,433.0  MHz

callsign

  IZ3DVW/B
QRG    144,433.0 MHz
mode    A1
antenna    Double quad
QTF    Omnidirectional
polarization  Horizontal
power    10 W
QTH    Monselice (PD)
a.s.l.   25 mt
WWL    JN55VF
status    24 h

Hear the signal:    20 Km distance

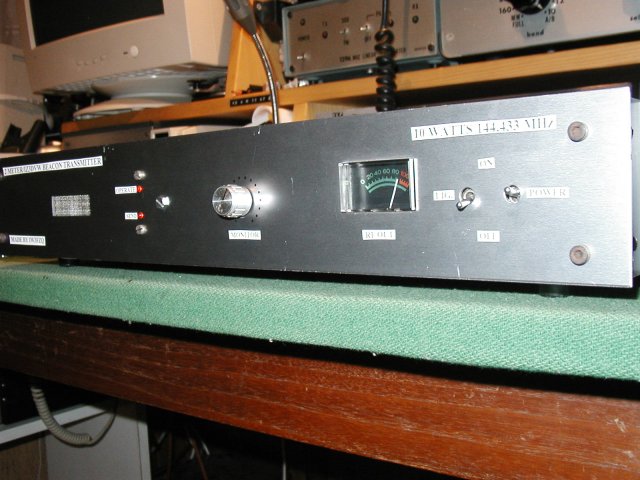

   1) 2m beacon

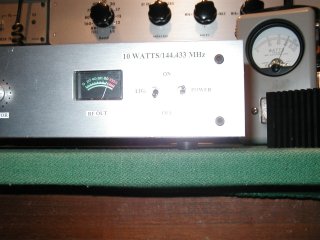

2) Other view of the beacon

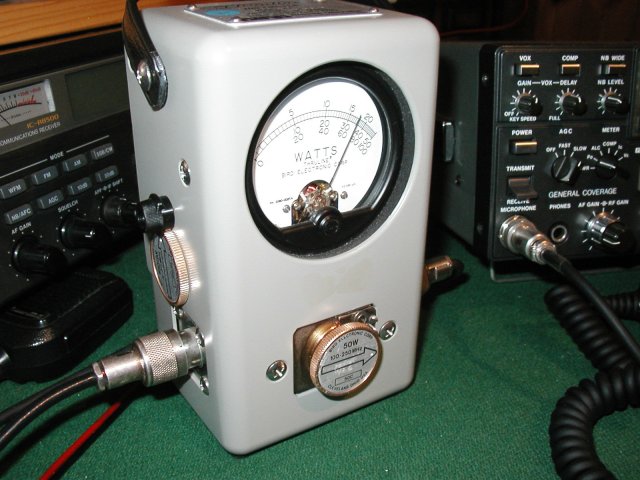

3) Adjusting meter




4) First test at maximum power




     5) IW3FZQ testing antenna before final
installation




 6) The double quad antenna (3 dBd gain)





5) All the reports will be appreciated via
bureau, e-mail [email protected] or direct:
 Massimo Munaro, Via Chiesetta 7
35043 Monselice  (Italy)
