The DXBOX is the custom designed container for the DXKEY, an Interactive chip, programmed in CW to enable the Radio Amateur to get the best performance when operating in his favourite mode such as QRP, EME, Contests, DXing or pile-up. During a Contest, the DXKEY can send your call he answer, inserting, wanting, a automatic progressive (from 000 to 9999); if then OM is found into a Pile-Up where hundreds of calling-station, the DXKEY helps the operation of call, "shooting" in precise and continuous mode the proper CALL with the touch of a Paddle. This precision is gotten using the Paddle Telegraphic Key together with a Functions KEY called BT1/BT2.

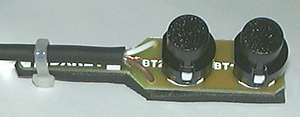

The unique BT1/BT2 keypad is included with the completed DXBOX unit Remote keypad is mounted on a cable 70 cm from the DXBOX and is designed to be held in the hand

External Connection Layout of the DXBOX

DXBOX DIMENSION  = 10cm (Width) x 9cm (Depth) x 3cm (Height)

Dimension with speed controller knob and Switch = 10 cm x 10 cm x 3 cm
