parabola di 1,2 metri
1,2 meter mesh dish
 (March 2013)

photo gallery

   Cliccare sulla foto per vedere la massima grandezza con la miglior qualitą
   Click on a picture to view it full size with full quality

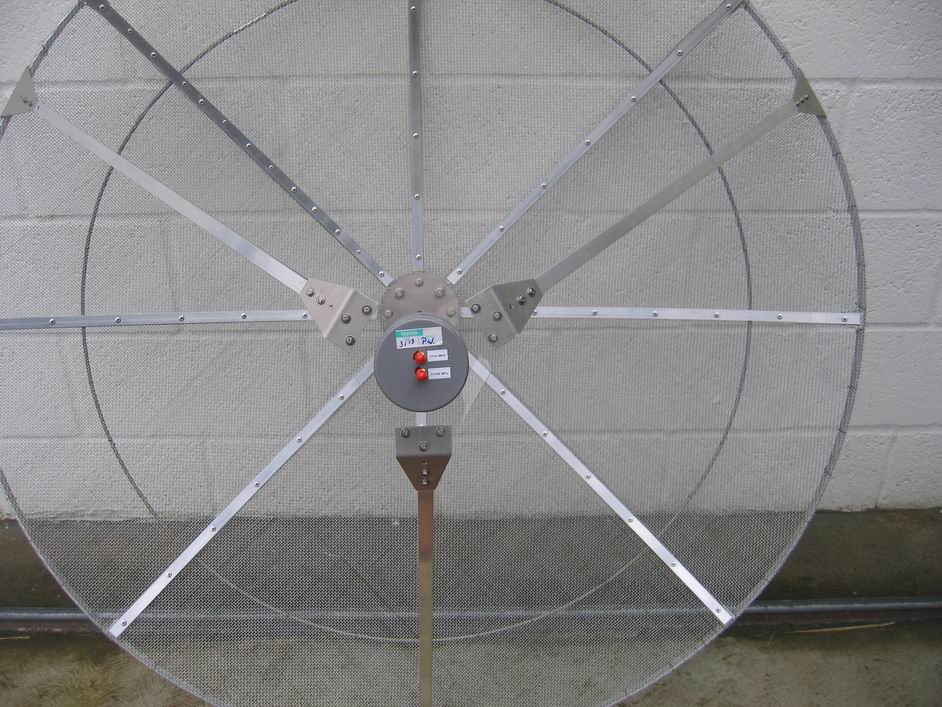

The dish was purchased in kits of RF HAMDESIGN with dual feed for 3 and 6 cm . The mesh size is 3x3 mm braided .

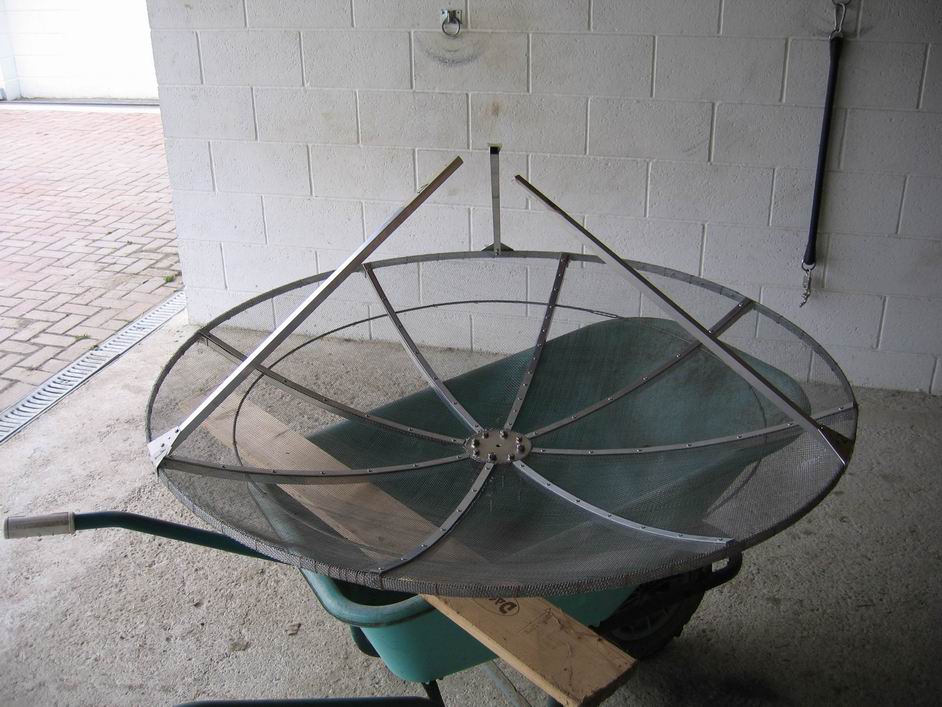

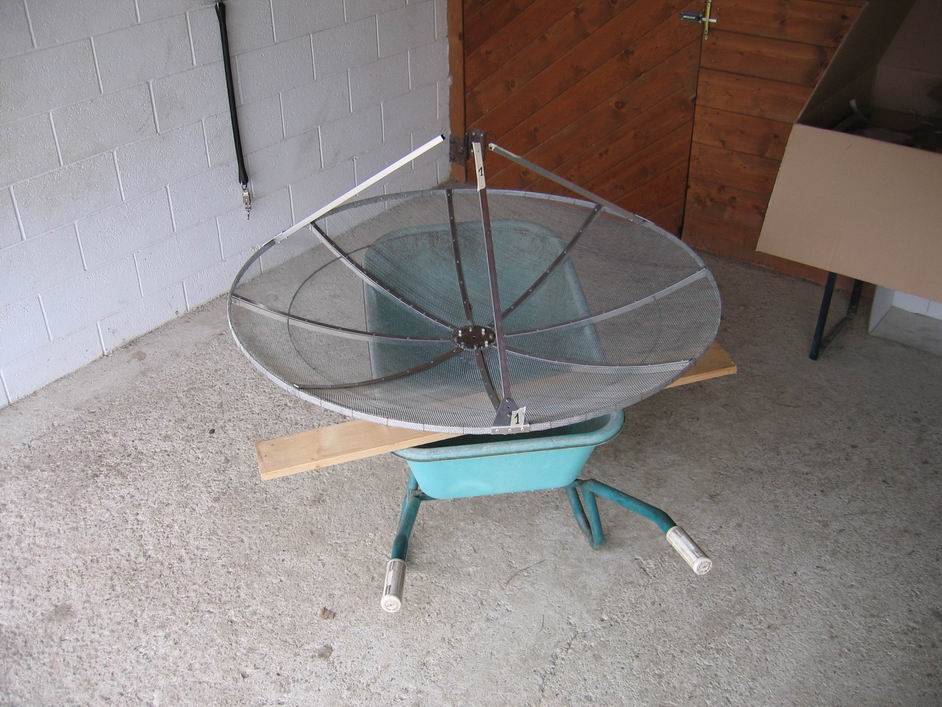

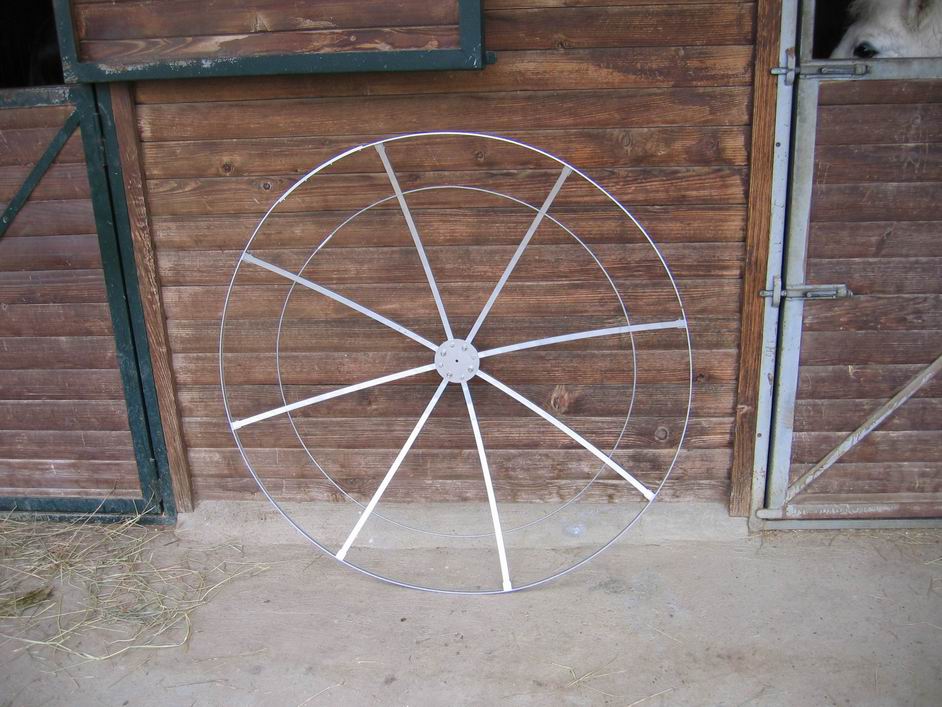

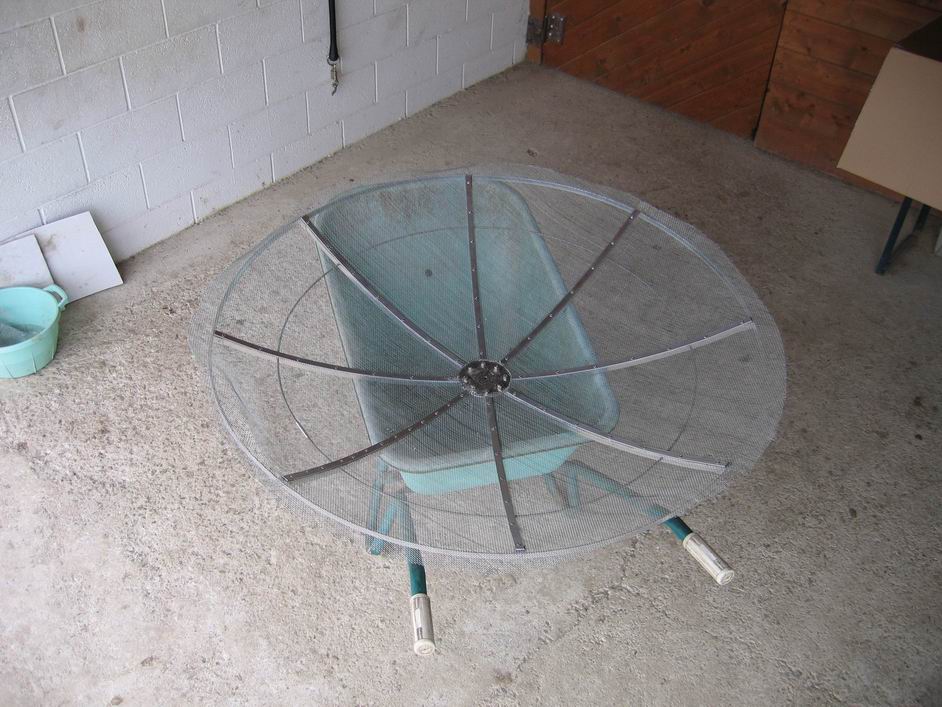

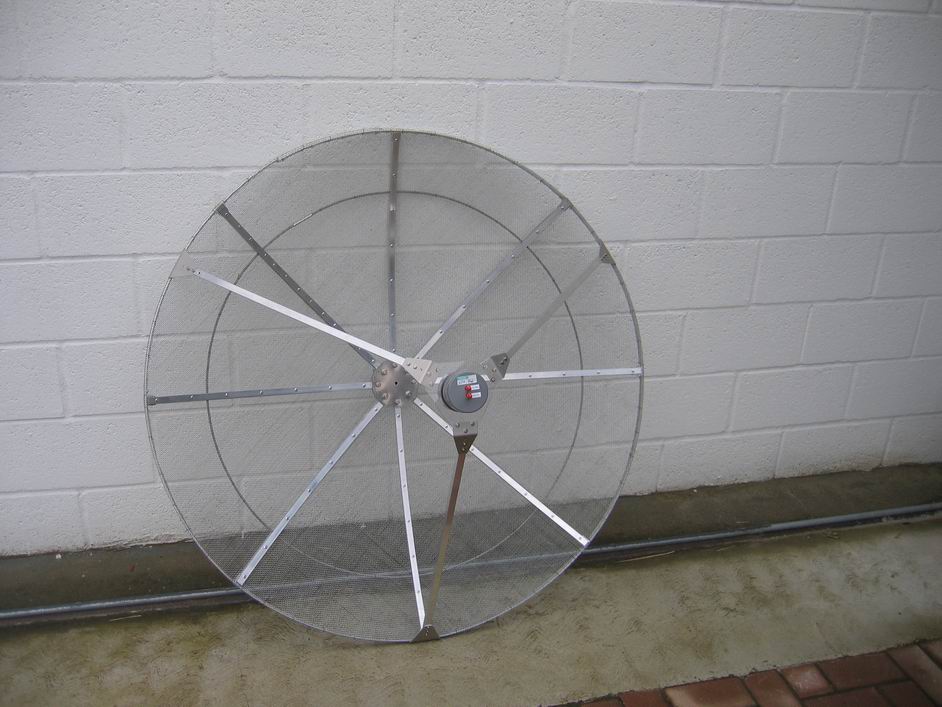

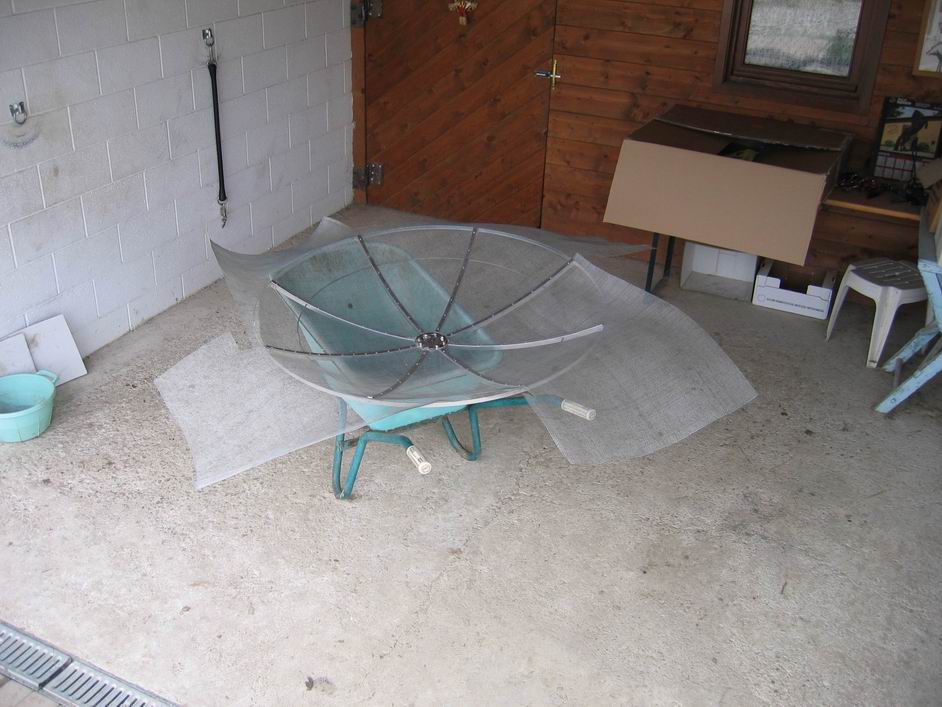

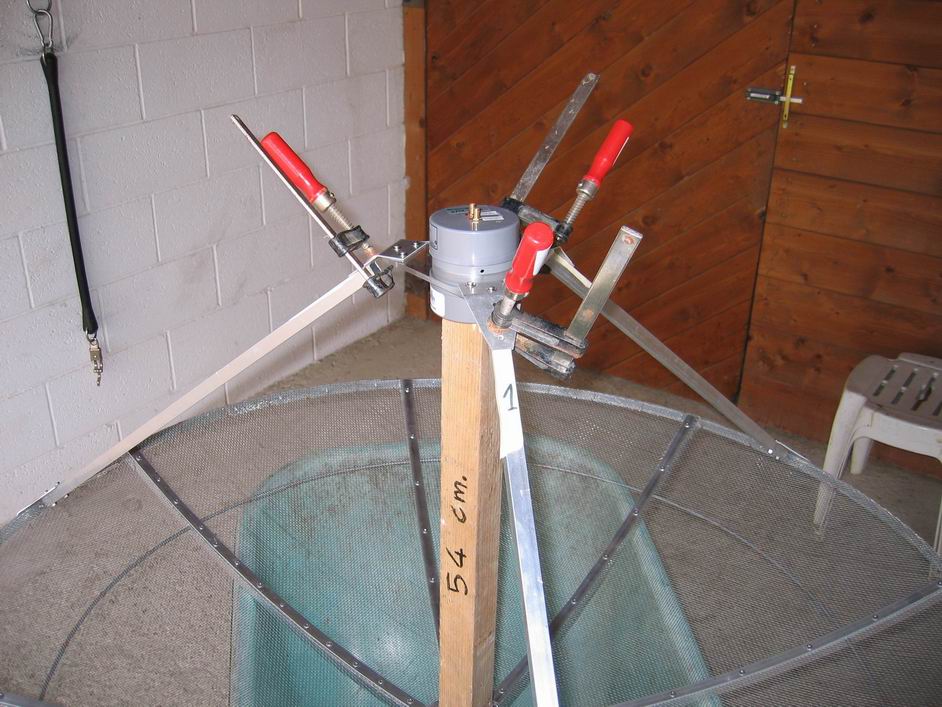

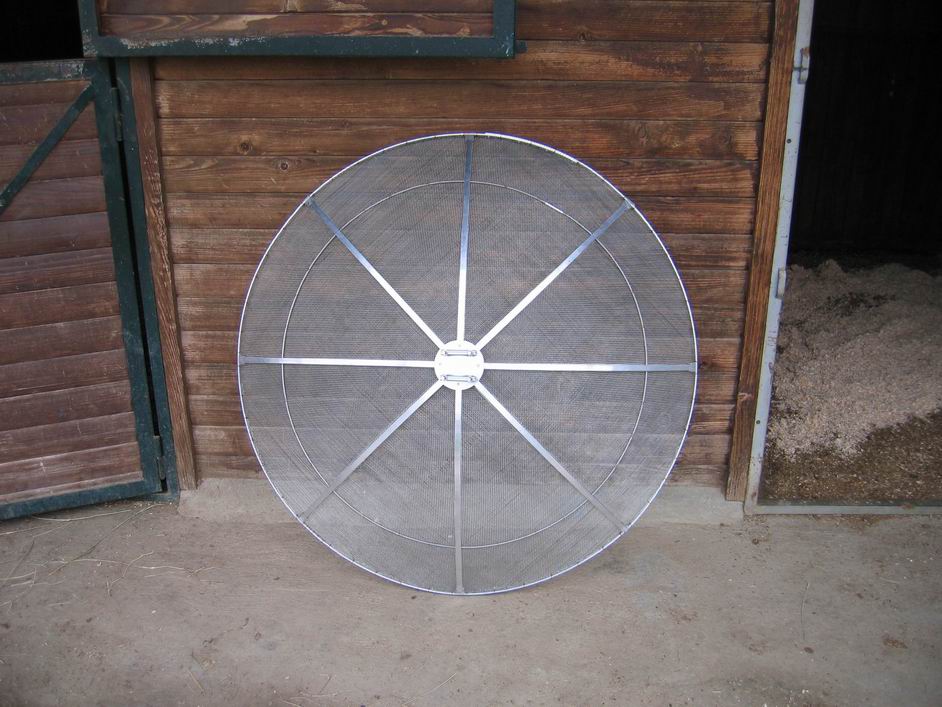

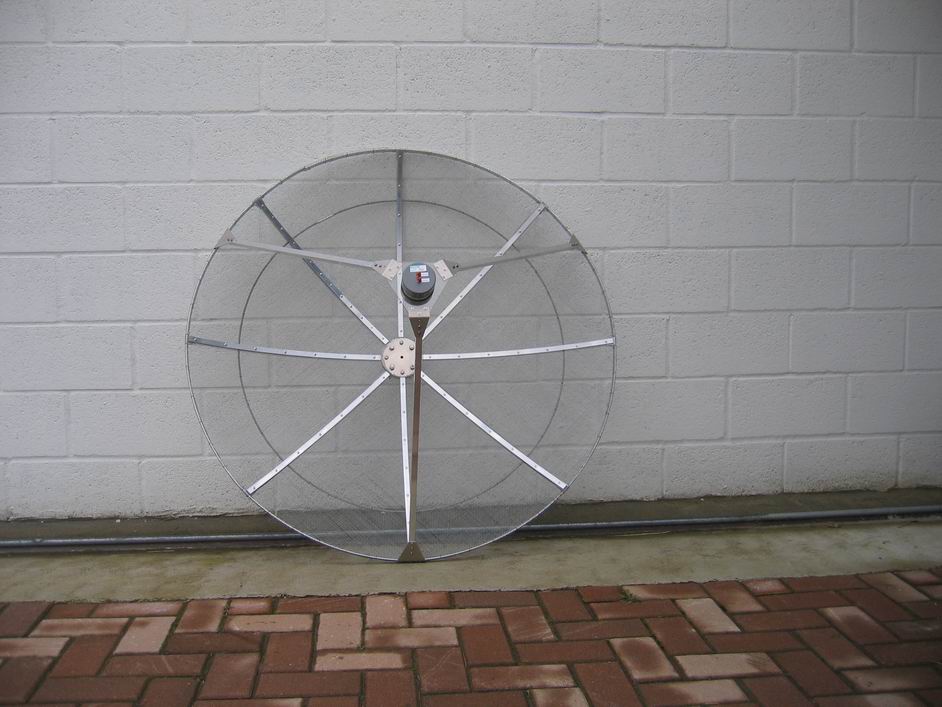

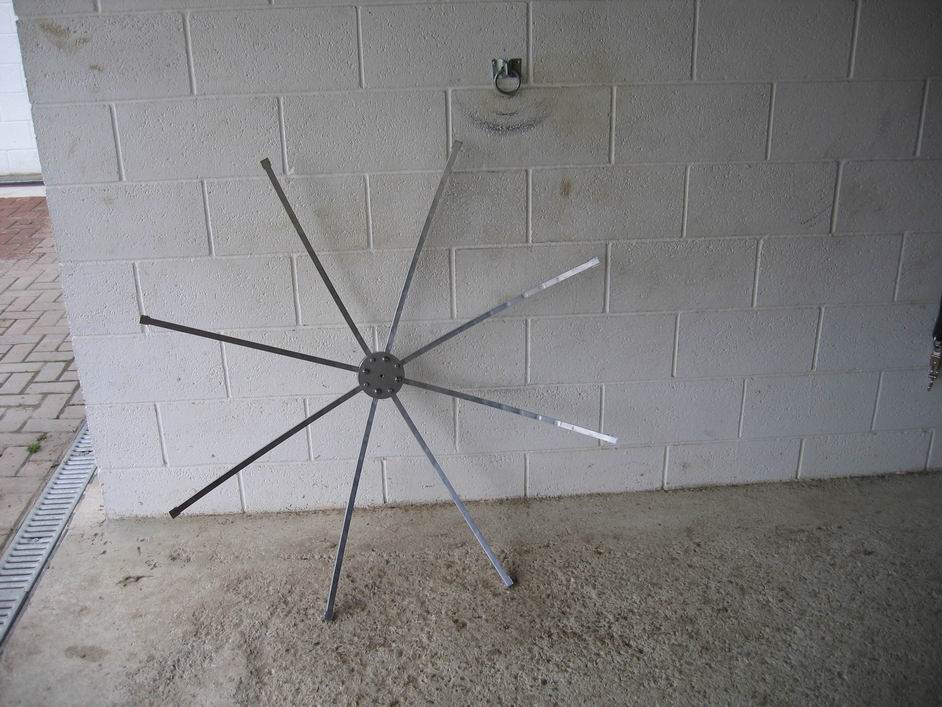

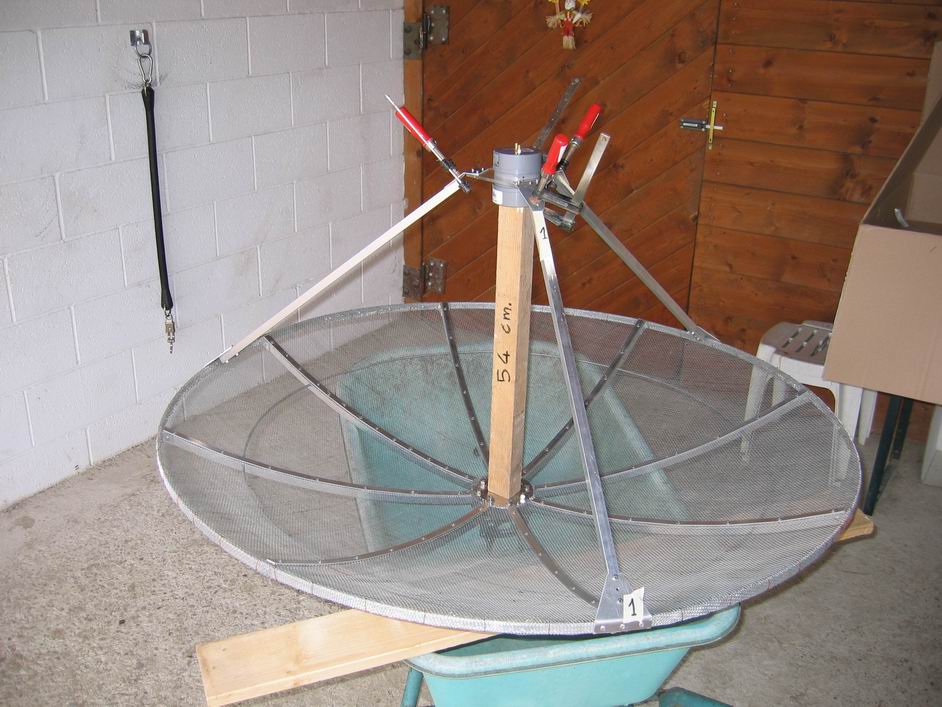

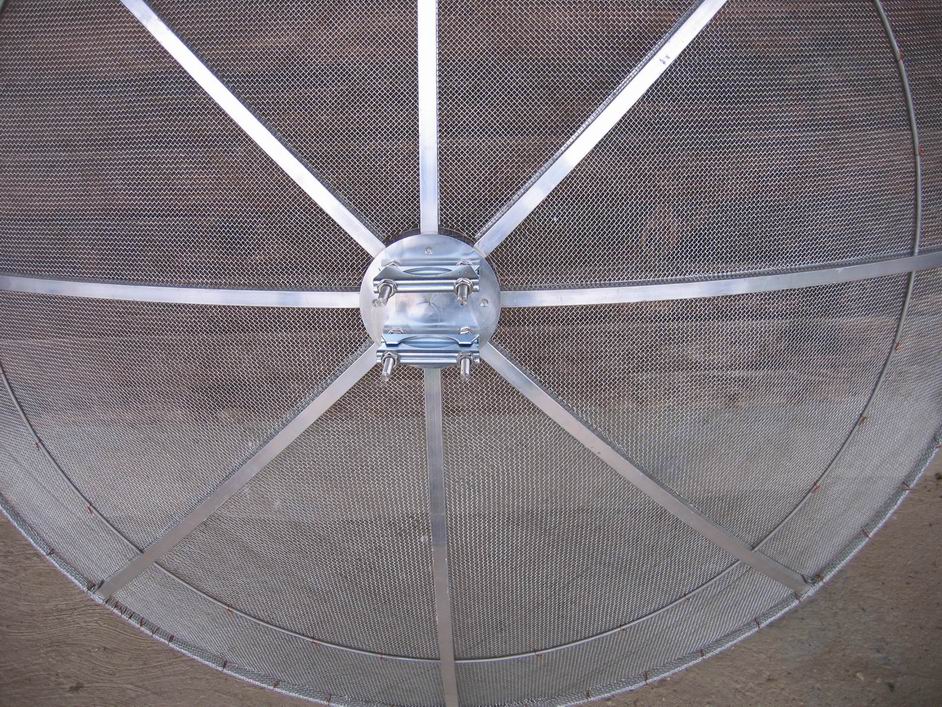

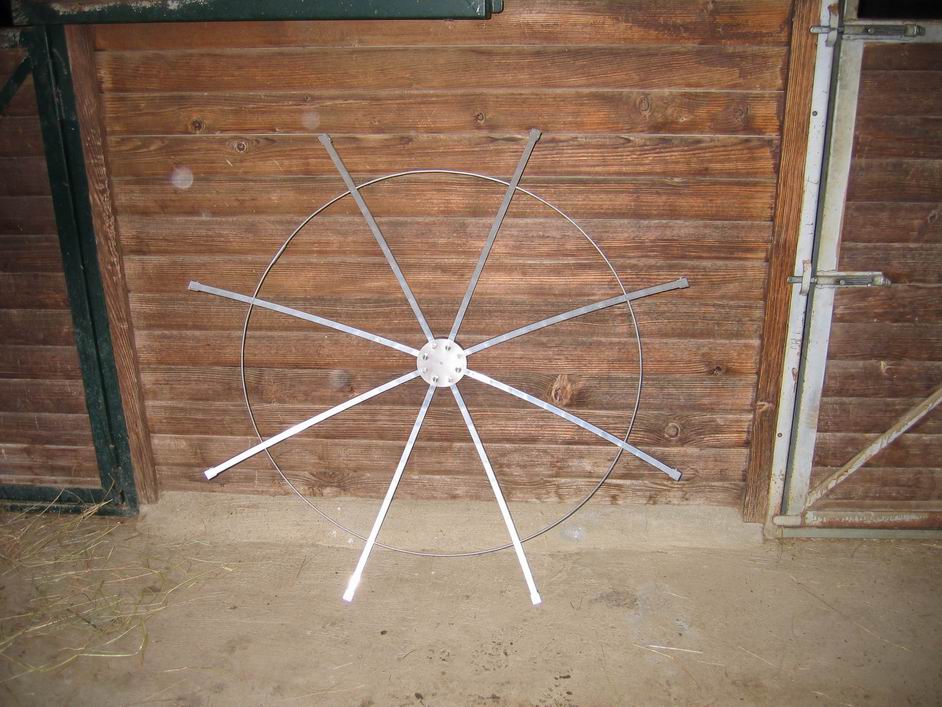

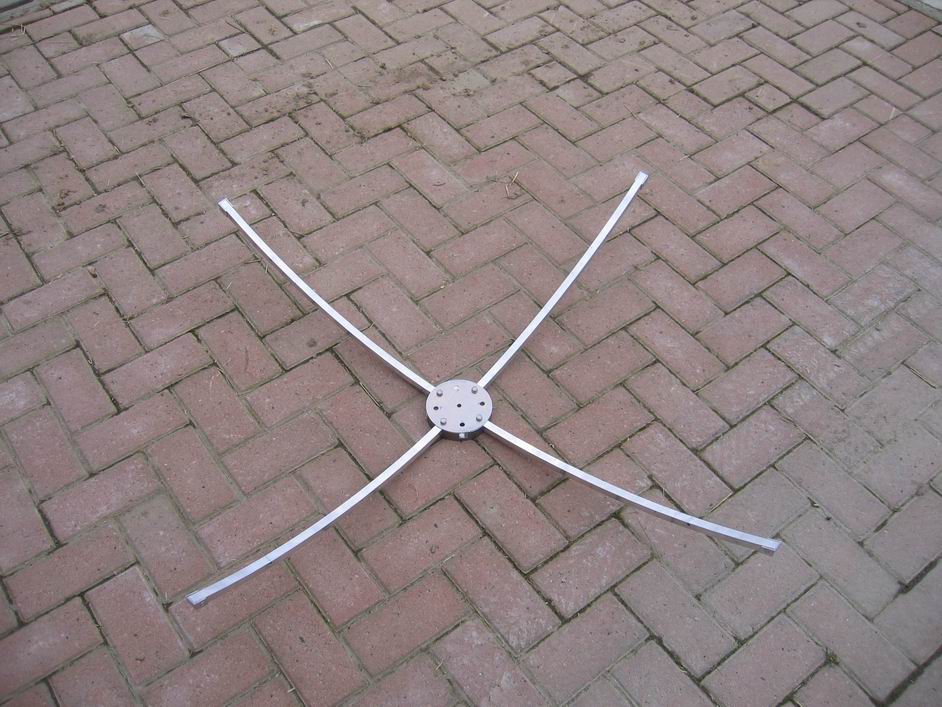

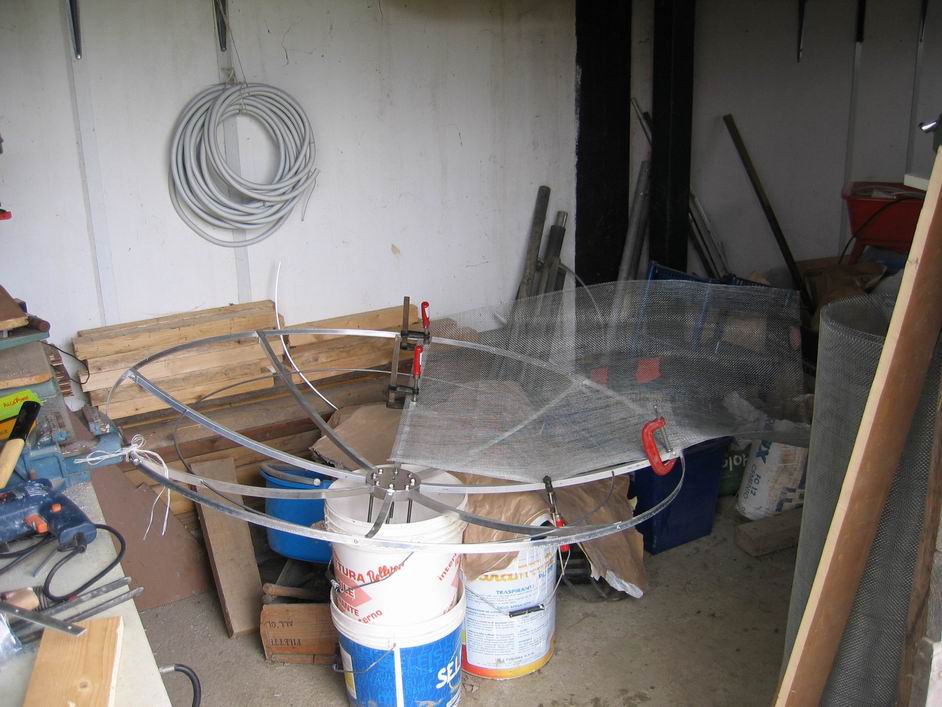

   assembly sequence of the dish

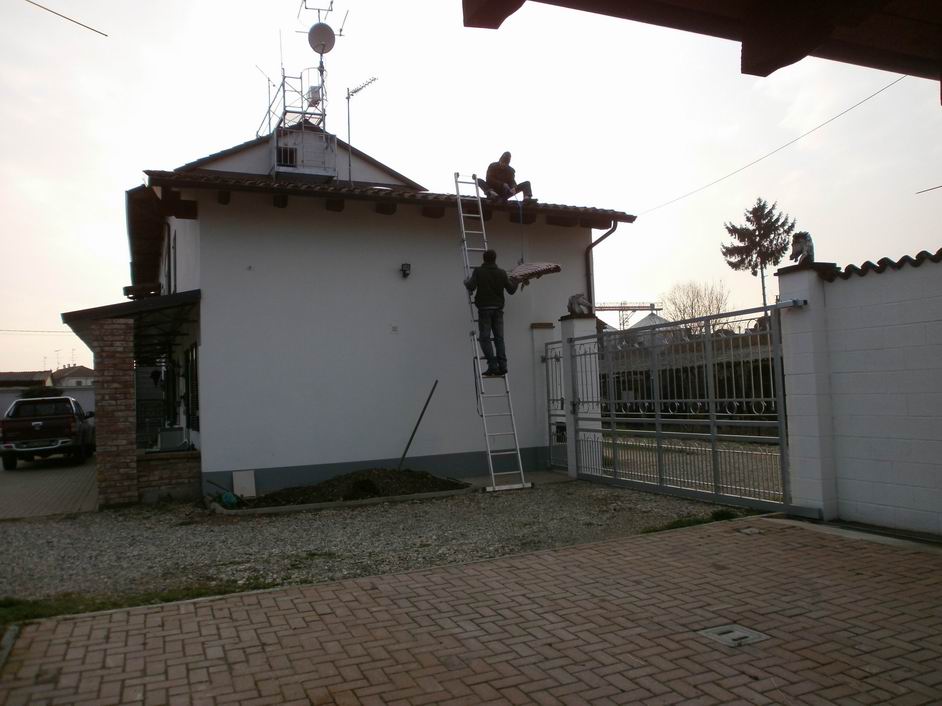

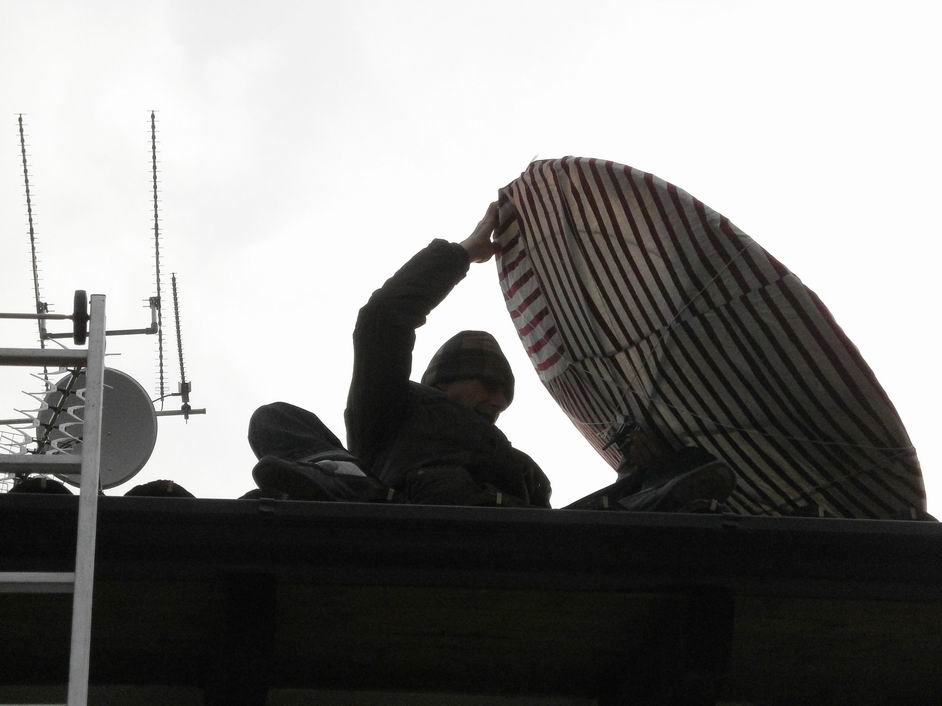

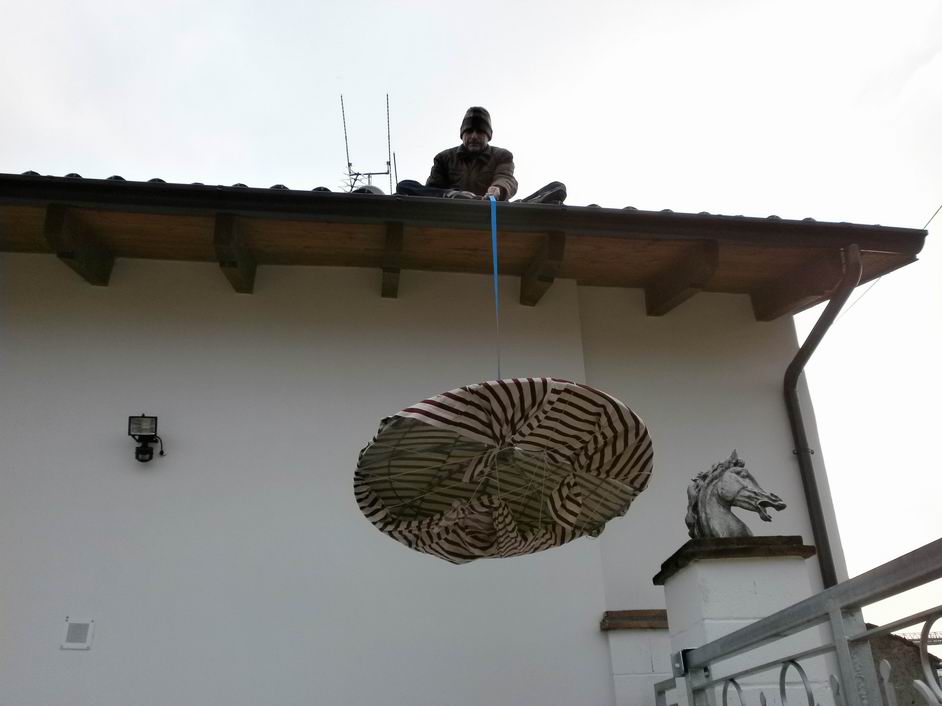

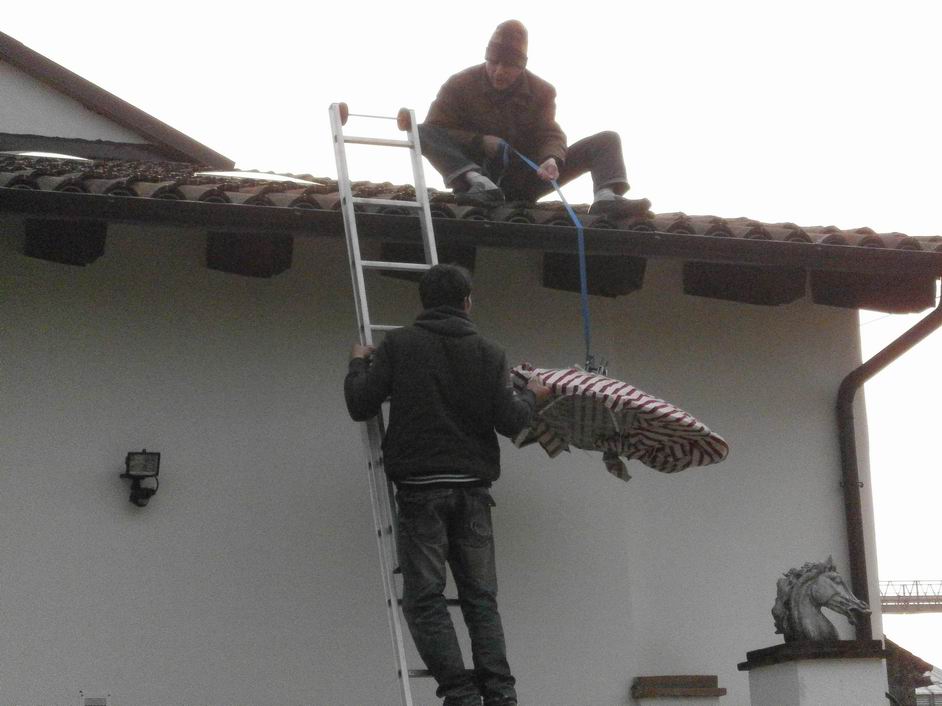

   loading the dish on the roof

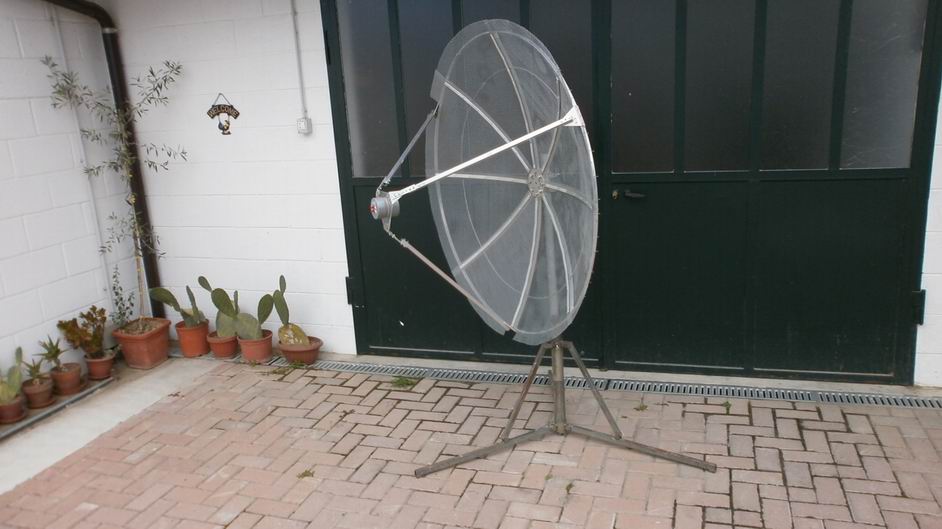

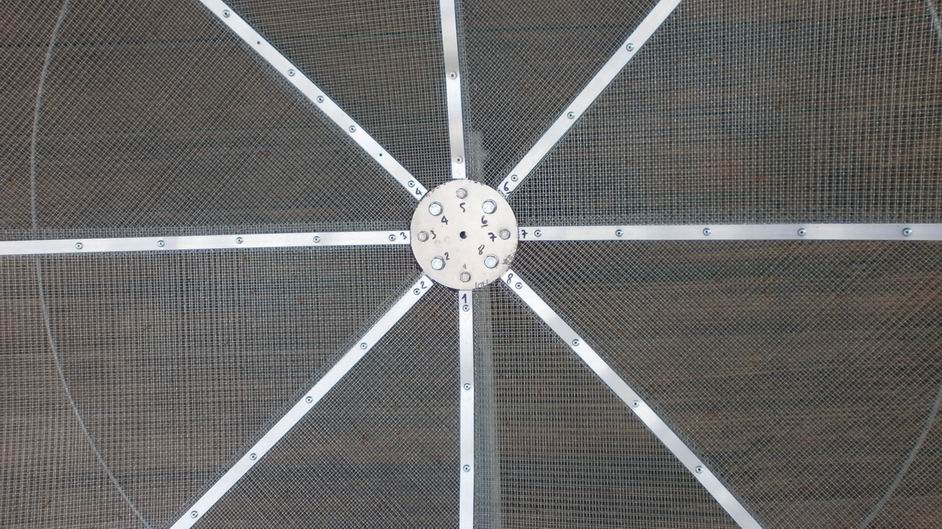

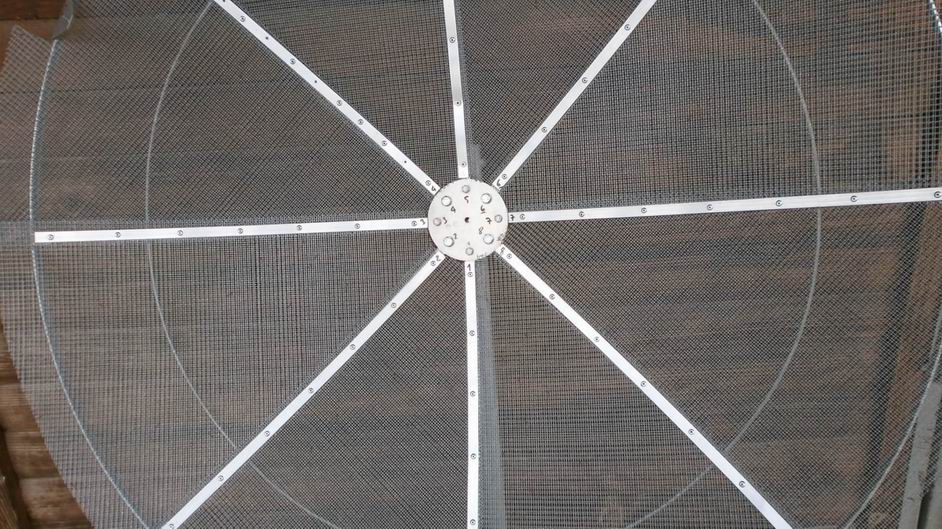

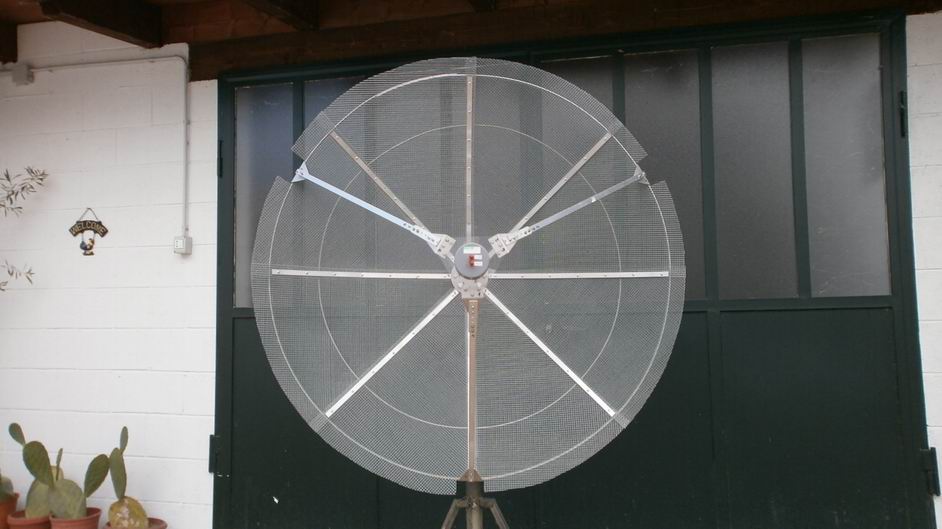

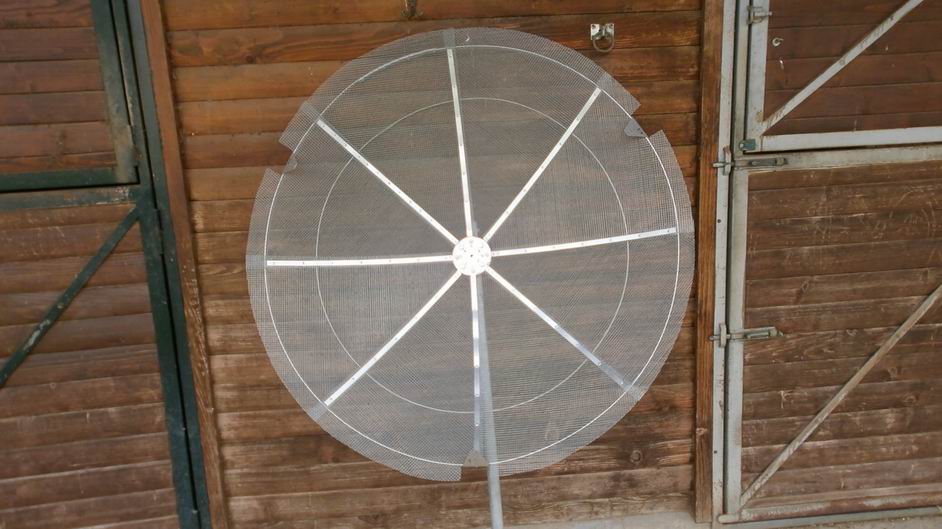

Replacing the original mesh braided 3x3 mm with galvanized welded mesh 6x6 mm .

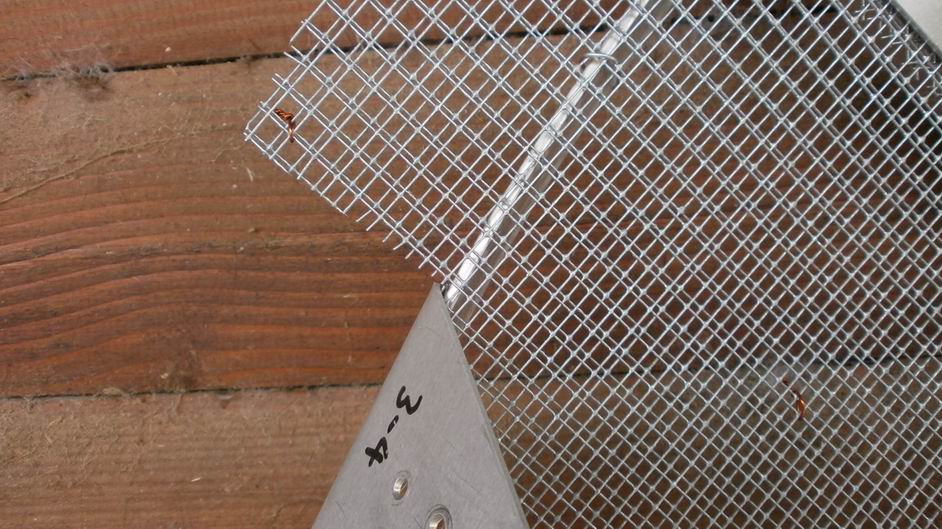

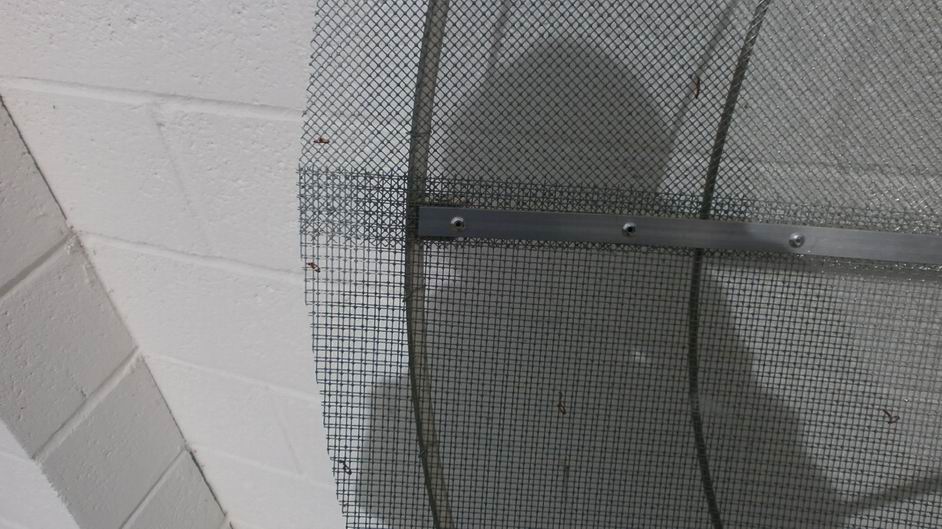

To obtain a finer mesh I superimposed two networks from 6x6 staggered in order to create a smallest mesh suitable for the frequency of 3 cm
