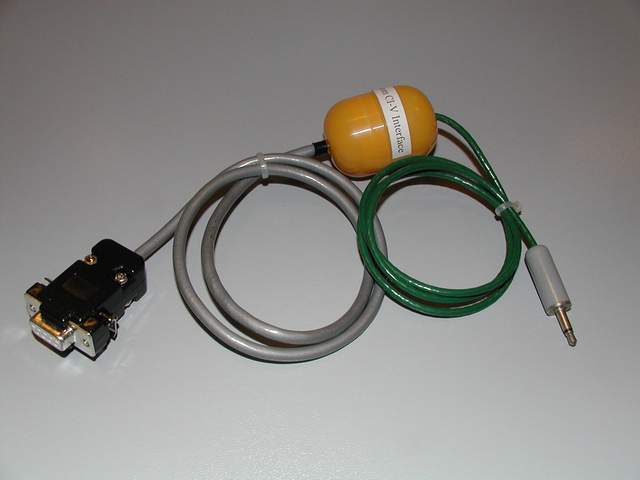

CI-V interface by G3VGR
Icom
appears to delight in charging outrageous prices for all transceiver
accessories, so many Hams improvise instead. A few circuits have been published
for CI-V interfaces, most of which use the MAX232 IC. Here is a very

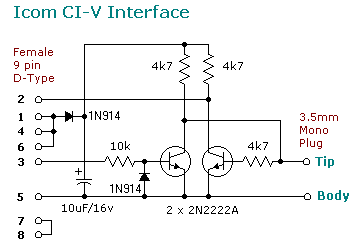

simple CI-V interface, originally described by OK2WY
I've made small changes to the modem control signals connections. Although the
circuit doesn't conform exactly to the RS-232 specification, it does work well

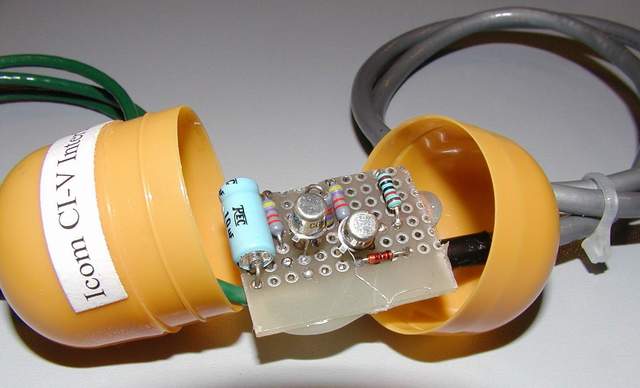

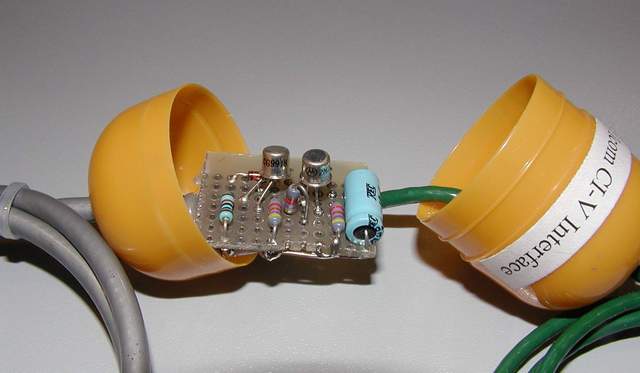

and has the advantage of being easily constructed inside a 9 pin D-type shell.
Please note that the resistor value 4K7 means 4700 ohms. The transistor
types are not critical, I just happen to have plenty of 2N2222As.
I've used it
on various PC's and a Dell Latitude Notebook with both an IC735 and IC706MkIIG.
No problems have been experienced even at 19200 baud with the IC706, so I would
definitely recommend this simple interface. If a PTT function is
required from the COM port, use pin 7 (RTS) to provide this function.
By G3VGR http://www.qsl.net/g3vgr/civ.html
remark by I1KFH
This
interface is very good. I used them with many computers and I didn’t have
problem! I use this interface only with IC-R10 Icom scanner.
|
