ANTENNA EH 160 mt

The First Prototype (2)

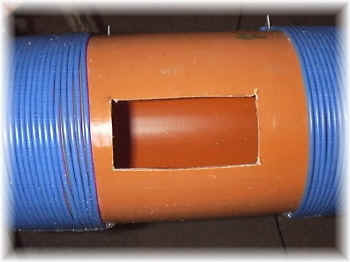

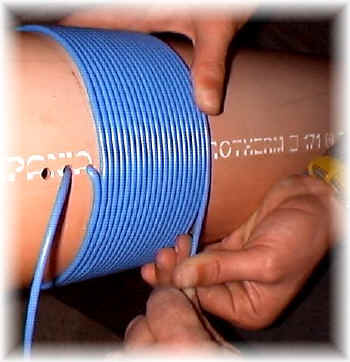

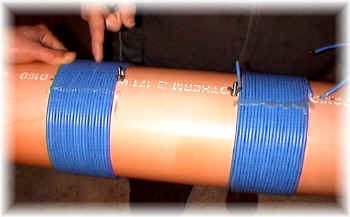

At this point the antenna is ready, we need to made the network; in the first prototype I've used a 160mm PVC pipe (3 mt lenght) used also as support; on the upper side turn L2

then L1 using a 4mm wire; fix it with hot glue.

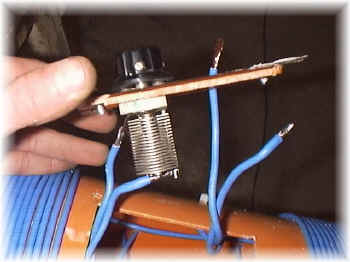

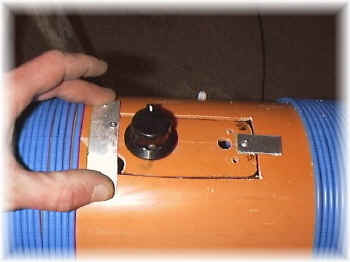

Let's make capacitor; in the first prototype I've used commercial variable capacitor as you can see in the picture.

Continue >>>>>

73 de iz7ath, Talino Tribuzio
