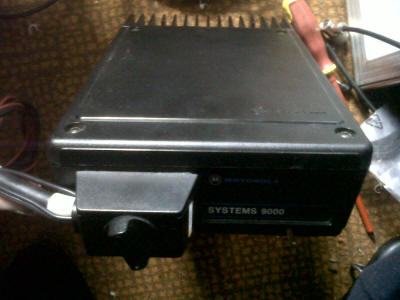

Motorola SYNTOR X9000 VHF

140 MHz - 170 MHz
100 watt
FM

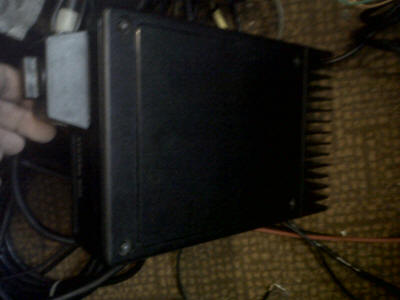

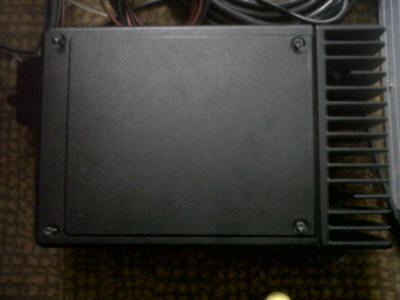

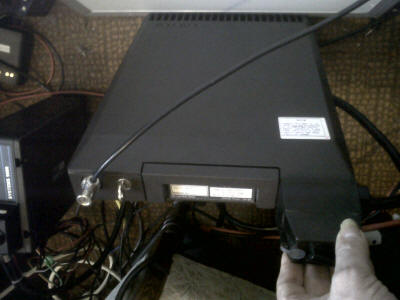

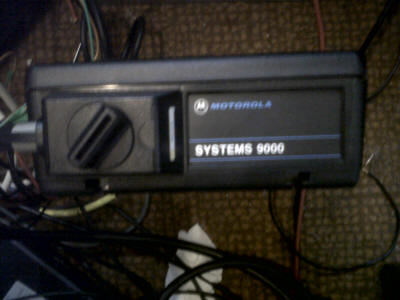

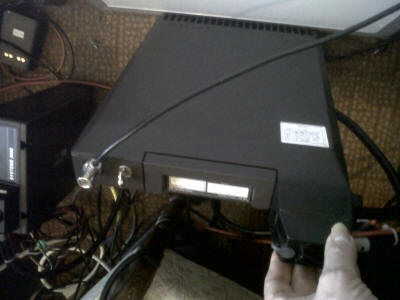

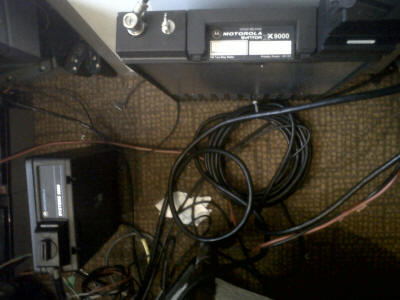

Boot mounted set complete with siren box attachment.

Appears to be programmed for Scottish Police or Fire channels, date approximately 1993 / 1994

There are 32 modes or channels with 23 in use as below.

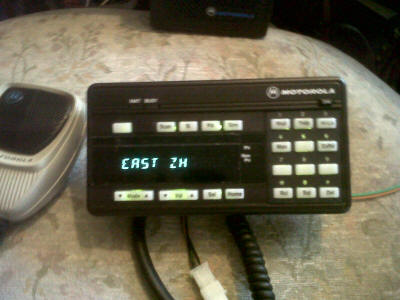

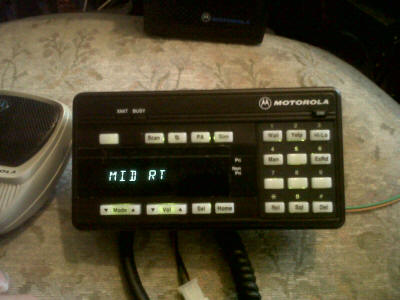

Mode Text Frequency
1 MID RT 150.850 Mhz   SIMPLEX
2 EAST RT 151.950 MHz TX 155.250 MHz RX

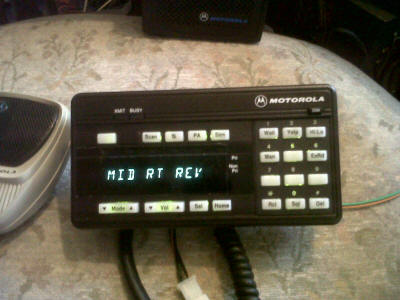

3 MID RT REV 151.350 MHz   SIMPLEX
4 N/T EDIN ZH 152.450 MHz
5 WEST ZH 153.550 MHz
6 EAST ZH 154.650 MHz

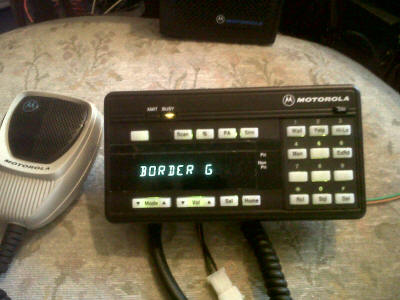

7 BORDER G 164.750 MHz
8 BORDER V 170.850 MHz

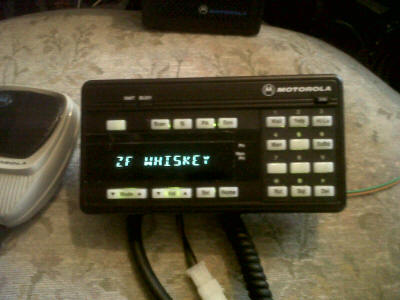

9 ZF WHISKEY 150.950 MHz

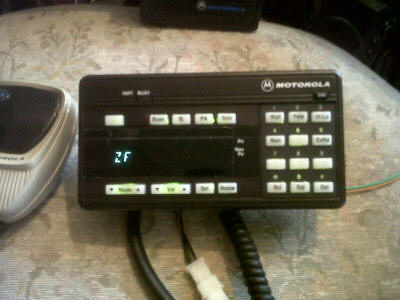

10 ZF 151.050 MHz TX 155.350 MHz RX

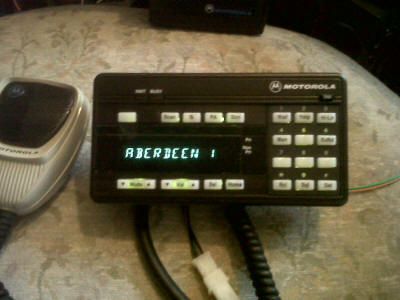

11 ABERDEEN 1 151.450 MHz
12 ABERDEEN 2 152.550 MHz

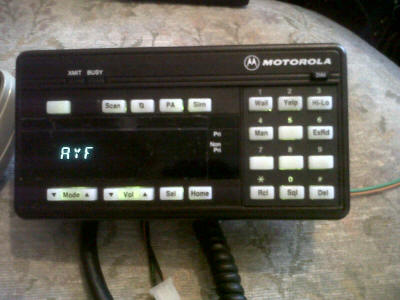

13 AYF 153.650 MHz

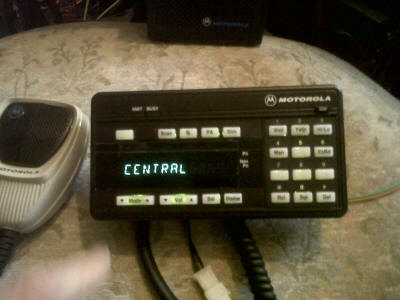

14 CENTRAL 154.750 MHz

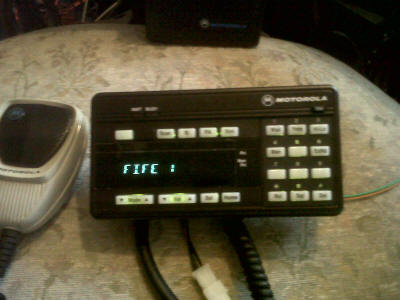

15 FIFE 1 164.850 MHz
16 FIFE 2 170.950 MHz

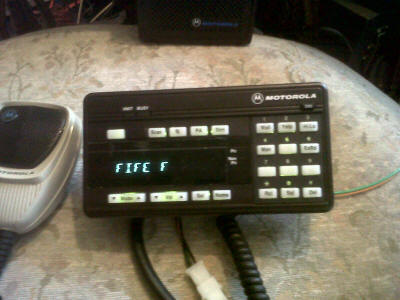

17 FIFE F 151.050 MHz

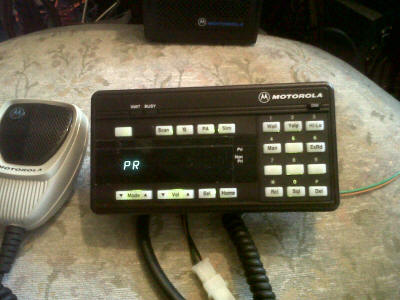

18 PR 151.150 MHz TX 155.450 MHz RX
19 TANGO WEST 151.550 MHz
20 GLASGOW 1 152.650 MHz
21 DUMFRIES 153.850 MHz
22 GLASGOW F1 154.850 MHz

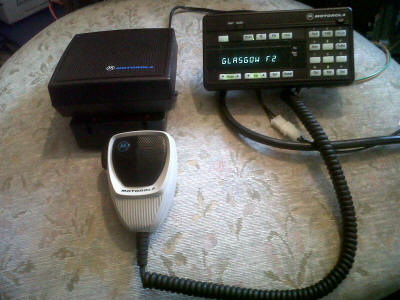

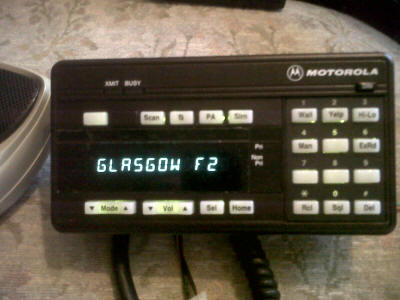

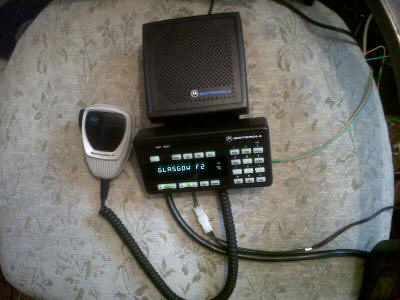

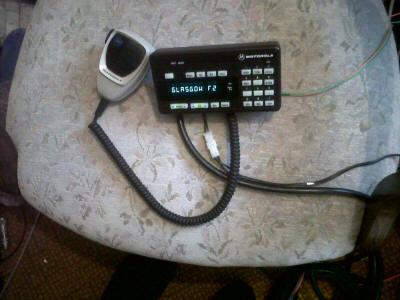

23 GLASGOW F2 164.950 MHz

All Simplex except the three channels as above.

100 watt output with no CTCSS tone set

No voting channels.

Anyone have any ideas what this odd combination of channels was used for and by whom?

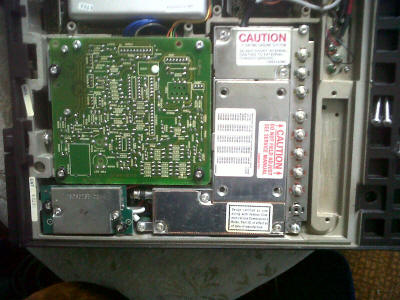

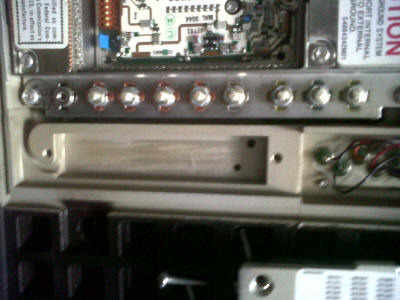

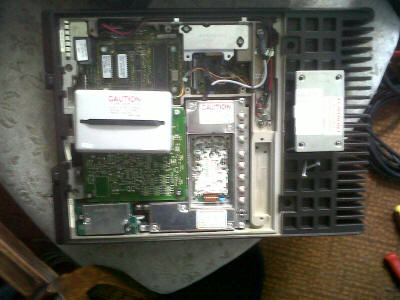

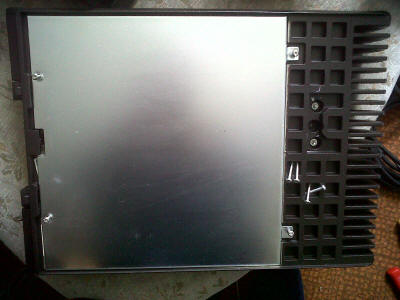

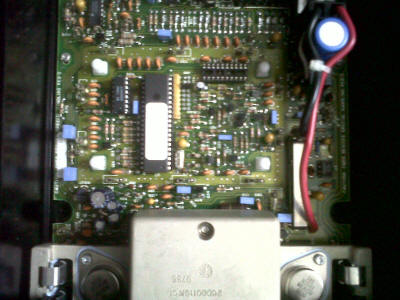

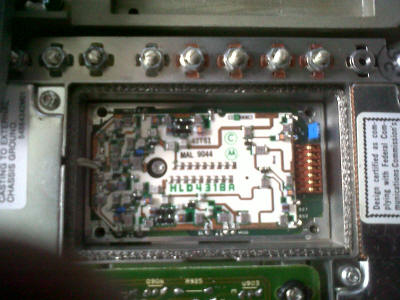

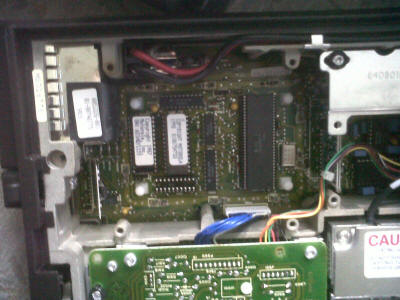

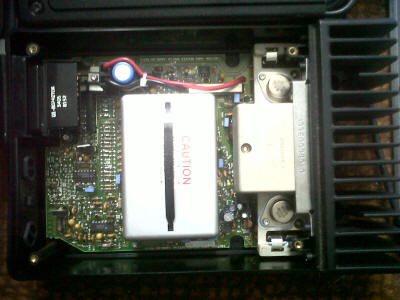

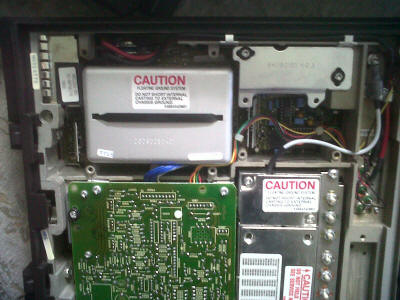

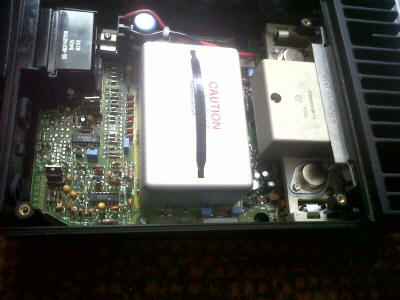

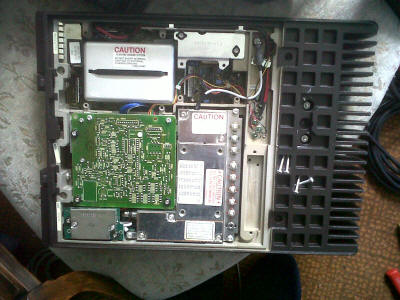

Internal views
