7.1.3.1 General

This subclause provides the definition of the SRF AE procedures related to the SRF-SCF interface. The procedures are based on the use of SS No. 7; other signalling systems may also be used.
Other capabilities may be supported in an implementation-dependent manner in the IP, SSP or SN.
The AE, following the architecture defined in ITU-T Recommendations Q.700 [9] and Q.1400 [13], and ETS 300 287 [11] (ITU-T Recommendation Q.771), includes TCAP and one or more ASEs called TC-users. The following subclauses define the TC-user ASE and SACF/MACF rules, which interface with TCAP using the primitives specified in ETS 300 287 [11] (ITU-T Recommendation Q.771).
The procedure may equally be used with other message based signalling systems supporting the Application Layer structures defined.
In case interpretations for the AE procedures defined in the following differ from detailed procedures and the rules for using of TCAP service, the statements and rules contained in the detailed subclauses 3.3 and 3.4 shall be followed.

7.1.3.2 Model and Interfaces

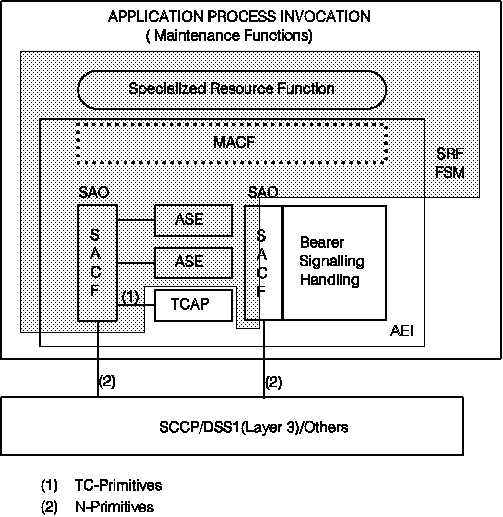

The functional model of the AE-SRF is shown in figure 22; the ASEs interface to TCAP (to communicate with the SCF) as well as interface to the maintenance functions. The scope of this ETS is limited to the shaded area in figure 22.

NOTE:
The SRF FSM includes several Finite State Machines.

Figure 22: Functional Model of SRF AE
The interfaces shown in figure 22 use the TC-user ASE primitives specified in ETS 300 287 [11] (ITU-T Recommendation Q.771) (interface (1)) and N-primitives specified in ETS 300 009 [2] (ITU-T Recommendation Q.711) (interface (2)). The operations and parameters of INAP are defined in Clause 6 of this ETS.

7.1.3.3 Relationship between the SRF FSM and Maintenance Functions/Bearer Connection Handling

The primitive interface between the SRF FSM and the maintenance functions is an internal interface and is not subject for Standardization in CS1.
The relationship between the Bearer Connection Handling and the SRF FSM may be described as follows for the case of a call initiated by the SSF: When a call attempt is initiated by the SSF, an instance of an SRF FSM is created.
The SRF FSM handles the interaction with the SCF FSM and the SSF FSM.
The management functions related to the execution of operation received from the SCF are executed by the SRF Management Entity (SRME). The SRME interface the different SRF Call State Models (SRSMs) and the FEAM. Figure 23 shows the SRF FSM structure.

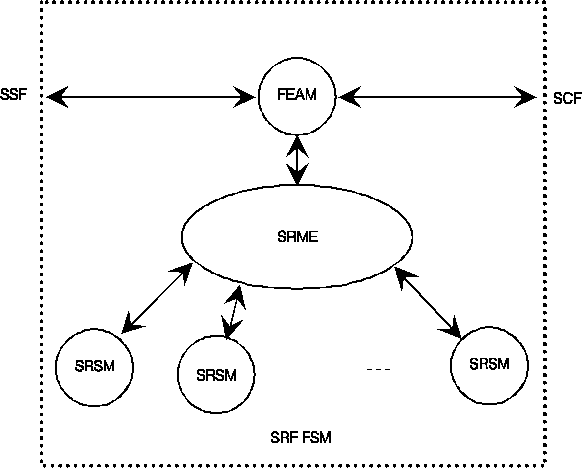

Figure 23: SRF FSM Structure
The model associates a FSM with each initial interaction request from the SCF. Thus, multiple initial requests may be executed concurrently and asynchronously by the SRF, which explains the need for a single entity that performs the tasks of creation, invocation, and maintenance of the SRSM objects. This entity is called the SRF Managing Entity (SRME). In addition to the above tasks, the SRME maintains the dialogues with the SCF and SSF on behalf of all instances of the SRSM. In particular, the SRME:

  1. interprets the input messages from other FEs and translates them into corresponding SRSM events;
  2. translates the SRSM outputs into corresponding messages to other FEs; and
  3. handles the activity test functionality for the SCF-SRF relationship.

Finally, the FEAM relieves the SRME of low-level interface functions. The FEAM functions include:

  1. establishing and maintaining the interfaces to the SSF and SCF;
  2. passing (and queueing when necessary) the messages received from the SSF and SCF to the SRME; and
  3. formatting, queueing (when necessary), and sending messages received from the SRME to the SSF and SCF.

7.1.3.4 The SRF Call State Model (SRSM)

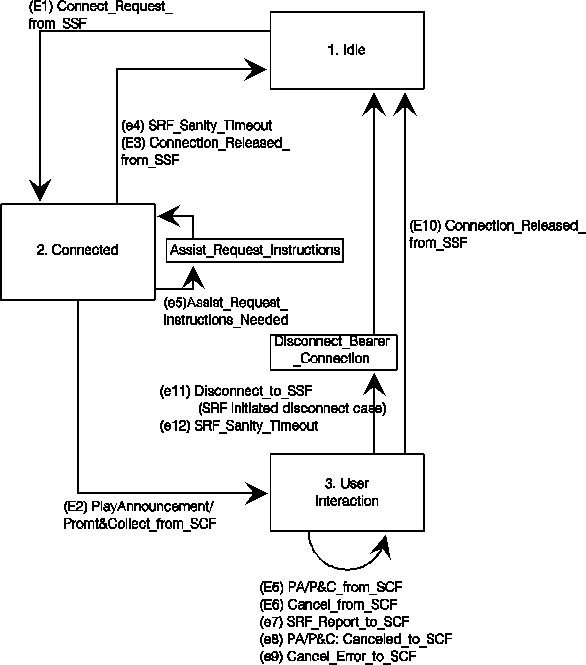

The SRSM is presented in figure 24. In what follows, each state is described in a separate subclause together with the events that cause a transition out of this state. Finally, the outputs are presented within smaller rectangles than the states are; unlike the states and events, the outputs are not enumerated.
Each state is discussed in the following subclauses. General rules applicable to more than one state are addressed here.
One component or a sequence of components received in one or more TCAP messages may include a single operation or multiple operations, and it is processed as follows:

In any state, if there is an error in a received operation, the maintenance functions are informed. Generally, the SRSM remains in the same state in which it received the erroneous operations, however different error treatment is possible in specific cases as described in subclause 7.2; depending on the class of the operation, the error could be reported by the SRF to the SCF using the appropriate component (see ETS 300 287 [11] (ITU-T Recommendation Q.774)).
In any state, if the dialogue with the SCF (direct SCF-SRF case) is terminated, then the SRSM returns to Idle state after ensuring that all resources allocated to the dialogue have been de-allocated.
The SRF shall remain connected to the SSF as long as it has PA operations active or buffered. The resources allocated to the call will be de-allocated when all announcements are completed or when the SSF disconnects the bearer connection (i.e. call party release).
In any State (except Idle), if the SSF disconnects the bearer connection to the SRF before the SRF completes the user interaction, then the SRSM clears the call and ensures that all SRF resources allocated to the call have been de-allocated. Then it transits to the Idle state.
The SRSM has an application timer, TSRF, whose purpose is to prevent excessive call suspension time. This timer is set when the SRF sends Setup Response bearer message to the SSF (SSF relay case) or the Assist Request Instructions operation (Direct SCF-SRF case). This timer is stopped when a request is received from the SCF. The SRF may reset TSRF on transmission of the Specialized Resource Report operation or the Return Result for the Prompt and Collect User Information operation when there is no queued User Interaction operation. On the expiration of TSRF, the SRSM transits to the Idle state ensuring that all SRF resources allocated to the call have been de-allocated.

Figure 24: SRSM

7.1.3.4.1 State 1: "Idle"

The Idle state represents the condition prior to, or at the completion of, an instance of user interaction. This state is entered as a result of events E3, e4, E10, e11 and e12. It is exited as a result of event E1.

7.1.3.4.2 State 2:"Connected"

This state represents the condition of the SRSM when a bearer channel has been established between a user and the SRF but the initial PA/P&C has not yet been received (e.g. when Establish Temporary Connection procedures are used). The method used to provide this bearer channel is not of interest in the FSM.

7.1.3.4.3 State 3: "User Interaction"

The User Interaction state indicates that communication is occurring between the user and the SRF via the bearer channel established at the Connected state. This state is entered as a result of event E2. It is exited as a result of events E10, e11 and e12. Events E5, E6, e7, e8 and e9 do not cause a state change. Event E5 also represents additional PA/P&C operations which are buffered as discussed in the procedures.

In addition to these explicitly marked transitions, failure of a user-SRF bearer connection will cause the SRSM to transit to Idle from any state. These transitions are not shown in figure 24 for the purpose of visual clarity.

7.1.3.5 Example SRF Control Procedures

This subclause provides a detailed description of the SRF procedures. Arrow diagrams are used for the description of the connect, interaction with the end user, and disconnect stages.
The SRF control procedures are based on various physical allocation patterns of SRF. The various control procedures are described in this subclause in accordance with the example physical scenarios of protocol architecture in subclause 4.1.
The Service Assist and Hand-off procedures based on the physical scenarios are also described in this subclause as examples.

NOTE:
Through this subclause, bearer connection control signalling messages are used for explanatory purposes, and are not subject for standardization. The terms used for bearer connection control signalling messages only represent the functional meaning.
7.1.3.5.1 SRF Connect Procedures
7.1.3.5.1.1 SRF Connect Physical Procedures

Several procedures are required for different physical scenarios. The cases to be covered are described below and illustrated in figure 25:

  1. the IP is integrated into the SSP, or directly attached to the SSP that is interacting with the SCP but the operations of the SCP to the IP are relayed via the SSP which performs any needed protocol conversion;
  2. the IP is directly attached to the SSP that is interacting with the SCP but the operations of the SCP to the IP are sent directly to the IP without SSP relaying involved;
  3. the IP is integrated into another SSP, or directly attached to another SSP, than the one that is interacting with the SCP but the operations of the SCP to the IP are relayed via the second SSP (called the "Assist" method), and on completion of the user interaction, control is returned to the first SSP;
  4. the IP is directly attached to another node than the SSP that is interacting with the SCP but the operations of the SCP to the IP are sent directly to the IP without SSP relaying involved (called the "Assist" method, but with a variation on the physical connectivity of the entities involved), and on completion of the user interaction, control is returned to the first SSP; and
  5. the IP is attached to another SSP and on completion of the user interaction, control of the call is retained at that SSP (called the "Hand-off" approach).

Figure 25: Physical scenarios
In each of the above cases, the operations between the SCP and the SSP may be SS No. 7 TCAP-based; the messaging between the SSP and the IP when the SSP does relaying may be DSS1 using the Facility IE (in this case, the SSP would have to do protocol conversion from SS No. 7 TCAP to DSS1 Facility IE for the operations and responses it relayed between the SCP and the IP); the direct messaging between the SCP and the IP may be SS No. 7 TCAP based; and bearer control signalling may be any system.
Each of the scenarios will now be examined using arrow diagrams.
Case i) is illustrated in figure 26. Note that for the integrated IP/SSP, the internal activities of the node can still be modelled in this way, but the details of how this is achieved are left to the implementor. This approach makes it unnecessary for the SCP to distinguish between integrated and external but directly connected IPs. See also a note on the possibility of concatenating the first user interaction operation with the Connect to Resource operation discussed in the subclause on user interaction below. The establishment of the SCF-SRF relationship in this case is implicit.

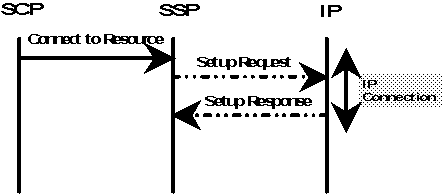

Figure 26: Connection to integrated or external IP with SSP relay of IP operations
Case ii) requires that the IP indicate to the SCP that it is ready to receive operations. The establishment of the SCF-SRF relationship is explicit. Note that it is necessary to convey a Correlation ID to ensure that the transaction established between the SCP and the IP can be correlated to the bearer connection setup as a result of the preceding operation of the SCP to the SSP.

Figure 27: Connection to IP with Direct Link to SCP, IP Initiates Interaction with SCP
Case iii) requires that a transaction be opened with the Assisting SSP so that it may relay operations from the SCP to the IP (integrated or external). Once the bearer control signalling has reached the assisting SSP, it triggers on the identity of the called facility, and initiates an interaction with the SCP that has requested the assistance (it would also be possible to trigger on other IEs such as the incoming address). The bearer control signalling shall contain information to identify the SCP requesting the assistance, and a Correlation ID. This information may be hidden in the address information in such a way that non-message based signalling systems may also be used to establish the bearer connection to the assisting SSP. After the Assist Request Instructions is received by the SCP, the procedures are the same as case i. Figure 28 illustrates the preamble involved.

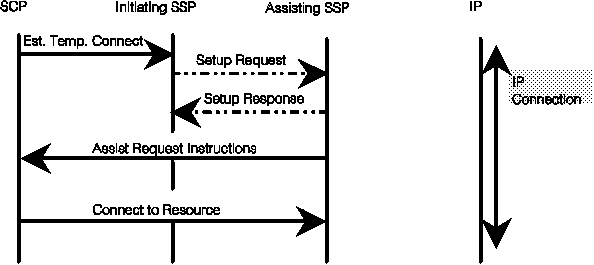

Figure 28: Preamble for Assist Case with integrated IP or external IP and SSP relay of SCP-IP messages
Case iv) does not require the establishment of a second transaction from the assisting exchange, hence it need not be an SSP. This then becomes a preamble to the procedure shown in figure 27 as shown in figure 29.

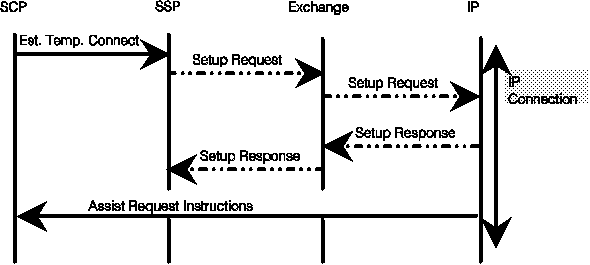

Figure 29: Preamble for Assist Case with external IP and direct SCP-IP messaging
Case v) merely requires the sending of an operation to the first SSP to route the call to the handed-off SSP, and then figure 26 applies at handed-off SSP. This is shown in figure 30. Note that the activity at handed-off SSP represents a new interaction with the SCP and "Assist Request Instructions" is used. Once the bearer control signalling has reached the assisting SSP, it triggers on the identity of the called facility, and initiates an interaction with the SCP that has requested the assistance (it would also be possible to trigger on other IEs such as the incoming address). The bearer control signalling shall contain information to identify the SCP requesting the assistance, and a Correlation ID. This information may be hidden in the address information in such a way that non-message based signalling systems may also be used to establish the bearer connection to the assisting SSP.

Figure 30: Preamble for Hand-off Case

7.1.3.5.2 SRF End User Interaction Procedures

The End User Interaction procedures allow:

7.1.3.5.2.1 Play Announcement/Prompt and Collect User Information (PA/P&C)

There are only two physical scenarios for user interaction:

  1. the SSP relays the operations from the SCP to the IP and the responses from the IP to the SCP (SSF relay case); and
  2. the operations from the SCP to the IP and the responses from the IP are sent directly between the SCP and the IP without involving the SSP (Direct SCF-SRF case).

Case i) is illustrated in figure 31 below.

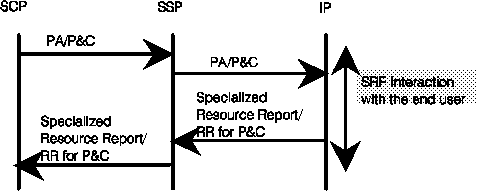

Figure 31: SSP Relay of User Interaction Operations and Responses

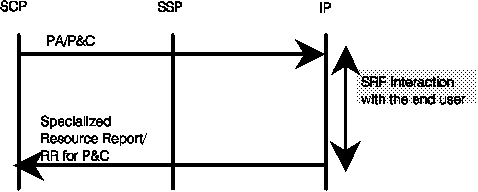

Case ii) is illustrated in figure 32 below.

Figure 32: Direct SCF-SRF of User Interaction Operations and Responses

It is also necessary to consider the capability of SS No. 7 TCAP to concatenate several Invoke PDUs in one message. This capability allows, for the scenario in figure 26, the Connect to Resource and the first PA/P&C to be carried in one message. This has some advantages in this physical scenario, such as reduced numbers of messages, and possibly better end-user perceived performance.

7.1.3.5.3 SRF Disconnection Procedures

The disconnection procedures are controlled by the SCF and the procedure used is selected based on the needs of the service being executed. The bearer disconnection procedure selected by the SCF is to either allow the SRF to disconnect on completion of user interaction, or to have the SCF explicitly order the SSF to disconnect.
SRF disconnect does not cause disconnection by the SSF/CCF back to the end user terminal unless the transaction with the SCF has been terminated, indicating the user interaction completed the call. The SSF/CCF recognizes that a connection to an SRF is involved because the operations from the SCF for this purpose are distinct from the operations that would be used to route the call towards a destination. There is no impact on bearer signalling state machines as a result of this since incoming and outgoing bearer signalling events are not simply transferred to each other, but rather are absorbed in call processing, and regenerated as needed by call processing. Therefore, to achieve the desired functionality, call processing need simply choose not to regenerate the disconnect in the backward direction. Figure 33 illustrates this concept.

Figure 33: Relationship of Incoming and Outgoing Signalling Systems to Call Processing

As for the SRF connection procedures, the SRF disconnection is affected by the physical network configuration.
In order to simplify the interface between the SCF and the SRF, a number of assumptions are made. The assumptions, and the resulting rules, result in unambiguous procedures from both the SCF and the SRF points of view. The rules, presented below, refer to the SRF originated disconnect, or "SRF Initiated Disconnect", and to the SCF originated disconnect, or "SCF Initiated Disconnect". While other scenarios are possible, they are not included because they either duplicate the functionality presented below or they otherwise do not add value from a service perspective:

  1. if a series of PA/P&C operations are to be executed by the same SRF, then SRF disconnect is inhibited for all but the last and may be inhibited on the last PA/P&C. When a subsequent PA/P&C is received, it is buffered until the completion of any preceding PA/P&C;
  2. a generic Cancel operation terminates the indicated PA/P&C if it is being executed by the SRF, but does not disconnect the SRF. If the Cancel operation is for a buffered PA/P&C, that PA/P&C is discarded, but the current and any buffered PA/P&Cs are executed. An SRF interacts with one user only and therefore cancelling a PA/P&C only affects the user to which the SRF is connected;
  3. the SCF shall either explicitly order "Disconnect" or enable SRF initiated disconnect at the end of the PA/P&C. An SRF left connected without a PA/P&C to execute may autonomously disconnect if it has not received any PA/P&C operations within a defined time limit (this could occur, for example, after an Establish Temporary Connection which is not followed within a reasonable time period by a PA/P&C operation). This sanity timing value will depend on the nature of the interaction the SRF supports and should be selected by the network operator accordingly;
  4. when SRF initiated disconnect is enabled in a PA/P&C, then the SRF shall disconnect on completion of the user interaction;
  5. when SRF initiated disconnect is not enabled, the SCF shall ask the SRF to inform it of the completion of the User Interaction using the Specialized Resource Report operation for "announcement complete" or using the Return Result for the Prompt and Collect User Information operation;
  6. if the user disconnects, the SRF is disconnected and the SSF releases resources and handles the transaction between the SSF and the SCF as specified in ITU-T Recommendation Q.1214 [11] and in this ETS. The SRF discards any buffered operations and returns its resources to idle. The relationship with the SCF is terminated;
  7. When the SCF explicitly orders the SSF to disconnect by "Disconnect Forward Connection" operation, the SSF releases the bearer connection to the SRF, and returns to the "Waiting for Instructions" state. No operation reporting SRF disconnect from the SSF to the SCF is required.
7.1.3.5.3.1 SRF Initiated Disconnect

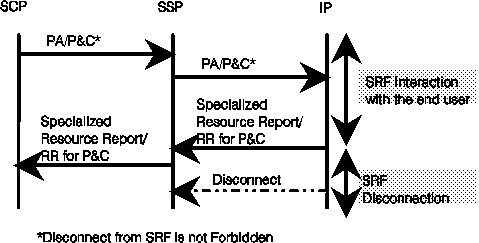

The SRF disconnect procedure is illustrated in figure 34. The SRF disconnect is enabled by the SCF within a PA/P&C operation. When the SRF receives a PA/P&C enabling disconnection, it completes the dialogue as instructed by the PA/P&C, and then initiates the SRF initiated disconnection using the applicable bearer control signalling. The SSF/CCF knows that it is an SRF disconnecting and does not continue clearing the call toward the end user. The SSF returns to the "Waiting for Instructions" state and executes any buffered operations. In the Hand-off case, the SSP shown in figure 34 is the "handed-off" SSP.
For the Assisting SSF case, the SRF initiated disconnect procedures are not used because the Assisting SSF remains in the "Waiting for Instructions" state and does not propagate the disconnection of the bearer connection to the Initiating SSF. The SCF initiated disconnect procedures described in the following subclause are used for the Assisting SSF case.
For the Direct SCF-SRF case, the procedures also work in the same manner. The SRF disconnect is enabled by the SCF within a PA/P&C operation. When the SRF receives a PA/P&C enabling disconnection, it completes the dialog as instructed by the PA/P&C, and then initiates the SRF initiated disconnection using the applicable bearer control signalling. The Initiating SSF/CCF knows that it is an SRF disconnecting and does not continue clearing the call toward the end user. The Initiating SSF returns to the "Waiting for Instructions" state and executes any buffered operations.

Figure 34: SCF Disconnect for Local, Embedded and Hand-off Scenarios

7.1.3.5.3.2 SCF Initiated Disconnect

The SCF initiated disconnect procedure is illustrated in figure 35 (bearer messages are shown with dotted lines). The figure shows only the Assisting SSF case, and the Direct SCF-SRF case is not shown. To initiate the SCF initiated disconnection of the SRF, the SCF shall request and receive a reply to the last PA/P&C operation requested. The Specialized Resource Report operation contains an "announcement complete" and Return Result for P&C contains "collected information."
The SCF initiated disconnect uses an operation called Disconnect Forward Connection. Once the Disconnect Forward Connection operation is received by the SSF, it will initiate a "release of bearer channel connection" between the PEs containing the SSF and SRF, using applicable bearer control signalling. Since the SCF (which initiates the disconnect), the SSF (which instructs bearer signalling to disconnect) and the SRF (which receives disconnect notification via bearer signalling) are aware that disconnect is occurring, they are synchronized. Therefore, a "pre-arranged" end may be used to close the transaction. This does not preclude the use of explicit end messages for this purpose.
For Assisting SSF case, the initiating SSP, on receipt of the Disconnect Forward Connection from the SCP, disconnects forward to the assisting SSP, and this disconnection is propagated to the IP. The initiating SSP, knowing that the forward connection was initiated as the result of an Establish Temporary Connection, does not disconnect back to the user but returns to the "Waiting for Instructions" state.

Figure 35: SCF Initiated Disconnect for Assist Scenario

7.1.3.5.4 Examples Illustrating Complete User Interaction Sequences

The following figures and their accompanying tables provide examples of complete sequences of user interaction operations covering the three stages:

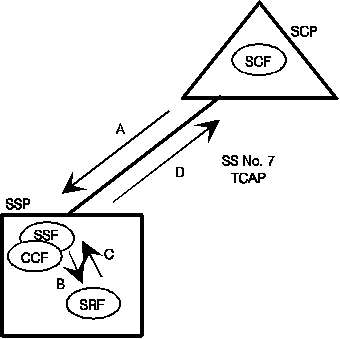

Figure 36: SSP with integrated SRF
In figure 36 above, the SSP with an integrated (or embedded) SRF, the procedural scenarios can be mapped as given in table 4.

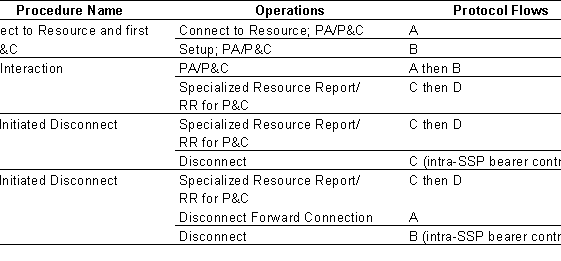

Table 4
A simple extension to this integrated case is the configuration where the SRF is located in an Intelligent Peripheral locally attached to the SSP. The SCP-IP operations are relayed via the SSF in the SSP. This is depicted in figure 37.

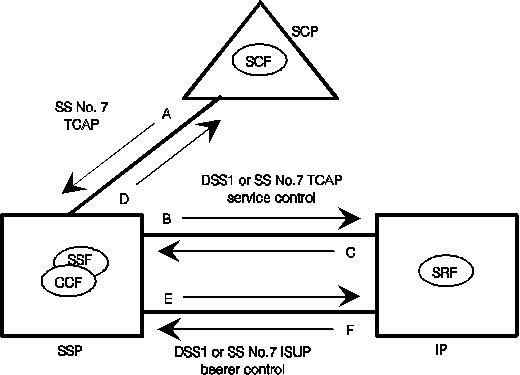

Figure 37: SSP Relays Messages Between SCP and IP
The procedural scenarios for this Relay SSF with an IP (figure 37) can be mapped as shown in table 5.

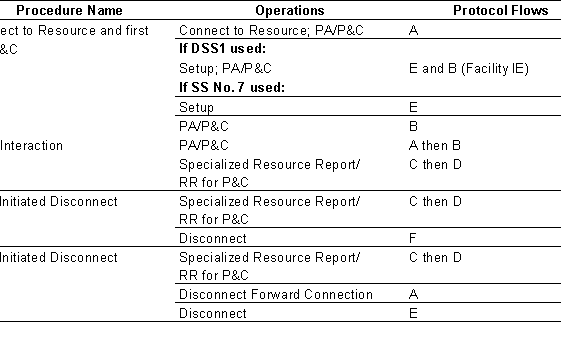

Table 5
In some cases, the IP may have an SS No. 7 or other interface to the controlling SCP. This case is shown in figure 38. Note that the SCP shall correlate two transactions to coordinate the activities.

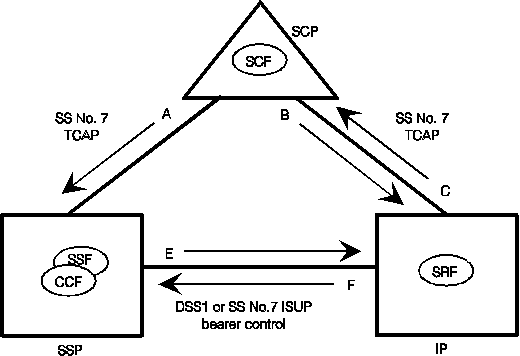

Figure 38: Direct SCP-IP Information Transfer
In figure 38, the procedural scenarios can be mapped as shown in table 6.

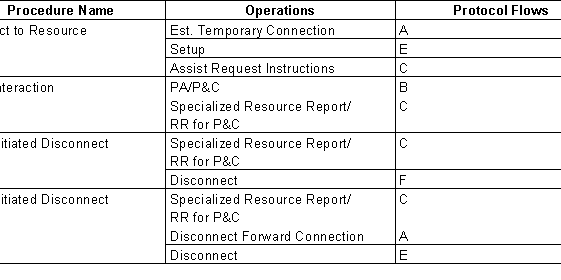

Table 6
The Assisting SSF scenario involves straightforward procedural extensions to the basic cases shown above. One mapping of the assisting SSF case is shown in figure 39. In this case, SRF initiated disconnect cannot be used. Other physical mappings can be derived as described in the text following the figure and its accompanying table.
Note that the integrated SRF and SSF relay case requires a transaction between the SCP and the assisting SSP (figure 39) but the SCP direct case does not since the transaction is directly between the SCP and the IP connected to the remote exchange. In the latter case, any transit exchanges, including the one the IP (SRF) is connected to, are transparent to the procedures.
Note also that the SCP shall again correlate two transactions.

Figure 39: SSP Assist/Hand-off (Relay SSP)
In figure 39, the procedural scenarios can be mapped as shown in table 7.

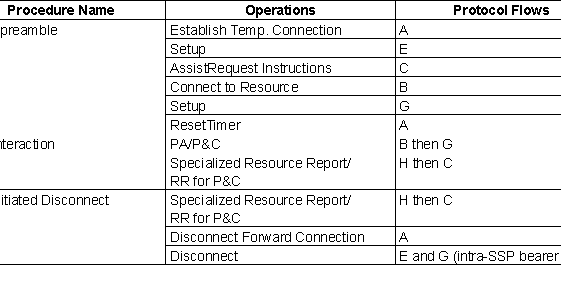

Table 7
Note that the Assisting SSP case shown in figure 39 can be generalized to cover both the case where the SRF is embedded in Assisting SSP (as shown), and the case where the SRF is locally connected to Assisting SSP. In this latter case, the SRF communication (protocol flows B, C, G, and H) would conform to the physical scenario shown in figure 37.
The service hand-off scenario can similarly be viewed as a sequence consisting of an IN service to route a call from one SSP to another, followed by any one of the previously described physical user interaction scenarios. For describing this scenario, figure 39 can be used also.

7.1.3.5.4.1 Message Sequences for Service Assist

The following subclause provides additional details on the message sequences for the service assist procedure in figure 39:

1)
The SCP, during the processing of a request for instruction, determines that resources remote from the initiating SSP are required and that call processing will continue from the initiating SSP after the remote resources have been used (e.g., the call will be completed to a destination address after information is collected from the calling party). An EstablishTemporaryConnection operation containing the address of the assisting SSP (for routing the call), the ScfID and the CorrelationID (both used for the assisting SSP to establish communication back to the SCP) is sent to the initiating SSP. EstablishTemporaryConnection is used instead of a regular Connect operation because of the nature of the connection to the assisting SSP. The initiating SSP shall be aware that the SCP will ask it to continue in the processing of the call at some point in the future.
NOTE:
The ScfID and CorrelationID may be included in the routing address of the assisting SSP.
Protocol Flow A
2)
The initiating SSP routes the call to the assisting SSP. The ScfID and CorrelationID are sent to the assisting SSP. Existing in-band signalling and SS No. 7 information elements (e.g. routing number) could be used to transport this information. The transport mechanism used to send this information between SSPs is independent of the service assist control procedures between the SCF and SSF.
Protocol Flow E
3)
The assisting SSP uses an AssistRequestInstructions operation to establish communication with the SCP. The CorrelationID is sent in the AssistRequestInstructions to allow the SCP to correlate two transactions.
Protocol Flow C
4)
The SCP sends instructions to the assisting SSP based on SL control.
Protocol Flow B
5)
The SCP may need to generate ResetTimer events to the initiating SSP so that it does not time out the call.
Protocol Flow A
6)
When resource functions have been completed, a DisconnectForwardConnection operation is sent to the initiating SSP. This indicates, that the temporary connection to the assisting SSP has to be disconnected.
Protocol Flow A
7)
The initiating SSP sends a message via bearer control signalling to the assisting SSP to close the "assist" transaction.
Protocol Flow E
8)
The call control returns to the initiating SSP.
7.1.3.5.4.2 Message Sequences for Hand-off

The following subclause outlines message sequences for the Hand-off procedure using the protocol flows shown in figure 39:

1)
The SCP, during the processing of a request for instruction, determines that resources remote from the initiating SSP are required and that call processing need not continue from the initiating SSP after the remote resources have been used (e.g. a terminating announcement will be played). A Connect operation containing the address of the assisting SSP (for routing the call), the ScfID and the CorrelationID (both used for the assisting SSP to establish communication back to the SCP) is sent to the initiating SSP.
NOTE:
The ScfID and CorrelationID may be included in the routing address of the assisting SSP.

Protocol Flow A
2)
The initiating SSP routes the call to the assisting SSP. The ScfID and CorrelationID are sent to the assisting SSP. Existing in-band signalling and SS No. 7 information elements (e.g. routing number) could be used to transport this information. The transport mechanism used to send this information between SSPs is independent of the service assist control procedures between the SCF and SSF.
Protocol Flow E
3)
The assisting SSP uses an AssistRequestInstructions operation to establish communication with the SCP. The CorrelationID is sent in the AssistRequestInstructions to allow the SCP to correlate two transactions. AssistRequestInstructions is used instead of a regular request instruction (InitialDP) because the SCP shall associate the AssistRequestInstructions from the assisting SSP/IP with an already active dialog the SCP has with another SSP.
Protocol Flow C
4)
The SCP sends instructions to the assisting SSP based on SL control.
Protocol Flow B
5)
The call control remains at the assisting SSP.

The same service assist and hand-off procedures can be reused for a direct link to an IP in this and future capability sets.
