Tait T800 series base stations
The Tait T800 series of equipment comes in several forms, VHF low band FM, VHF high band FM, and UHF FM.
The original T800 series 1 unit configurable with upto 128 channels on EPROM, one in the transmitter and one in the receiver, and the later series 2 again 128 channels but programmed by plugging a laptop with software into the control port.
|
|
Tait T800 equipment mounted in the standard 19" rack mounting sub rack. Often used when where protected systems are deployed i.e. two transmitters, two receivers, two PSU's, and controller.
|
|
|

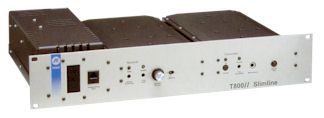

Tait T800 slimline, 3VU 19" rack mounted base station Simply one transmitter, one receiver, and one PSU, all mounted on a 3VU 19" rack mounting panel.
|
|
|
Tait T800 portable. A stand alone portable base station, one transmitter, one receiver, one PSU, and integral battery pack.
|
