G4RUJ
POCSAG
Post Office Code Standardisation Advisory Group
Program to Download: PDW v3.12 (zip)
|

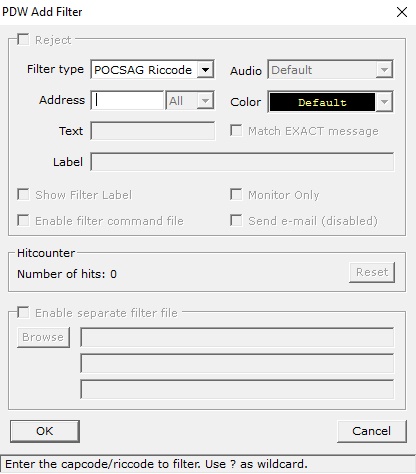

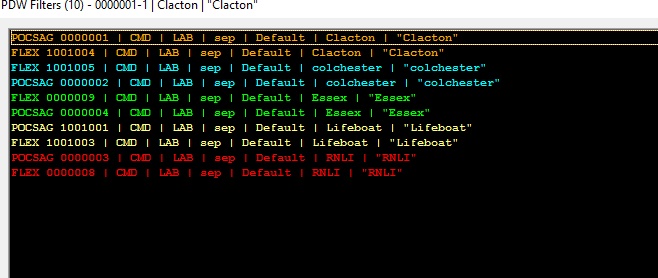

Change Filter type to POCSAG Riccode or Flex Capcode Add an address ie: 1001001 - 1001002 ect To change the colour of each filter in the colour drop down box In the Text and Label section put in the word that you want the profram to find Tick the Filter Label and Enable filter command file Click OK I have found that I need to run this program as an Administrator
|
||
Meter should show full scale when working
Screen shot of Pager information Data
Warning parts have been blanked out to protect privacy
153.350MHz WFM Filter 24KHzNorth POCSAG
153.026MHz WFM Filter 24KHz Flex-A
137.975MHz WFM Filter 24kHz POCSAG
131.725MHz AM 8KHz Filter ACARS Aircraft Data

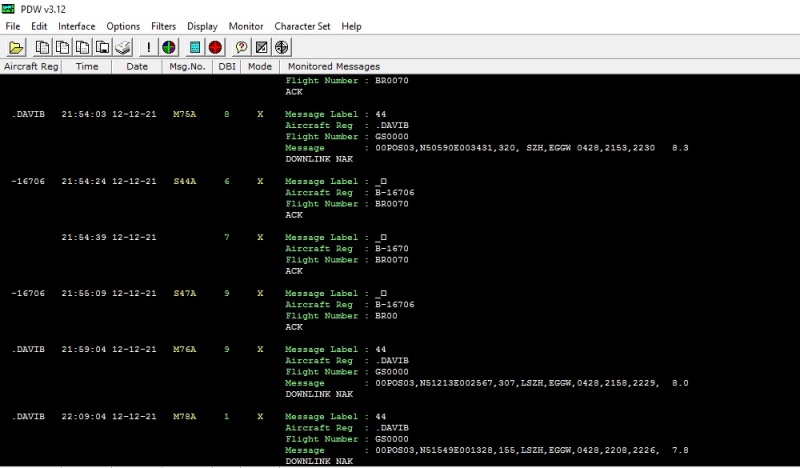

Screen shot of data from ACARS on 131.725MHz AM
More Information
There are two basic standards of messages transmitting — POCSAG
(Post Office Code Standardization Advisory Group) and
FLEX Both standards are pretty old, POCSAG was made at 1982,
it can support 512, 1200 and 2400 bit/s speed.
Page Updated 12/12/2021
