PSK /RTTY/ NAVTEX



RTTY is still popular and heard on the amateur radio bands on a very regular basis, especially at weekends and during contest periods. There are numerous software packages to choose from. But for me I think the truetty program takes a lot of beating and is the only one I use now. Multipsk again is very good. There are some links near the bottom of the page where you can go directly to the programmer’s site and make your own mind up.

W1AW still sends some of their bulletins using  RTTY / PSK / CW . There are  weather forecasts still sent using teletype from two German coast stations





FLDIGI is one of my favorite RTTY /PSK programmes - there is a version that  runs on a Raspberry Pi . Below is a screen shot of the windows version ( but the Raspberry Pi version looks the same)



FLDIGI









Above is a screen grab of FLDIGI



INSTALLING FLDIGI ON A RASPBERRY PI THE EASY WAY

The easiest way to install FLDIGI on a Raspberry Pi is thru the add/remove software function - just type 'FLDIGI' in the search box and follow the instructions







TRUETTY

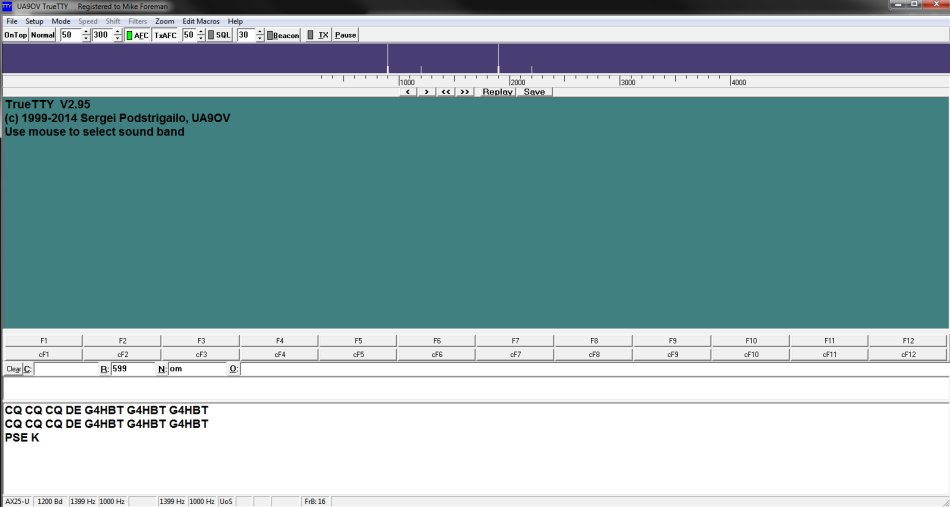

Above is a screen grab of TRUETTY



     To control your transmiiter tou will need an interface of some kind for ptt / audio out from the computer  to the tcvr microphone / audio into the computer sound card.  check my circuits page out  or you could buy a unit from the internet



TRUETTY only installs on windows platform





 MARINE TELETYPE AND NAVTEX



There are a few marine weather stations still sending weather / navigational reports using RTTY





Both FLDIGI and TRUTTY can be used to decode the RTTY sent by the above weather stations - LINPSK  ( Raspberry Pi only )  will not decode 50 bauds / 425 hz shift

It only decodes ham radio RTTY i.e 45 bauds / 170 hz shift - see the bottom of the page to down load  LINPSK







   for a list of current navtex stations and their operating times check here. the majority of tranmissionSsare on 490 khz (national )

or 518 khz ( international ) with some stations now utilising 4.209.6 mhz



Below is a screen shot  from Frisnit that decodes  navtex messages









LINPSK RTTY / PSK Decoder



LINPSK is for Raspberry Pi only -  its a pity there is no 50 baud / 425 hz shift

It can be installed through the add/remove programs in Raspberry pi OS
